- General Information
- Manufacturer
- Schneider Electric SA
- Manufacturer Website Address
- http://www.schneider-electric.com
- Brand Name
- APC by Schneider Electric

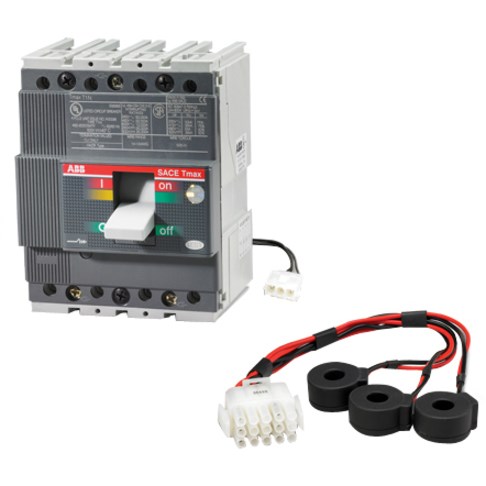

- Product Type
- Circuit Breaker
Breakers, Cordsets and Accessories for simplified power distribution management.
- Warranty
- Limited Warranty
- 1 Year
- Additional Warranty Information
- 1 year repair or replace
- Physical Characteristics
- Mounting Location
- Front
- Height
- 432 mm
- Width
- 559 mm
- Depth
- 546 mm
- Weight (Approximate)
- 1.82 kg
- Miscellaneous
- Package Contents
- Circuit Breaker
- Installation Guide
- Additional Information
Output:
- Maximum Total Current Draw per Phase: 60A
- Output Connections: 1 x Hard Wire 4-wire (3PH)
Input:
- Nominal Input Voltage: 400V 3PH, 480V 3PH
- Input Frequency: 50 Hz, 60 Hz
- Maximum Line Current per Phase: 60A
- Certifications & Standards
- CE|UL Listed
- Compatibility
APC Symmetra PX250/500kW UPS
- REACH Declaration URL
- https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=exportPdfReach&pid=65034777&lang=en-us
- Environmentally Friendly
- Yes
- Environmental Compliance
- Restriction of Hazardous Substances (RoHS)
