- General Information
- Manufacturer
- Schneider Electric SA
- Manufacturer Website Address
- http://www.schneider-electric.com
- Brand Name
- APC by Schneider Electric
- Marketing Information

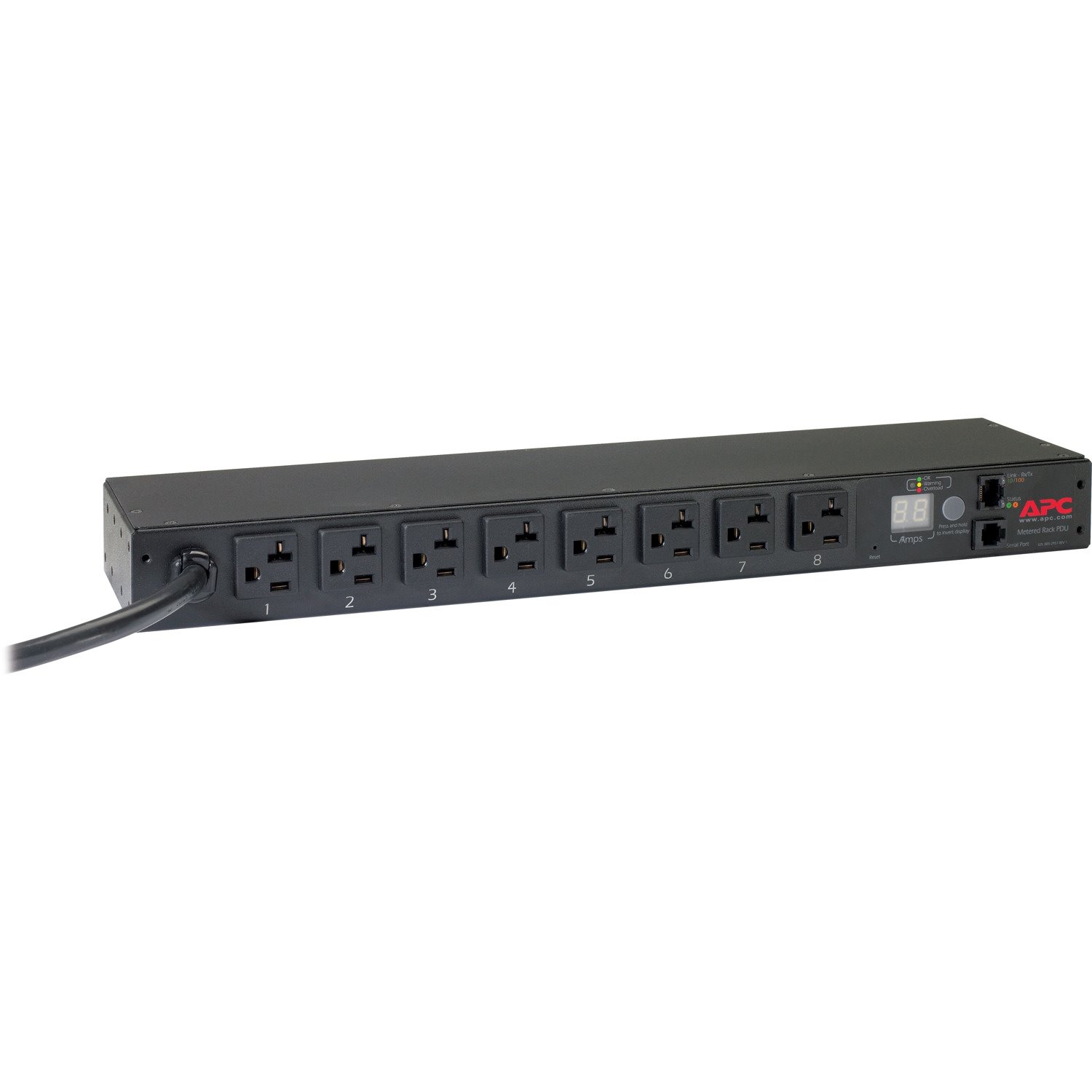

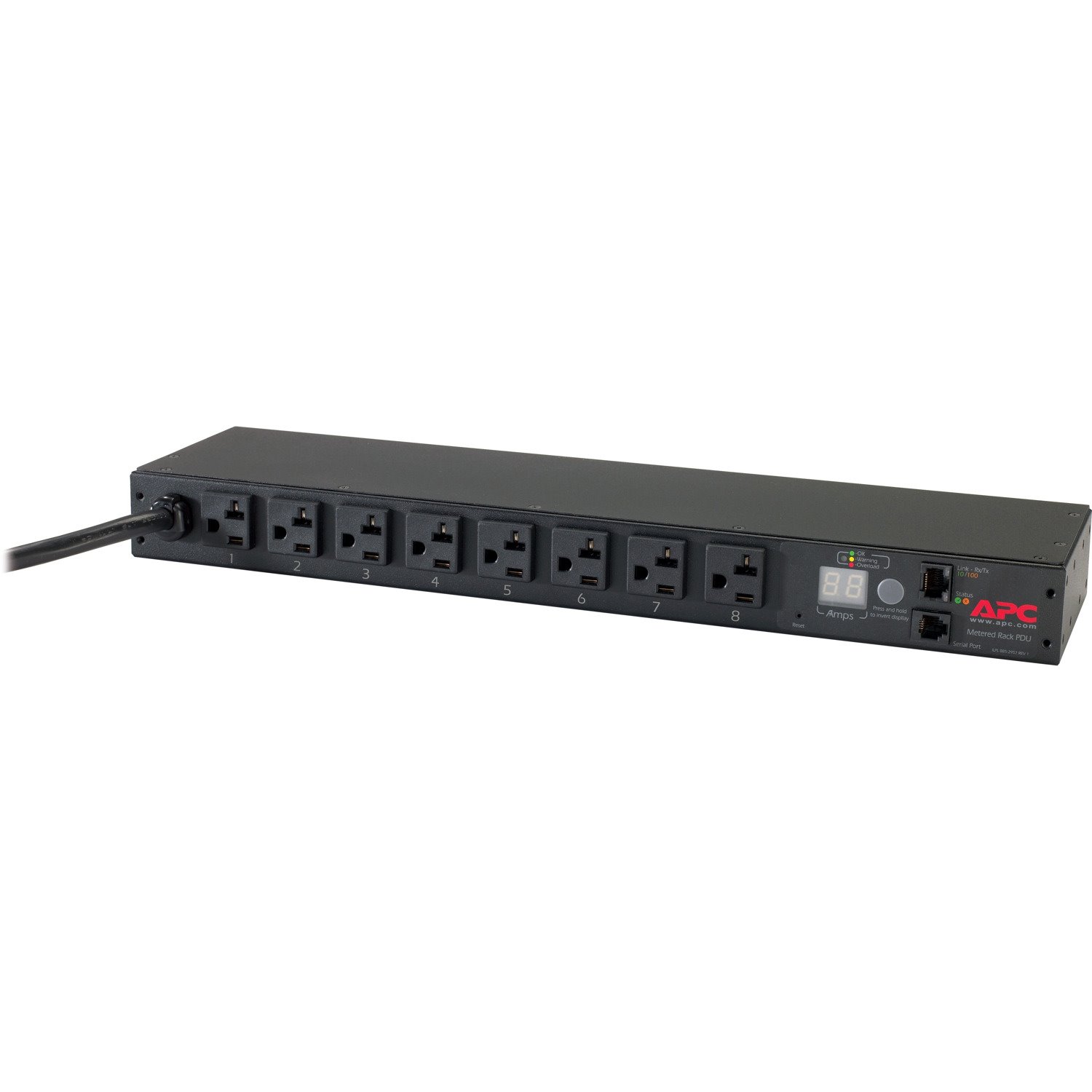

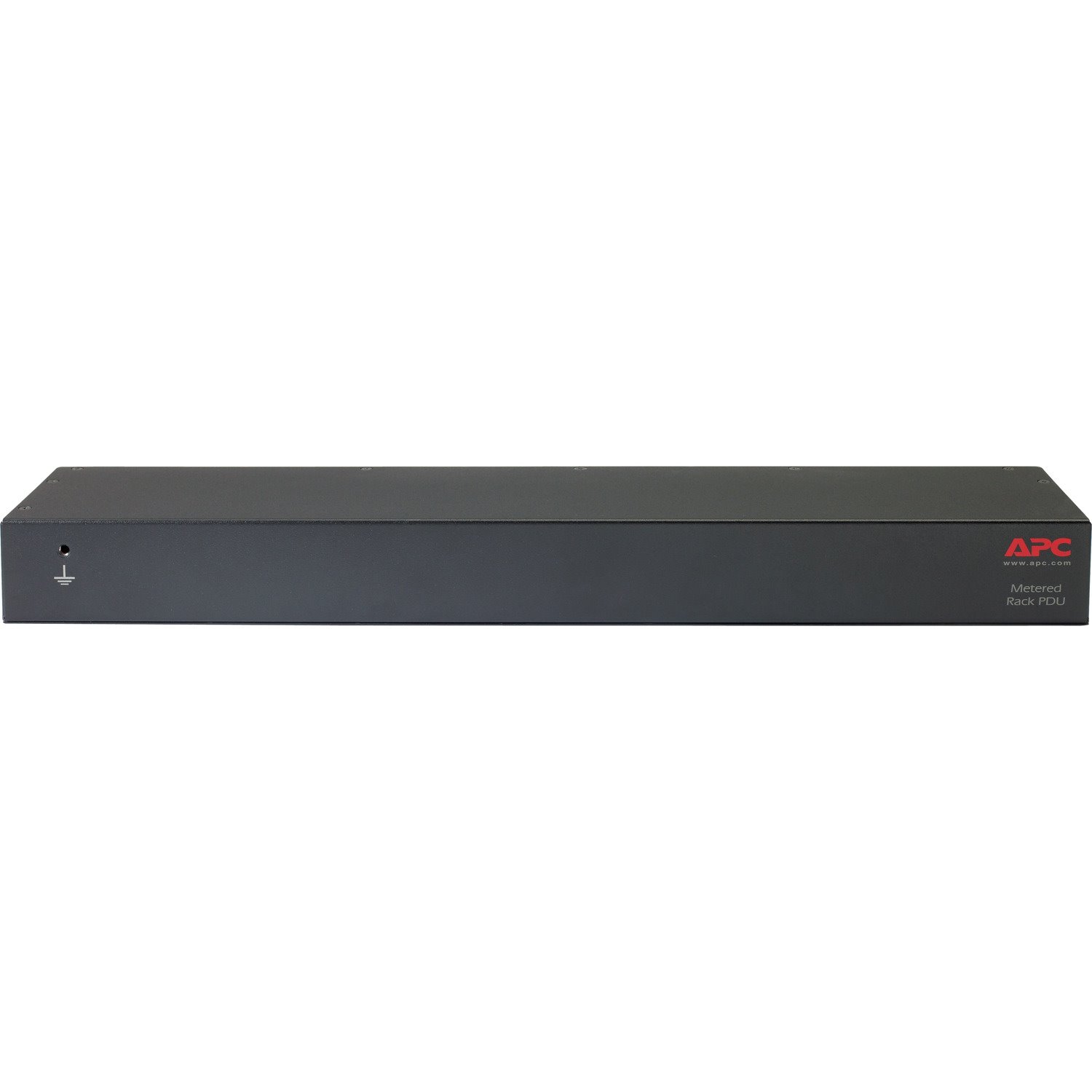

It is a metered rack PDU designed for 1U horizontal mounting. It supports a maximum current of 20A and operates at 120V. The PDU features 8 NEMA 5-20R outlets and a 12-foot power cord with a NEMA L5-20P plug. It has a load capacity of 1920 VA and includes a cord retention bracket, installation guide, and rack mounting brackets.
- Product Type
- PDU
- Technical Information
- PDU Type
- Metered
- Plug/Connector Type
- NEMA L5-20P
- Receptacle Type
- NEMA 5-20R
- Receptacle Detail
- 8 x NEMA 5-20R
- Power Description
- Input Voltage
- 100 V
- 120 V
- Output Voltage
- 120 V AC
- Power Rating (VA)
- 1.92 kVA
- Input Current
- 20 A
- Physical Characteristics
- Mounting Orientation
- Horizontal
- Mounting Preference
- No Preference
- Mount Type
- Rack-mountable
- Placement
- Front
- Rear
- Rack Height
- 1U
- Cord Length
- 3.65 m
- Height
- 44 mm
- Width
- 444 mm
- Depth
- 102 mm
- Weight (Approximate)
- 1.73 kg
- Miscellaneous
- For Country/Region
- United States
- Product Take Back Program
- No
- RoHS Exemption Information
- https://download.schneider-electric.com/files?p_enDocType=Declaration+of+Conformity+%28Sustainability%29&p_Doc_Ref=AP7801B_ROHS_DECLARATION&p_FileName=AP7801BKIT_ROHS_DECLARATION_US.pdf
- REACH Declaration URL
- https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=exportPdfReach&pid=465899650&lang=en-us
- EU RoHS Declaration URL
- https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=465899650&lang=en-us
- Environmental Profile Availability
- https://download.schneider-electric.com/files?p_enDocType=Environmental+Disclosure&p_Doc_Ref=ENVPEP1512009EN
- End of Life Manual Availability
- https://download.schneider-electric.com/files?p_enDocType=Circularity+Profile&p_Doc_Ref=ENVEOLI1512009_EN
- WEEE Statement
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
