- General Information
- Manufacturer
- ASUS Computer International
- Manufacturer Website Address
- http://uk.asus.com
- Brand Name
- Asus
- Product Type
- Server Motherboard

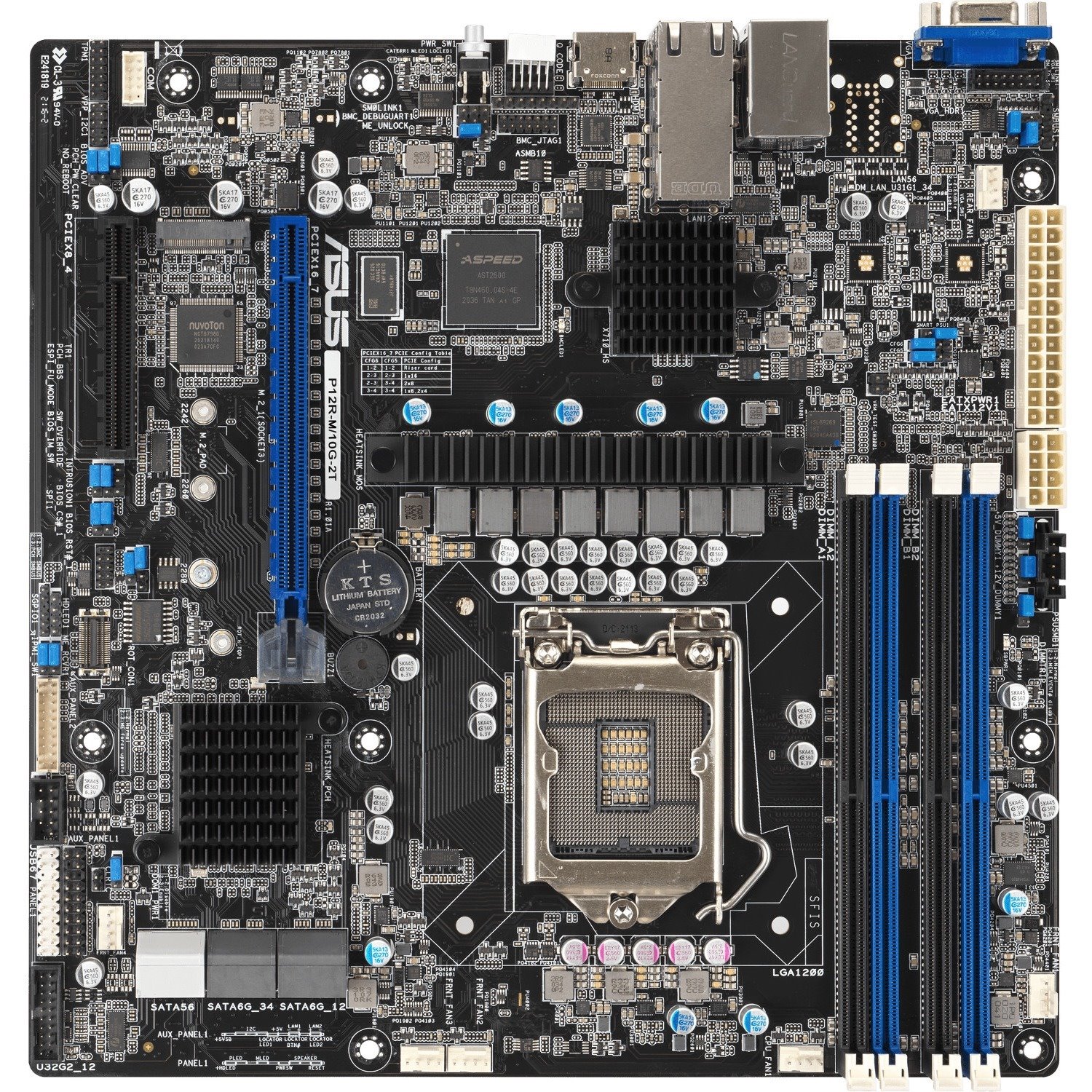

Intel® Xeon® E-2300 LGA 1200 Micro-ATX server motherboard with four DIMM and one M.2 slot, plus dual 10G LAN, six SATA, one HDMI, two PCIe 4.0 slots, two USB 3.2 Gen 2, Platform Firmware Resilience (PFR) and ASUS ASMB10-iKVM
KEY FEATURES
- Ideal for remote office/branch office (ROBO) use and everyday business environments
- Powered by eight-core Intel® Xeon E-2300-series processor with support for up to 95 W TDP
- Flexible expandability with six native SATA HDDs and two PCI Express 4.0 slots
- Dual Intel X710AT Gigabit Ethernet with teaming support
- One M.2 for up to 32 Gbps performance for faster OS booting
- HDMI 1.4 support for high-resolution display maintenance and monitoring
- Onboard ASUS ASMB10-iKVM with ASPEED AST2600 controller for out-of-band management
- Integrated PFR FPGA as the platform Root-of-Trust solution for firmware resiliency
PCIe 4.0 Ready
PCI Express® (PCIe®) 4.0 delivers 16 GT/s bandwidth, which is double the speed of PCIe 3.0, offering lower power consumption, better lane scalability and backwards compatibility. ASUS P12R server motherboards are PCIe 4.0 ready to support a diverse array of graphics, storage and networking - enabling flexible scalability for demanding or increasing workloads.
- Processor & Chipset
- Chipset Manufacturer
- Intel
- Chipset Model
- C252
- Total Processor Supported
- 1
- Processor Socket
- Socket LGA-1200
- Processor Supported
- Pentium
- Xeon
- Memory
- Number of Memory Slots
- 4
- Memory Form Factor
- UDIMM
- Maximum Memory Supported
- 128 GB
- Memory Technology
- DDR4 SDRAM
- Memory Speed Supported
- 3200 MHz
- 2933 MHz
- 2666 MHz
- I/O Controller
- Controller Type
- Serial ATA/600
- RAID Supported
- Yes
- Video
- Onboard Video
- On-board Video Chipset
- Graphics Controller Model
- AST2600
- Network & Communication
- 10Gigabit Ethernet
- Yes
- I/O Expansions
- Total Number of Expansion Slots
- 2
- Total Number of PCI Express Slots
- 2
- Number of PCI Express x8 Slots
- 1
- Number of PCI Express x16 Slots
- 1
- Interfaces/Ports
- Total Number of USB Ports
- 2
- Number of USB 3.2 Ports
- 2
- VGA
- Yes
- HDMI
- Yes
- Number of Network (RJ-45) Ports
- 2
- Onboard Interfaces
- Number of SATA Interfaces
- 6
- Number of M.2 Interfaces
- 1
- Total Number of Onboard USB Ports
- 5
- Number of Onboard USB 2.0 Ports
- 2
- Number of Onboard USB 3.2 Ports
- 3
- Physical Characteristics
- Form Factor
- Micro ATX
- Width
- 243.8 mm
- Depth
- 243.8 mm
- Miscellaneous
- Environmentally Friendly
- Yes
- Environmental Compliance
- Restriction of Hazardous Substances (RoHS)
