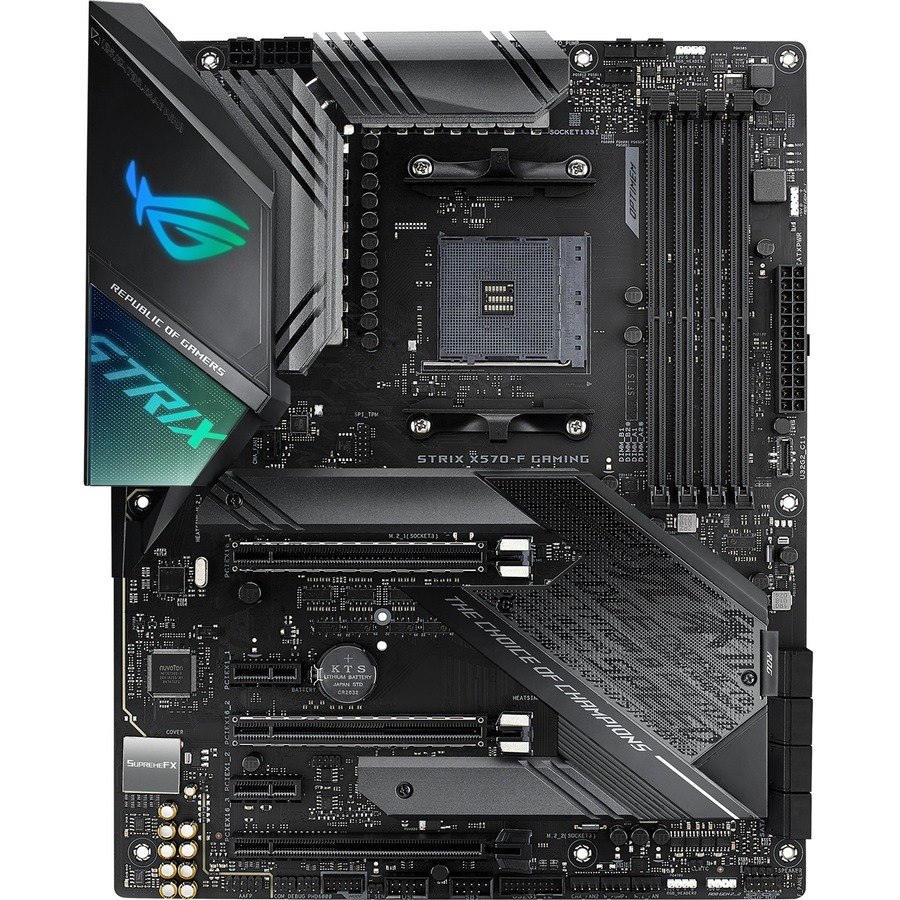

AMD X570 ATX gaming motherboard with PCIe 4.0, Aura Sync RGB lighting, Intel Gigabit Ethernet, dual M.2 with heatsinks, SATA 6Gb/s and USB 3.2 Gen 2
- AM4 socket: Ready for 2nd and 3rd Gen AMD Ryzen™ processors to maximize connectivity and speed with up to two M.2 Drives, USB 3.2 Gen2 and AMD StoreMI
- Aura Sync RGB: ASUS-exclusive Aura Sync RGB lighting, including RGB headers and addressable Gen 2 headers
- Comprehensive cooling: Active PCH heatsink, MOS heatsink with 8mm heatpipe, dual on-board M.2 heatsinks and a water pump + header
- Gaming connectivity: Supports PCIe 4.0, HDMI 2.0, DisplayPort 1.2 and features dual M.2 and USB 3.2 Type-A and Type-C connectors
- Gaming networking: Intel Gigabit Ethernet, ASUS LANGuard and GameFirst
- 5-Way Optimization: Automated system-wide tuning, providing overclocking and cooling profiles that are tailor made for your rig
- Gaming audio: High fidelity audio with SupremeFX S1220A, DTS® Sound Unbound and Sonic Studio III to draw you deeper into the action
- Easy DIY: ROG-patented pre-mounted I/O shield, ASUS SafeSlot, ASUS Node connector and BIOS Flashback™ for a friendlier building experience
The ROG Strix X570-F Gaming motherboard delivers the quintessential ROG experience with a compelling mix of features, comprehensive cooling options and undeniable style that provide the ideal foundation for building a powerful ATX gaming system. Topped off with a futuristic new design aesthetic with on-board RGB lighting and a cyber-text pattern, ROG Strix X570-F Gaming equips you with all you need to build a formidable weapon to rise above the rest.
SOLID HARDWARE SPECS
With comprehensive cooling options and upgraded power delivery to fuel Ryzen CPUs with more cores, plus faster storage and networking, ROG Strix X570-F Gaming provides all the essentials you need to harness the full potential of components in your build for top-tier gaming performance.
POWER
POWER DESIGN
Digital power control and an array of power stages ensures ROG Strix X570-F Gaming has the muscle to control the latest AMD Ryzen CPUs.
Power Connector
ProCool II Power Connector
ProCool II sockets are built to tight specifications to ensure flush contact with the PSU power lines and have a metal armour for improved heat dissipation. The connector's lower impedance helps prevent hotspots and improves reliability.
Controller
Digi+ Power Control
The Digi+ voltage-regulator module (VRM) is one of the finest in the industry, ensuring ultra-smooth and clean power delivery to the CPU.
Driver & MOSFET
Power Stage
ROG Strix X570-F Gaming has a CPU VRM with power stages that combine high-side and low-side MOSFETs and drivers into a single package, delivering the power and efficiency that the latest AMD processors demand.
ChokeThermal Solution
ROG Strix X570-F Gaming uses efficient alloy chokes and high-quality thermal pads to help transfer heat from the VRM array to a sink with ample surface area for the latest processors.
Capacitor
High Quality Chokes and Caps
Superior chokes and durable capacitors are engineered to resist extreme temperatures and provide up to 110% better performance than the industry standard.
- General Information
- Manufacturer
- ASUS Computer International
- Manufacturer Website Address
- http://uk.asus.com
- Brand Name
- Asus ROG
- Product Line
- Strix
- Product Type
- Desktop Motherboard
- Warranty
- Limited Warranty
- 3 Year
- Processor & Chipset
- Chipset Manufacturer
- AMD
- Chipset Model
- X570
- Total Processor Supported
- 1
- Processor Socket
- Socket AM4
- Processor Supported
- Ryzen 7
- Ryzen 7 PRO
- Ryzen 5
- Ryzen 3
- Ryzen 3 PRO
- Ryzen 9
- Multi GPU Supported
- CrossFireX
- SLI
- Memory
- Number of Memory Slots
- 4
- Memory Form Factor
- DIMM
- UDIMM
- Maximum Memory Supported
- 128 GB
- Memory Technology
- DDR4 SDRAM
- Memory Speed Supported
- 4400 MHz
- 4266 MHz
- 4133 MHz
- 4000 MHz
- 3866 MHz
- 3600 MHz
- 3400 MHz
- 3200 MHz
- 3000 MHz
- 2800 MHz
- 2666 MHz
- 2400 MHz
- 2133 MHz
- I/O Controller
- Controller Type
- Serial ATA/600
- RAID Supported
- Yes
- RAID Levels
- 0
- 1
- 10
- Video
- Onboard Video
- CPU Dependent Video
- Audio
- Audio Channels
- 7.1
- Network & Communication
- Gigabit Ethernet
- Yes
- I/O Expansions
- Total Number of Expansion Slots
- 5
- Total Number of PCI Express Slots
- 5
- Number of PCI Express x1 Slots
- 2
- Number of PCI Express x16 Slots
- 3
- Interfaces/Ports
- Total Number of USB Ports
- 8
- Number of USB 3.2 Ports
- 8
- S/PDIF
- Yes
- HDMI
- Yes
- DisplayPort
- Yes
- Number of Network (RJ-45) Ports
- 1
- Onboard Interfaces
- Number of SATA Interfaces
- 8
- Number of M.2 Interfaces
- 2
- Total Number of Onboard USB Ports
- 7
- Number of Onboard USB 2.0 Ports
- 4
- Number of Onboard USB 3.2 Ports
- 3
- Physical Characteristics
- Form Factor
- ATX
- Width
- 304.8 mm
- Depth
- 243.8 mm
- Miscellaneous
- Package Contents
- Strix X570-F Gaming Desktop Motherboard
- User's Manual
- 4 x SATA 6Gb/s cable(s)
- 1 x M.2 Screw Package
- 1 x Supporting DVD
- 1 x Strix Door Hanger
- 1 x ROG Strix stickers
- 1 x Cable Ties Pack(s)
- 1 x Extension Cable for RGB strips (80 cm)
- 1 x Extension cable for Addressable LED
- 1 x Thermistor cable(s)
- 1 x ROG Thank you card
- Environmentally Friendly
- Yes
- Environmental Compliance
- Restriction of Hazardous Substances (RoHS)
