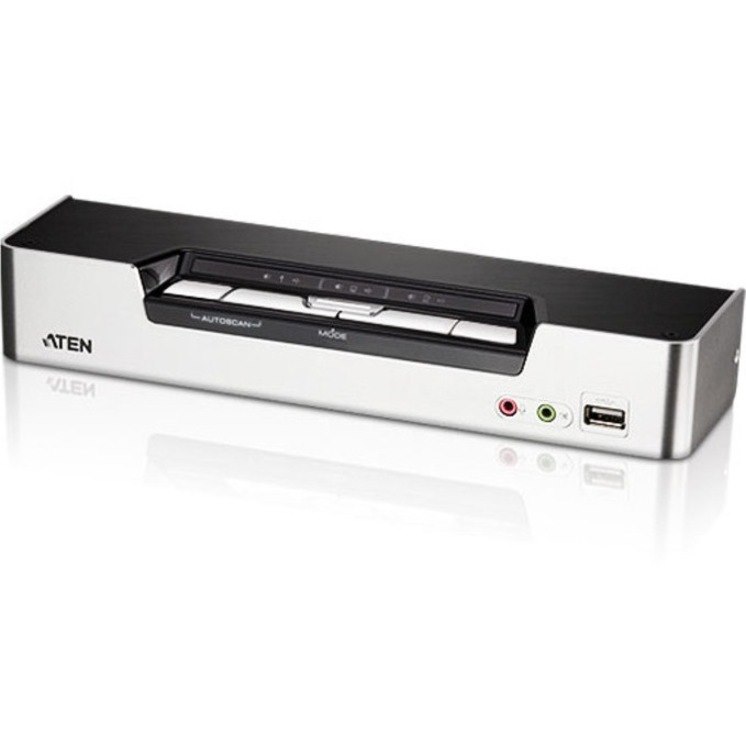

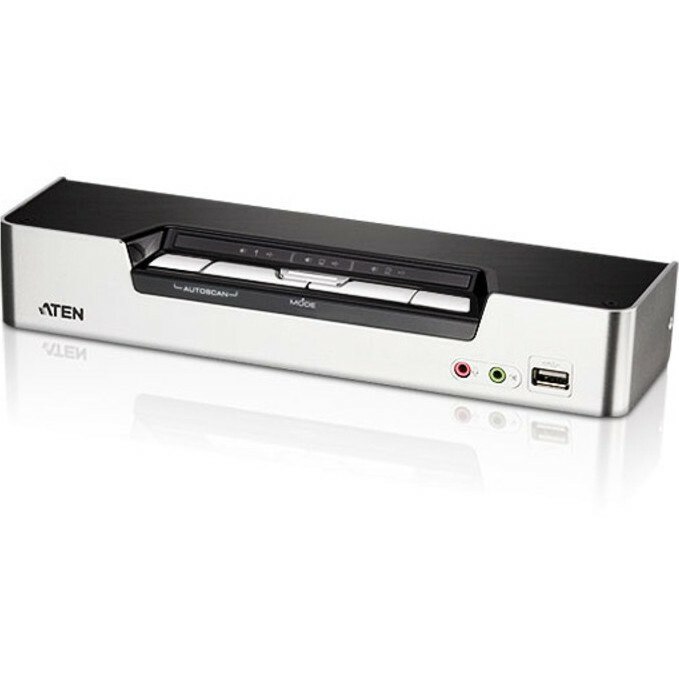

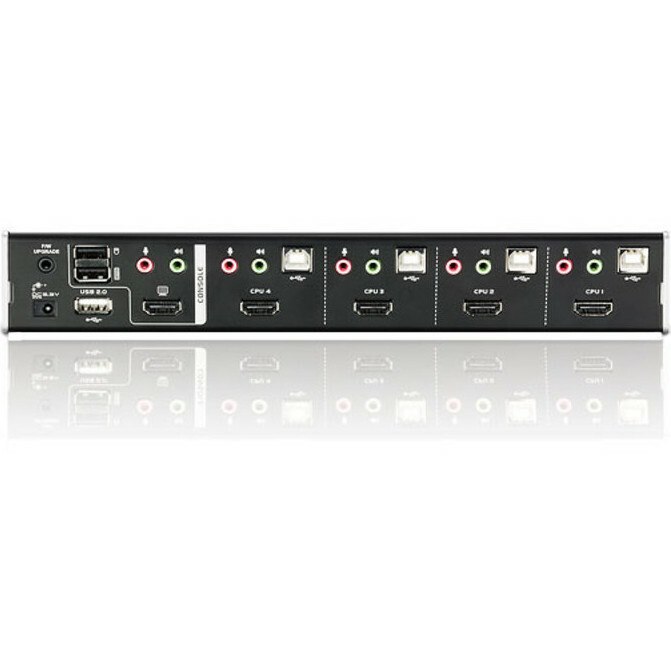

With its unique design and innovative features, the CubiQ™ CS1794 USB 2.0 HDMI KVMP™ Switch provides both style and functionality for today's multimedia SOHO environment. Combining a 4-port switch with a 2-port USB 2.0 hub, the CS1794 provides seamless HDMI signal switching between 4 PCs or other HDMI-enabled devices, such as gaming consoles, and allows users to share USB peripherals from a single console.
The CS1794 provides enhanced independent switching via front panel pushbuttons and keyboard hotkeys, and features Video DynaSync™ technology to ensure that HDMI display resolution is always optimized. With integrated digital audio, the CS1794 also allows users to experience high-definition sound, such as Dolby True HD and DTS HD Master Audio.
Ideal for multimedia applications in the home or office, the CubiQ™ CS1794 offers the ultimate in space-saving, streamlined KVM technology for the desktop.
- General Information
- Manufacturer
- ATEN Technology, Inc
- Manufacturer Website Address
- http://www.aten.com
- Brand Name
- ATEN
- Product Line
- CubiQ
- Packaged Quantity
- 1
- Product Type
- KVM Switchbox
- Technical Information
- Number of Computers Supported
- 4
- Number of Local Users Supported
- 1
- Minimum Scan Interval
- 1 Second
- Video
- Graphic Mode
- WUXGA
- Maximum Video Resolution
- 1920 x 1200
- Interfaces/Ports
- USB
- Yes
- HDMI
- Yes
- Headphone
- Yes
- Microphone
- Yes
- Number of USB Ports
- 8
- Number of HDMI Ports
- 5
- Power Description
- Input Voltage
- 5.3 V DC
- Power Consumption
- 4.80 W
- Physical Characteristics
- Form Factor
- Desktop
- Height
- 45 mm
- Width
- 73 mm
- Depth
- 265 mm
- Weight (Approximate)
- 530 g
- Miscellaneous
- Package Contents
- 4-Port USB 2.0 HDMI KVMP Switch
- 4 x Custom HDMI KVM Cable Sets
- 1 x Firmware Upgrade Cable
- 1 x Power Adapter
- 1 x USB-to-PS/2 Converter
- 1 x User Instructions
- Platform Supported
- PC
- Mac
- Linux
- Environmentally Friendly
- Yes
- Environmental Compliance
- Restriction of Hazardous Substances (RoHS)
- Waste Electrical and Electronic Equipment Directive (WEEE)
