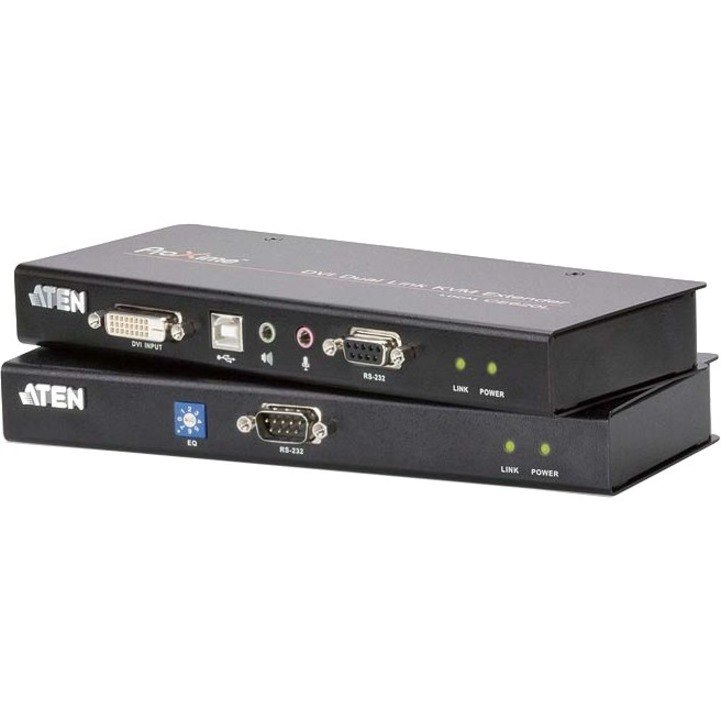

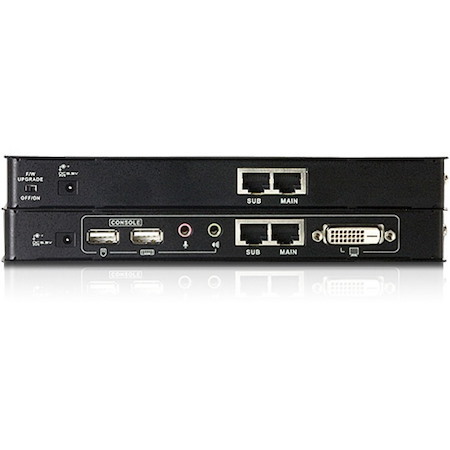

The CE600 is a DVI and USB based KVM Extender with RS-232 serial functionality. It allows access to a computer system from a remote console (USB keyboard, monitor, and mouse). Because it allows access to a computer system from a remote console, the CE600 is perfect for use in any type of installation where you need to place the console where it is conveniently accessible, but you want the system equipment to reside in a safe location - away from the dust and dirt of the factory floor, or the harsh environmental infl uence of a construction site, for example. This allows users to deploy system equipment over large distances.
The CE600 users one Cat 5e cable (DVI Single Link) to support up to 1920 x 1080 video resolution- General Information
- Manufacturer
- ATEN Technology, Inc
- Manufacturer Website Address
- http://www.aten.com
- Brand Name
- ATEN
- Product Type
- KVM Console/Extender
- Warranty
- Limited Warranty
- 2 Year
- Technical Information
- Connectivity Technology
- Wired
- Number of Computers Supported
- 1
- Number of Remote Users Supported
- 1
- Maximum Operating Distance
- 60 m
- Video
- Graphic Mode
- WUXGA
- Maximum Video Resolution
- 1920 x 1200
- Interfaces/Ports
- Network (RJ-45)
- Yes
- USB
- Yes
- DVI
- Yes
- Number of Network (RJ-45) Ports
- 4
- Number of USB Ports
- 3
- Number of DVI Ports
- 2
- Power Description
- Input Voltage
- 5.3 V DC
- Physical Characteristics
- Product Color
- Black
- Form Factor
- Rack-mountable
- Transmitter Height
- 25 mm
- Transmitter Width
- 202 mm
- Transmitter Depth
- 86.80 mm
- Receiver Height
- 25 mm
- Receiver Width
- 202 mm
- Receiver Depth
- 86.80 mm
- Transmitter Weight (Approximate)
- 480 g
- Receiver Weight (Approximate)
- 480 g
- Miscellaneous
- Package Contents
- 1 x CE600L DVI KVM Extender (Local Unit)
- 1 x CE600R DVI KVM Extender (Remote Unit)
- 1 x 1.8 m USB DVI-D Single Link KVM Cable Set
- 2 x Power Adapters
- 1 x Mounting Kit
- 1 x User Instructions
- Environmentally Friendly
- Yes
- Environmental Compliance
- Restriction of Hazardous Substances (RoHS)
- Waste Electrical and Electronic Equipment Directive (WEEE)
