Streamlined Connection with USB Type-C
The monitor is equipped with a USB Type-C connection that allows you display video, playback audio, transmit USB signals, supply power to connected devices, and even transmit a network signal. This convenient multi-purpose connectivity makes it faster and easier to connect your laptop when moving between workstations or working away from the office.
70 W Power Delivery
The 70 W power delivery via USB Type-C reliably charges small desktop PCs or laptops such as a Microsoft Surface. This eliminates the need for a laptop's bulky power supply unit, freeing up space in your bag and on the desk.
Stable Network Connection
While many modern laptops are not equipped with a dedicated LAN port, the monitor has one directly built in for a stable wired connection. Connecting any laptop via USB Type-C allows access to the network through the monitor. This allows you to conduct conference calls or data transfers reliably and at high speed.
EIZO MAC Address Clone Utility software temporarily assigns the MAC address of a connected PC to the monitor, granting network access to authenticated devices, and preventing network access from unauthenticated devices.
Efficient Multi-Screen Setup
The monitor's USB Type-C connection supports daisy chaining for easily connecting multiple monitors from a single video signal output. This allows you to effortlessly connect up to four screens and quickly view multiple applications simultaneously for boosting efficiency.
Aesthetically Pleasing Design
A monitor's aesthetic can go a long way in creating a more comfortable atmosphere. The monitor's minimalistic design and its ergonomic functions allow it to fit naturally in your work environment, whether you are at home or in the office.

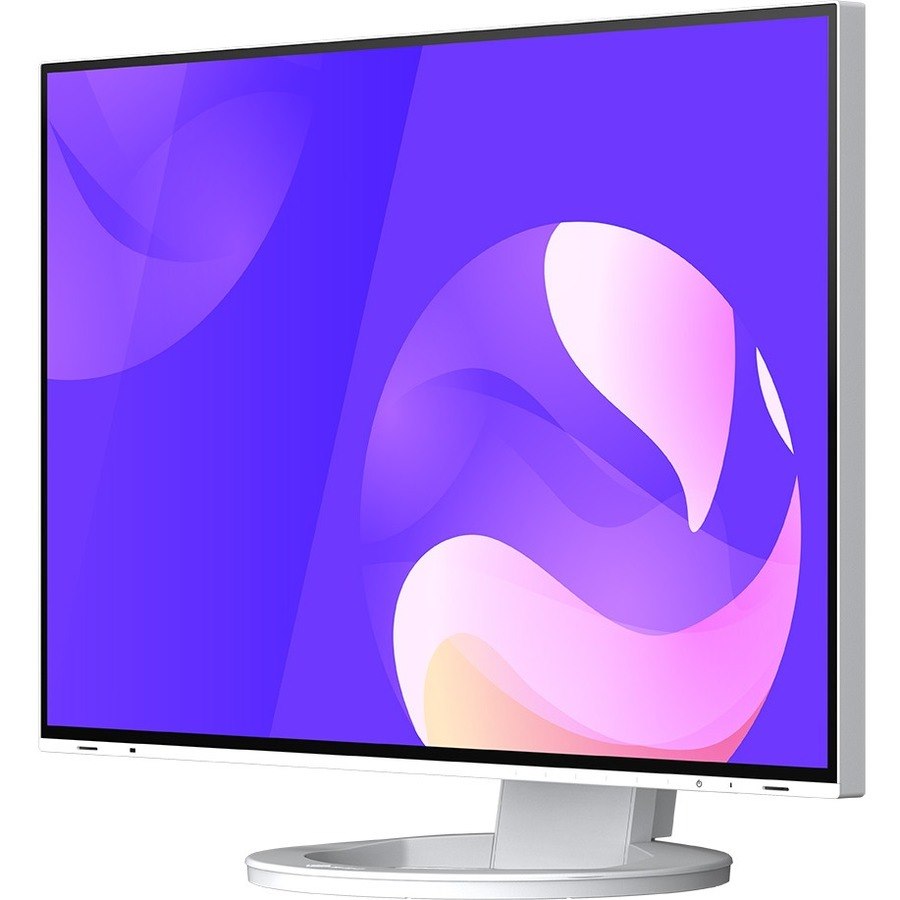

Frameless and White
The monitor implements a virtually frameless design for a minimalistic aesthetic. In addition to sleek black, the cabinet is available in white for a color option that keeps your workspace feeling bright. Furthermore, EIZO provides white cables to match the cabinet for full color coordination.

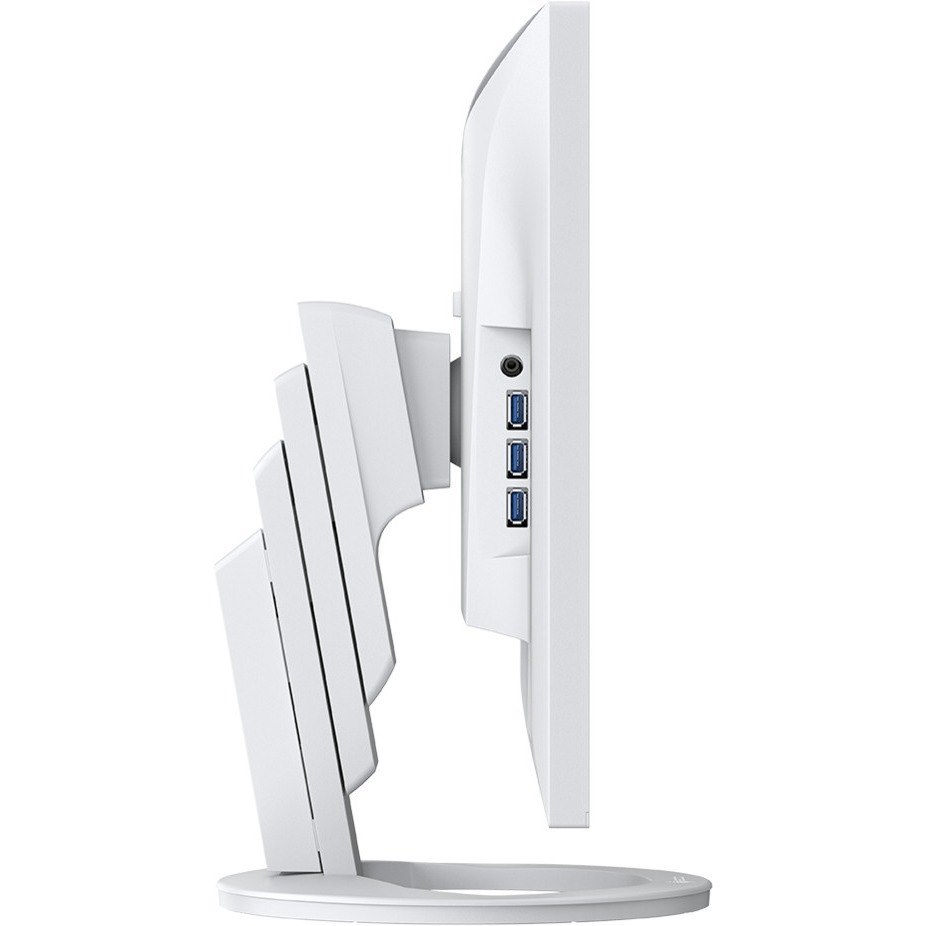

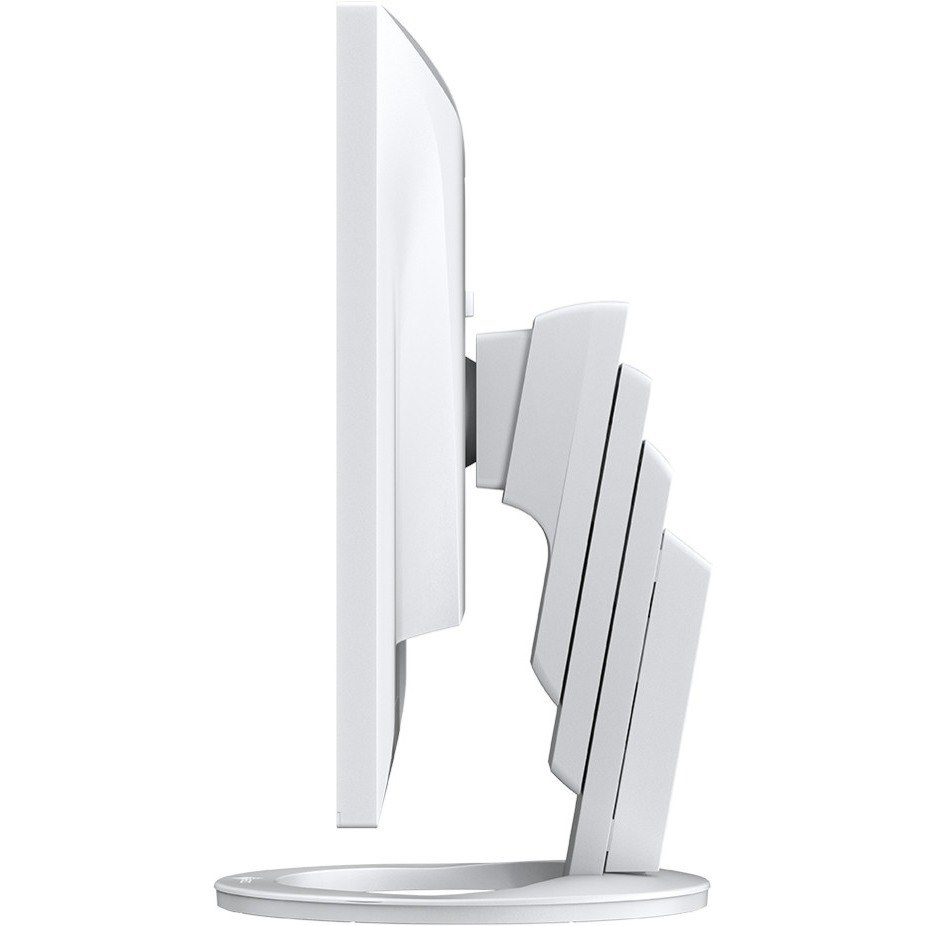

Versatile Stand for Optimal Positioning
The stand has a wide adjustment range, featuring height adjustment, tilt and swivel. This allows the user to set the monitor to the perfect position. At maximum height, the user can also comfortably place a small laptop under the screen to save space in even the most limited workspaces. Furthermore, a high native resolution of 1920 x 1200 shows 11% more content than a conventional monitor with a full HD (1920 x 1080) resolution, reducing the need for frequent scrolling in some applications.
- General Information
- Manufacturer
- EIZO
- Manufacturer Website Address
- http://www.eizo.co.uk
- Brand Name
- EIZO
- Product Line
- FlexScan
- Product Series
- EV
- Product Type
- LCD Monitor
- Warranty
- Limited Warranty
- 5 Year
- Technical Information
- Number of Screens
- 1
- Screen Size Class
- 24"
- Viewable Screen Size
- 61.2 cm (24.1")
- Screen Mode
- WUXGA
- Panel Technology
- In-plane Switching (IPS) Technology
- Response Time
- 5 ms
- Response Time Details
- 5ms GTG
- Aspect Ratio
- 16:10
- Pixel Pitch
- 0.27 mm
- Horizontal Viewing Angle
- 178°
- Vertical Viewing Angle
- 178°
- Backlight Technology
- WLED
- HDCP Supported
- Yes
- Features
- sRGB
- EcoView
- EcoView Optimizer
- EcoView Index
- OverDrive
- Flicker-free
- Power Management
- Removable Stand
- On-screen Display (OSD)
- Low Blue Light
- MultiScreen
- Digital Daisy Chain
- Horizontal Frequency
- 31 kHz to 76 kHz - USB Type C
- 31 kHz to 76 kHz - DisplayPort
- 15 kHz to 76 kHz - HDMI
- Stand Adjustments
- Tilt
- Pivot
- Height
- Swivel
- Video
- Maximum Resolution
- 1920 x 1200
- Standard Refresh Rate
- 60 Hz
- Colour Supported
- 16.7 Million Colours
- Native Contrast Ratio
- 1,000:1
- Brightness
- 350 cd/m²
- Audio
- Number of Speakers
- 2
- Speakers
- Yes
- Interfaces/Ports
- Network (RJ-45)
- Yes
- DVI
- No
- HDMI
- Yes
- USB
- Yes
- VGA
- No
- DisplayPort
- Yes
- Thunderbolt
- No
- USB Type-C
- Yes
- Number of HDMI Inputs
- 1
- Number of USB Ports
- 6
- Number of USB Type-B Upstream Ports
- 1
- Number of DisplayPorts
- 1
- Total Number of USB Type-C Ports
- 2
- Built-in Devices
- Built-in Devices
- KVM Switch
- Power Description
- Energy Efficiency Class (till 28th February 2021)
- A++
- Energy Efficiency Class (SDR) (from 1st March 2021)
- C
- ON Mode Energy Consumption per 1000Hour (SDR) (from 1st March 2021)
- 12 kW
- Frequency
- 50 Hz
- 60 Hz
- Physical Characteristics
- VESA Mount Compatible
- Yes
- VESA Mount Standard
- 100 x 100
- Color Family
- White
- Colour
- White
- Height
- 344.2 mm
- Width
- 531 mm
- Depth
- 5 mm
- Height with Stand
- 538.40 mm
- Width with Stand
- 531 mm
- Depth with Stand
- 230 mm
- Weight (Approximate)
- 4.90 kg
- Weight with Stand (Approximate)
- 7.60 kg
- Miscellaneous
- Package Contents
- FlexScan EV2495 Widescreen LCD Monitor
- Power cable
- Signal cable USB-C - USB-C (5 A)
- Quick start guide
- Cable cover
- Energy Star
- Yes
- Environmentally Friendly
- Yes
- Environmental Certification
- Electronic Product Environmental Assessment Tool (EPEAT)
- TCO Certified Displays 8.0
- Environmental Compliance
- Waste Electrical and Electronic Equipment Directive (WEEE)
- Restriction of Hazardous Substances (RoHS)
