- General Information
- Manufacturer
- Elo Touch Solutions, Inc
- Manufacturer Website Address
- http://www.elotouch.com
- Brand Name
- Elo
- Product Type
- Handheld Terminal
Accept paymentsanytime. Anywhere

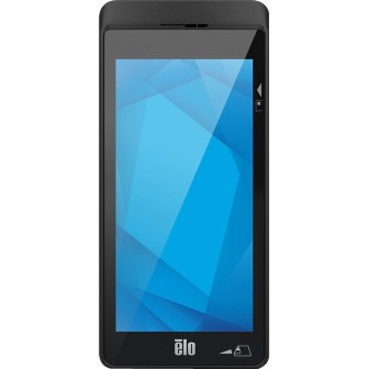

Designed to support your everyday business, the Elo M60 Pay delivers an enterprise-grade, Android mobile point of sale system ready
to help you assist customers
Point of saleon the go.
the M60 Pay offers built-in mPOS capabilities to accept payments, conduct business, and track sales all from the palm of your hand.
Brilliant 6-inch display.
Complete with a 6-inch HD touch display, integrated payment, flexible Android 10 OS and Qualcomm 660 octa-core processor, the handheld pos computer provides seamless integration, effortless provisioning and simplified device management via EloView or your preferred 3rd-party MDM.
Choose the modelthat fits your business.
Are you looking for a cellular or Wi-Fi enabled mobile computer? Do you want an integrated 2D barcode scanner? The M60 Pay has been designed to offer the configuration your business needs.
Payment processing.
L1 and L2 Certified: The Elo Payment SDK allows you to easily integrate the M60 in your payment process.
L3 Certified: Elo Pay allows you to easily setup your M60 to accept payments without any coding or certification.
Elo Pay
Elo Pay is a SaaS based payment gateway solution that easily enables customers to integrate our SDK into their Android application for immediate access to processing payments.
Dip. Tap. Swipe
Accept all forms of payment with the M60 Pay POS terminal. Whether your customers have a physical card or contactless via their mobile phone, the M60 Pay has you covered wherever your customers are - in line, at the counter, table-side or in their seat.
From mobileto fixed POS
Use your handheld pos terminal with the DS11 Docking Station to create a seamless customer-facing display that accepts payment. Now that's versatility.*
*Requires an EM10 Expansion Module and Elo USB-C Touchscreen Monitor.
Fast & easy scanning.
With the 2D barcode scanner, you can do it all to keep your operations running smoothly. From price checking and taking inventory to line-busting and BOPIS - you're covered.
Battery life tocover your shift.
With a 12-hour battery life*, you don't have to worry about having backups to support constant rotation. And with the quick charge feature, your handheld pos terminal can be fully powered in just about an hour.
*Exact battery life depends on use
Rugged mobilecomputer.
The mobile pos hardware is purpose-built to endure commercial use with features including:
-
Corning Gorilla Glass
-
IP54
-
Drop Resistant (1 m)
Android device managementmade easy.
With EloView, you can deploy and securely manage your entire network of Android-powered Elo devices from anywhere in the world.
-
Provision your devices in seconds with a seamless out-of-the-box experience.
-
Leverage Elo Home to create a customized (locked-down) interface on your mobile POS android device. Deploy a package of apps, Google apps included, and set specific apps available to admins only.
-
Manage battery life with ease - view up-to-date battery statistics directly on the device or manage your entire fleet directly from EloView.
-
- Warranty
- Limited Warranty
- 1 Year
- Technical Information
- Connectivity Technology
- Wireless
- Light Source
- LED
- Google Mobile Services (GMS)
- Yes
- Sensor Type
- Proximity
- Accelerometer
- Light Sensor
- Number of SIM Card Supported
- 1
- SIM Size Supported
- Nano
- Brightness
- 430 cd/m²
- Features
- Water Resistant
- Gorilla Glass
- Drop Specification
Multiple 1m drops
- Processor & Chipset
- Processor Type
- Snapdragon
- Processor Model
- 660
- Processor Core
- Octa-core (8 Core)
- Processor Speed
- 2.20 GHz
- Memory
- Standard Memory
- 3 GB
- Flash Memory
- 32 GB
- Memory Card Supported
- microSD
- Display & Graphics
- Screen Size
- 15.2 cm (6")
- Screen Resolution
- 1440 x 720
- Display Screen Type
- LCD
- Touchscreen Information
- Touchscreen
- Yes
- Keyboard/Keypad
- Buttons & Keys
On screen keyboard
- Network & Communication
- Wireless LAN
- Yes
- Wireless LAN Standard
- IEEE 802.11a/b/g/n/ac
- Bluetooth
- Yes
- Bluetooth Standard
- Bluetooth 5.0
- Near Field Communication (NFC)
- Yes
- Cellular Network Supported
- WCDMA
- Cellular Data Connectivity Technology
- LTE
- GPS
- Yes
- Global Navigation Satellite System (GNSS) Supported
- GLONASS
- Interfaces/Ports
- USB
- Yes
- USB Type-C
- Yes
- Camera
- Rear Camera
- Yes
- Rear Camera Resolution
- 8 Megapixel
- Software
- Operating System
- Android 10
- Power Description
- Power Source
- Battery
- Battery Information
- Battery Capacity
- 4000 mAh
- Battery Chemistry
- Lithium Polymer (Li-Polymer)
- Battery Included
- Yes
- Battery Voltage
- 3.80 V
- Environmental Conditions
- Operating Temperature
- 0°C to 50°C
- Storage Temperature
- -30°C to 60°C
- Humidity (Non-condensing)
- 5% to 95%
- Physical Characteristics
- Form Factor
- Phone-size
- Rugged
- Yes
- Height
- 186 mm
- Width
- 86.4 mm
- Depth
- 19.5 mm
- Weight (Approximate)
- 362 g
- Miscellaneous
- Package Contents
- Elo M60 Pay Mobile POS System
- Battery
- Elo M60 Pay
- USB Type C Charger with Qualcomm Quick Charge 4.0
- Quick Install Guide
- Ingress Protection (IP) Rating
- IP54
- Environmentally Friendly
- Yes
- Environmental Compliance
- Restriction of Hazardous Substances (RoHS)
