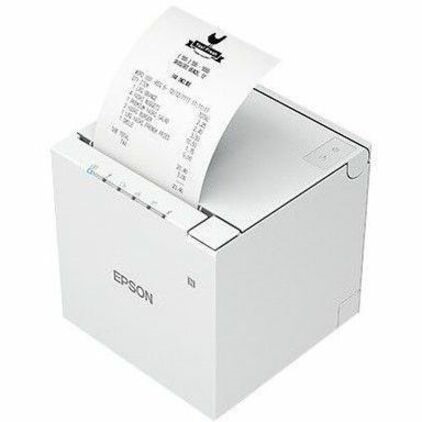

Epson OmniLink TM-m30III-H Mobile POS, Desktop Direct Thermal Printer - Monochrome - Receipt Print - Fast Ethernet - USB - USB Host - Bluetooth 5.0 - IEEE 802.11a/b/g/n/ac Wireless LAN - Near Field Communication (NFC) - With Cutter - White
- Part: 2141046
- Model: C31CK51101
- General Information
- Manufacturer
- Epson Corporation
- Manufacturer Website Address
- http://www.epson.co.uk
- Brand Name
- Epson
- Product Line
- OmniLink
- Product Type
- Direct Thermal Printer
Sleek, compact, advanced connectivity, ideal for mPOS receipt printing.
Modern and compact design - sleek 3" thermal receipt printer; small size; supports both front and top paper exits; standard near-end sensor
Fast, stable network tethering - wired network communication with iOS® or Android™ mobile device via USB-C connection, at up to 20 Mbps
Versatile connectivity - built-in interfaces; USB-A, USB-B, USB-C and Ethernet; optional dual Wi-Fi®/Bluetooth® interface available
POS hub capability - connect up to four USB POS peripherals; Sync & Charge feature can deliver up to 18 W of power to a mobile device
Ready for cloud printing and online ordering - Server Direct Print available to retrieve print jobs directly from the cloud
Simple configuration - easily set up a Wi-Fi or Bluetooth connection with the optional dual wireless interface
Fast print speed - quickly produce sharp and crisp text, barcodes and logos; speeds up to 300 mm/sec
World-class service and support - 2-year limited warranty; Epson PreferredSM Plus Extended Service Plans available for up to a total of 5 years of continuous coverage
Paper-saving feature - reduce paper usage by up to 49 percent
Enhanced enclosure - IPX2-rated enclosure is water-resistant; antimicrobial and easy to clean
- Technical Information
- Recommended Use
- Receipt Print
- Print Color Capability
- Monochrome
- Maximum Mono Print Speed
- 300 mm/s
- Maximum Print Resolution (dpi)
- 203
- Barcode Symbology Supported
- UPC-A
- UPC-E
- Composite Symbology
- GS1 DataBar
- Maxi Code
- QR Code
- Data Matrix
- PDF417
- EAN-13 (JAN13)
- EAN-8 (JAN8)
- Code 39
- Code 93
- ITF
- Codabar (NW-7)
- Code 128
- Code 128-Auto
- Application/Usage
- Mobile POS
- Desktop
- Features
- Compact
- Water Resistant
- Paper Saving Mode
- Power Saving Mode
- Mean Time Between Failures (MTBF)
- 41.1 Year
- Mean Cycles Between Failures (MCBF)
- 65000000
- Ingress Protection (IP) Rating
- IPX2
- Character Sets
- 95 Alphanumeric
- 18 International
- 128 x 43 Graphic
- Korean
- Installation
- Horizontal/Vertical
- Connectivity Technology
- Wired & Wireless
- Print Technology
- Direct Thermal
- Interfaces/Ports
- USB Host
- Yes
- USB
- Yes
- USB Standard
- USB 2.0
- Network & Communication
- Ethernet
- Yes
- Ethernet Technology
- Fast Ethernet
- Bluetooth
- Yes
- Bluetooth Version
- 5.0
- Wireless LAN
- Yes
- Wireless LAN Standard
- IEEE 802.11a/b/g/n/ac
- Near Field Communication (NFC)
- Yes
- Display & Graphics
- Display Screen
- Yes
- Screen Size
- 7.6 cm (3")
- Cutter
- Cutter
- Yes
- Cutting Method
- Automatic
- Cut Type
- Full/Partial Cut
- Cutter Life
- 2200000 Cuts
- Media Types & Handling
- Media Type
- Receipt
- Media Sensor
- Paper End Sensor
- Cover Open Sensor
- Paper Near End Sensor
- Media Thickness
- 80 µm
- Maximum Roll Diameter
- 83 mm
- Software
- Operating System Supported
- iOS
- Android
- Windows
- Mac® OS x
- GNU (Linux)
- Power Description
- Power Source
- Power Adapter
- Environmental Conditions
- Operating Temperature
- 5°C - 45°C
- Operating Relative Humidity
- 10% - 90%
- Physical Characteristics
- Color Family
- White
- Product Color
- White
- Height
- 129 mm
- Width
- 127 mm
- Depth
- 128 mm
- Weight (Approximate)
- 1.30 kg
- Miscellaneous
- Package Contents
- OmniLink TM-m30III-H POS Thermal Receipt Printer
- Power Supply PS-190 with AC Cable
- Starter Receipt Paper Roll
- Setup Guide
- 58 mm Roll Paper Guide
- Cables Included
- AC
- Platform Supported
- PC
- Android
- Mac
- Handheld
- Energy Star
- Yes
- Noise Level
- 53 dB
- Environmental Compliance
- Restriction of Hazardous Substances (RoHS)
