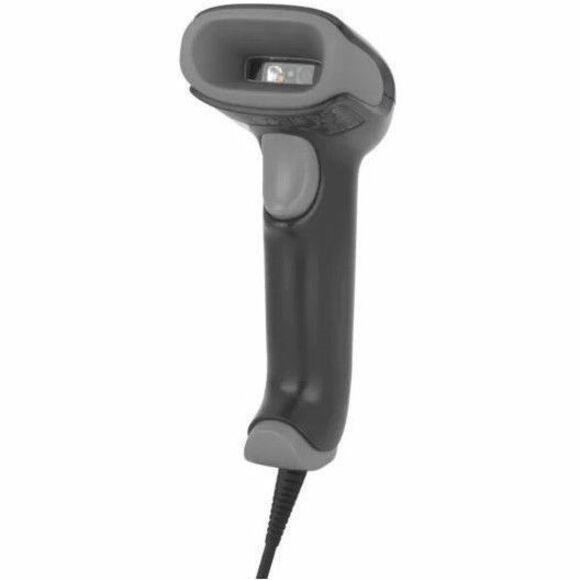

Designed for retail environments requiring an accurate 2D scanning solution in a durable form factor, the Voyager XP 1470g scanner delivers scanning capability on traditional barcodes and digital screens - even on damaged and difficult-to-read codes.
With durability and a more powerful scan capability than previous models, the Voyager XP 1470g scanner is the perfect option for workflows that include 1D and 2D barcode reading and require a more robust and reliable solution. The Voyager XP 1470g scanner combines added durability and better scan capability at the same competitive price point as its predecessor. The scanner's extended scan distance will reach right to the bottom of the cart without bending and wasted time at the checkout.
Built on the platform of Honeywell's iconic Voyager series handheld scanners, the Voyager XP 1470g scanner is fully backward-compatible with existing Voyager accessories, reducing total cost of ownership.
Engineered to 30 drops at 1.8 m (6 ft) and 1,000 tumbles at 0.5 m (1.6 ft), the Voyager XP 1470g scanner is built to withstand busy point-of sale scanning with much better accuracy than comparable solutions.
- General Information
- Manufacturer
- Honeywell International, Inc
- Manufacturer Website Address
- http://www.honeywell.com/sites/uk/
- Brand Name
- Honeywell
- Product Line
- Voyager XP
- Product Type
- Barcode Scanner Kit
- Warranty
- Limited Warranty
- 5 Year
- Technical Information
- Connectivity Technology
- Cable
- Scanning Capability
- 1D
- 2D
- Barcode Symbology Supported
- Reads standard 1D, PDF, 2D, and DotCode symbologies
- Scan Pattern
- Area
- Scanner Range
- Standard Range
- Scanning Distance
- 401.32 mm
- Field of View (Horizontal)
- 39°
- Field of View (Vertical)
- 27°
- Reading Angle (Skew)
- 70°
- Reading Angle (Pitch)
- 65°
- Reading Angle (Roll)
- 180°
- Motion Tolerance
- 701.04 mm/s
- Maximum Ambient Light
- 100000 lux
- Drop Specification
- 30 1.8 m (6 ft) drops to concrete
- Minimum Print Contrast
- 15%
- Minimum Element Resolution (Code 39)
- 0.13 mm
- Minimum Element Resolution (DataMatrix)
- 0.25 mm
- Minimum Element Resolution (PDF417)
- 0.17 mm
- Image Sensor Resolution
- 1040 x 720
- Air Electrostatic Discharge (+/-)
- 15kV
- Interfaces/Ports
- Host Interface
- USB
- Power Description
- Maximum Operating Power Consumption
- 2 W
- Standby Current
- 90 mA
- Environmental Conditions
- Operating Temperature
- 0°C to 50°C
- Storage Temperature
- -40°C to 60°C
- Humidity (Non-condensing)
- 0% to 95%
- Physical Characteristics
- Form Factor
- Handheld
- Color Family
- Black
- Product Color
- Black
- Durability
- Drop Resistant
- Height
- 82 mm
- Width
- 169 mm
- Length
- 62 mm
- Weight (Approximate)
- 130 g
- Miscellaneous
- Ingress Protection (IP) Rating
- IP52
- Application/Usage
- Retail
- Self-checkout
