- General Information
- Manufacturer
- Hewlett Packard Enterprise
- Manufacturer Website Address
- http://www.hpe.com
- Brand Name
- HPE
- Product Series
- 1820
- Product Type
- Ethernet Switch

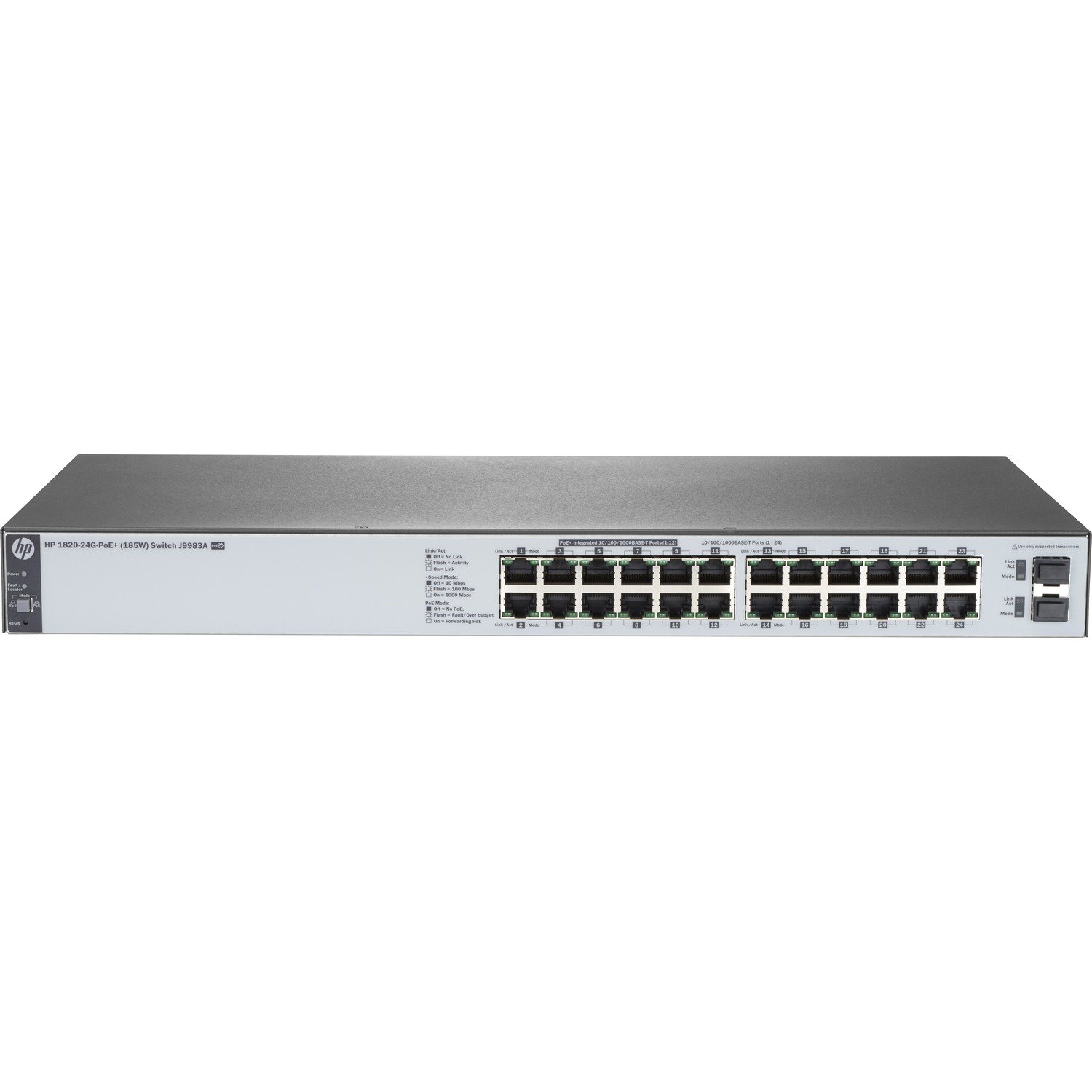

HP 1820 Switch Series devices are basic smart-managed, fixed-configuration Gigabit Ethernet Layer 2 switches designed for small businesses looking for key features in an easy-to-administer solution.
The series consists of 6 switches including 8-, 24-and 48 port Gigabit Ethernet switches and 8-, 24-, and 48 port Gigabit PoE+ models each providing non-blocking Gigabit per port performance. Some models include SFP ports for fiber connectivity and some are fanless, making them ideal for office deployments. All 1820 Switches support flexible installation options, including mounting on wall, under table, or on desktop. The 8-port Gigabit Ethernet model can be powered by an upstream Power over Ethernet (PoE) switch for environments where no line power is available.
These Gigabit switches are plug-and-play out of the box, yet network operation can be fine-tuned through features available from a simple web browser-based GUI, if necessary. Customizable features include VLANs, Rapid Spanning Tree, IGMP Snooping, link aggregation trunking and DSCP QoS policies. All models include the latest energy-saving capabilities, including Energy Efficient Ethernet (EEE) and idle-port power down.
- Interfaces/Ports
- Total Number of Network Ports
- 24
- Token Ring Port
- No
- LRE Port
- No
- Uplink Port
- No
- Bypass
- No
- Modular
- No
- Management Port
- No
- USB
- No
- Number of PoE+ (RJ-45) Ports
- 12
- Number of Network (RJ-45) Ports
- 12
- Port/Expansion Slot Details
- 12 x Gigabit Ethernet Network
- 2 x Gigabit Ethernet Expansion Slot
- 12 x Gigabit Ethernet PoE+
- Media & Performance
- Media Type Supported
- Twisted Pair
- Optical Fiber
- Ethernet Technology
- Gigabit Ethernet
- Network Technology
- 10/100/1000Base-T
- 1000Base-X
- I/O Expansions
- Total Number of Expansion Slots
- 2.0
- Expansion Slot Type
- SFP (mini-GBIC)
- Shared SFP Slot
- No
- Number of SFP Slots
- 2
- Network & Communication
- Layer Supported
- 2
- Management & Protocols
- Manageable
- Yes
- Management
- Web based management
- DHCP
- VLAN
- QoS
- Memory
- Standard Memory
- 128 MB
- Memory Technology
- SDRAM
- Flash Memory
- 16 MB
- Reliability
- MTBF
- 565195.20 Hour
- Power Description
- PoE (RJ-45) Port
- Yes
- PoE Budget
- 370 W
- Power Source
- Power Supply
- Physical Characteristics
- Color Family
- Grey
- Product Color
- Grey
- Compatible Rack Unit
- 1U
- Form Factor
- Rack-mountable
- Wall Mountable
- Under Table
- Desktop
- Height
- 43.9 mm
- Width
- 442.5 mm
- Depth
- 246.1 mm
- Weight (Approximate)
- 3.31 kg
- Miscellaneous
- Certifications & Standards
Safety:
- UL 60950-1
- CAN/CSA 22.2 No. 60950-1
- EN 60825
- IEC 60950-1
- EN 60950-1
Emissions:
- FCC Class A
- EN 55022/CISPR-22 Class A
- VCCI Class A
- Generic: EN 55024, CISPR 24
- EN: EN 55024, CISPR 24
- ESD: IEC 61000-4-2
- Radiated: IEC 61000-4-3
- EFT/Burst: IEC 61000-4-4
- Surge: IEC 61000-4-5
- Conducted: IEC 61000-4-6
- Power frequency magnetic field: IEC 61000-4-8
- Voltage dips and interruptions: IEC 61000-4-11
- Harmonics: EN 61000-3-2, IEC 61000-3-2
- Flicker: EN 61000-3-3, IEC 61000-3-3
- 802.1D Spanning Tree Protocol
- 802.1p Priority
- 802.1Q VLANs
- 802.1W Rapid Spanning Tree Protocol
- 802.3ad Link Aggregation Control Protocol (LACP)
- 802.3x
- 802.3
- 802.3u
- 802.3ab
- 802.3z
