- General Information
- Manufacturer
- Kramer Electronics LTD
- Manufacturer Website Address
- http://www.kramerelectronics.com
- Brand Name
- Kramer
- Product Type
- Signal Repeater
The PT-1C is an EDID processor for HDMI signals. It allows you to lock EDID signals and to support or not support HDCP, multi-channel audio or deep color signals that may or may not be compatible with the display.
- Max. Data Rate - 10.2Gbps (3.4Gbps per data channel), 4K compatible.
- HDMI Compatible.
- HDCP Compliant.
- Line Powered Device - Power taken from the HDMI line, no power supply is needed.
- Indicator - Power LED.

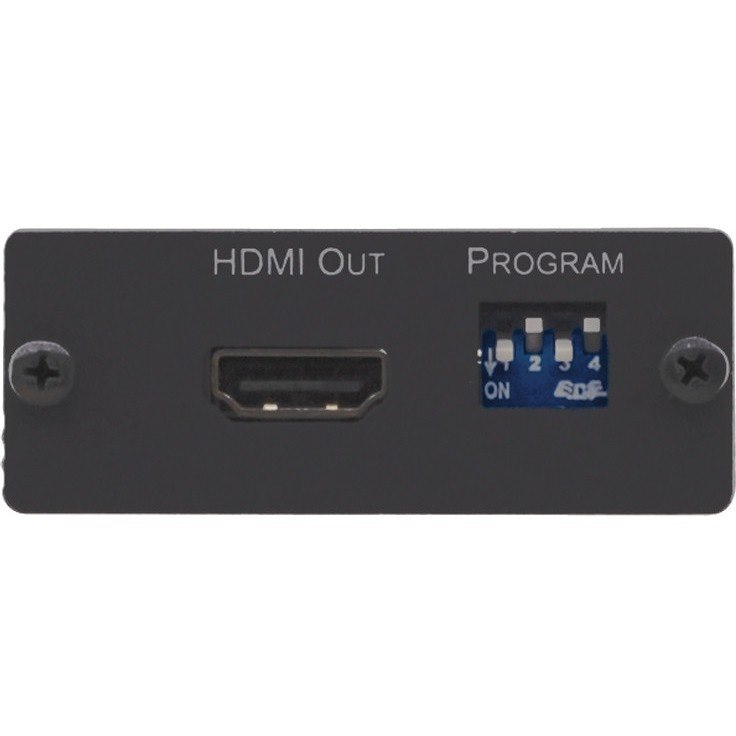

- Controls - Four program DIP-switches control desired functions.
- Size - Ultra-Compact Pico TOOLS™ - 4 units can be rack mounted side-by-side in a 1U rack space with the optional RK-4PT rack adapter.
- Interfaces/Ports
- HDMI In
- Yes
- HDMI Out
- Yes
- Number of HDMI Inputs
- 1
- Number of HDMI Outputs
- 1
- Physical Characteristics
- Height
- 24.1 mm
- Width
- 62.2 mm
- Depth
- 52.3 mm
- Weight (Approximate)
- 40 g
