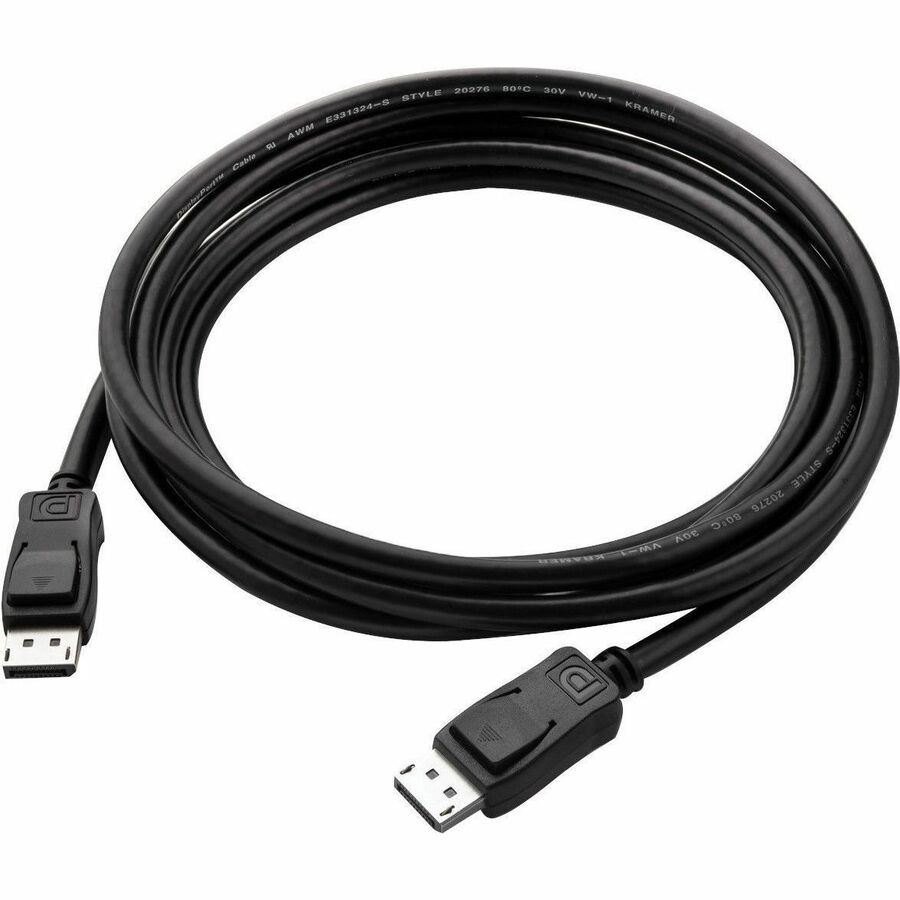

C-DPU is a high-resolution DisplayPort cable for video signals up to 8K@60Hz resolution (7680 × 4320) supporting the DisplayPort 1.4 standard. C-DPU supports an HBR3 (High Bit Rate 3) bandwidth of up to 32.4 Gbps (8.1 Gbps per channel). The cable is triple shielded for superior noise immunity.
- High-Performance Professional Cable - supports resolutions up to 8K@60Hz and an HBR3 (High Bit Rate 3) bandwidth of up to 32.4 Gbps.
- Content Protection Support - DPCP (DisplayPort Content Protection) and HDCP 2.2.
- Daisy Chain Multiple Monitors - With MST (Multi-Stream) support.
- Display Stream Compression 1.2-DSC
- Secure Connections - Includes molded DisplayPort connectors with latches.
- Quality Construction - Triple shielded for superior noise immunity.
- Backward Compatibility - Compatible with DisplayPort 1.2 and 1.1.
- Varied Selection of Lengths - Available in versions of 0.9 to 3.0m (3 to 10ft).
- General Information
- Manufacturer
- Kramer Electronics LTD
- Manufacturer Website Address
- http://www.kramerelectronics.com
- Brand Name
- Kramer
- Product Type
- A/V Cable
- Technical Information
- Cable Type
- DisplayPort
- Cable Length
- 1.83 m
- Connector Type on First End
- DisplayPort 1.4 Digital Audio/Video
- Connector Gender on First End
- Male
- Connector on First End Details
- 1 x DisplayPort 1.4 Digital Audio/Video - Male
- Connector Type on Second End
- DisplayPort 1.4 Digital Audio/Video
- Connector Gender on Second End
- Male
- Connector on Second End Details
- 1 x DisplayPort 1.4 Digital Audio/Video - Male
- Connector Plating
- Nickel
- Contact Plating
- Gold
- Shielding
- Yes
- Jacket Type
- VW-1
- Device Supported
- Audio/Video Device
- American Wire Gauge
- 28 AWG
- Data Transfer Rate
- 32.4 Gbit/s
- Supported Resolution
- 7680 x 4320
- Features
- Triple Shielded
- High Bit Rate 3 (HBR3)
- DPCP
- HDCP 2.2
- Multi-Stream Transport (MST) Support
- Display Stream Compression (DSC) 1.2
- Molded
- Latching Connector
- EMI/RF Protection
- Physical Characteristics
- Jacket Color
- Black
- Jacket Material
- Polyvinyl Chloride (PVC)
