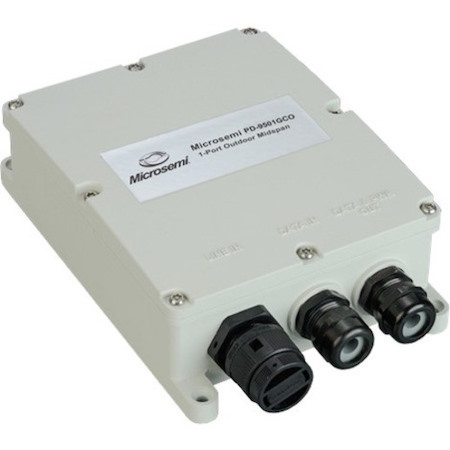

The single-port midspan offers a cost effective, IEEE 802.3bt Type3 compliant solution and Pre-bt support for outdoor installations, guaranteeing 60 Watts of power and ensuring safe and reliable operation in outdoor environment of any standard PoE data terminal. The PD-9501GCO also offers surge protection for both the AC and the PoE ports ensuring the indoor equipment is protected from outdoor surges.
- General Information
- Manufacturer
- Microchip Technology Inc.
- Manufacturer Website Address
- http://www.microchip.com
- Brand Name
- Microchip
- Product Type
- PoE Injector
- Technical Information
- Protection Type
- Surge Protection
- Power Description
- Input Voltage
- 120 V AC
- 230 V AC
- Maximum Output Voltage
- 54 V DC
- Minimum Frequency
- 50 Hz
- Maximum Frequency
- 60 Hz
- Maximum Output Power
- 60 W
- Interfaces/Ports
- Output Ports
- 1 x Gigabit PoE
- Physical Characteristics
- Form Factor
- External
- Height
- 170 mm
- Width
- 140 mm
- Depth
- 60 mm
- Weight (Approximate)
- 1.40 kg
- Miscellaneous
- Additional Information
- Product Type | 60W PoE
- PoE Systems Type | Midspan
- PoE Standard | IEEE 802.3bt
- Power Per Port | 60W
- Operating Environment | Outdoor
- Data Rate | 1 Gbps
- Input Power | AC
- Operating Humidity (%) | 95
- Operating Temperature (°C) | -40 to 65
- Compatibility
- Compatible Devices:
- LAN Access Points
- Security Network Cameras
- IP Terminals
- Certifications & Standards
- IEEE 802.3bt
- IP67
- IEEE 802.3af
- IEEE 802.3at
- CE
- FCC Part 15, Class B,
- EN 55032 Class B (Emissions)
- EN 55024
- EN61000-4-5: Class 5 (AC lines 6kV CM/DM)
- VCCI
- UL
- IEC
- EN 60950-1 (ed.2)
- UL 60950-22
- EN60529
- Level IP67; NEMA 250
- Level 4X ASTM B-117 Corrosion Resistance
- Environmentally Friendly
- Yes
