- General Information
- Manufacturer
- Peerless Industries, Inc
- Manufacturer Website Address
- http://www.peerless-av.eu.com
- Brand Name
- Peerless-AV®
- Product Line
- SmartMount®
- Product Series
- SA740P
- Packaged Quantity
- 1
- Product Type
- Mounting Arm

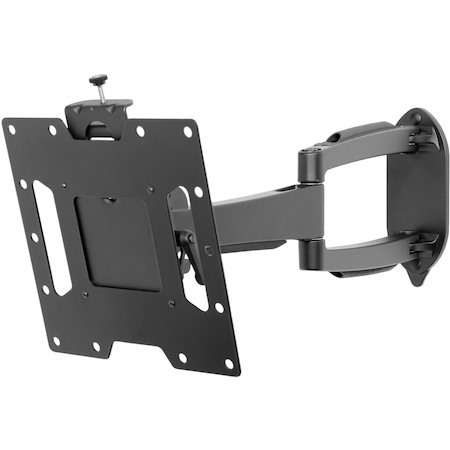

The SmartMount® Articulating Wall Mount series offers the most versatile installation features and mounting options. Vertical adjustment ability allows for post installation leveling, making it easier than ever to find the perfect display position. With SA740P, extend the display up to 21.8" (554mm) or fully-retract it to just 3.3" (77mm) from the wall for the perfect viewing position. The display can now simply be installed by a single person with the Hook-and-Hang™ system. One-Touch™ tilt technology offers +15°/-5° vertical tilt movement for the ideal viewing angle. Integrated cable management protects, contains and conceals cables for a clean installation.
- Product Information
- Device Supported
- Flat Panel Display
- Number of Displays Supported
- 1
- Maximum Load Capacity
- 36.29 kg
- Minimum Screen Size Supported
- 55.9 cm
- Maximum Screen Size Supported
- 109.2 cm (43")
- Features
- Retractable
- Hook-and-Hang Design
- Adjustable Viewing Angle
- Vertical Tilt
- Cable Management
- Mount Function
- Wall Mount
- Mount Surface
- Wall
- Physical Characteristics
- Color Family
- Black
- Product Color
- Black
- Finishing
- High Gloss
- VESA Mount Compatible
- Yes
- Mounting Pattern
- 100 x 100
- 200 x 100
- 200 x 200
- Product Material
- Anodized Aluminium
- Steel
- Height
- 31.8 cm
- Weight (Approximate)
- 3.30 kg
- Miscellaneous
- Indoor/Outdoor
- Indoor
- Additional Information
- Comes with VESA 100mm/200mm/200 x 200mm screen adapter plate
- Three pivot points for virtually limitless adjustment that can be tightened to restrict movement
- Adjustable roll of 7º in either direction allows screen to be easily leveled
- Built-in internal cord management conceals wires for a clean look
- Scratch resistant epoxy finish
- Compatibility
22" to 43" LCD Screens
- Certifications & Standards
- RoHS, TAA, VESA, UL, OSHPD
- UL Listed
- Yes
