- General Information
- Manufacturer
- Perle Systems, Inc
- Manufacturer Website Address
- http://www.perle.com
- Brand Name
- Perle
- Product Type
- Transceiver/Media Converter

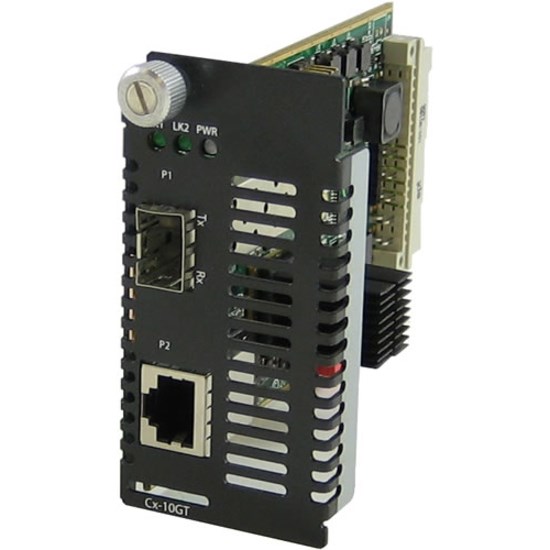

Installed in a high density MCR1900 Media Converter Chassis, Perle C-10GT Media Converter Modules transparently connect 10GBase-T Ethernet links over multimode or single mode fiber. Each 10GbE Media Converter comes with one RJ45 10GBase-T port and an empty slot for one SFP+ or XFP module.
Copper to Fiber conversion is achieved by inserting XFP or SFP+ fiber transceivers that support multimode and single-mode fiber, including CWDM/DWDM wavelengths. Copper to copper is achieved by inserting SFP+ Direct Attach Cable (DAC), also known as twinax, or XFP 10Gbase-CX4 transceivers.
- Interfaces/Ports
- Total Number of Ports
- 1
- Network (RJ-45)
- Yes
- DVI
- No
- USB
- No
- Parallel Port
- No
- Digital Audio
- No
- Digital Audio/Video
- No
- Management Port
- No
- Number of Network (RJ-45) Ports
- 1
- Media & Performance
- Media Type Supported
- Twisted Pair
- Maximum Distance Supported
- 100 m
- I/O Expansions
- Expansion Slot Type
- XFP
- Number of XFP Slots
- 1
- Network & Communication
- Ethernet Technology
- 10 Gigabit Ethernet
- Network Technology
- 10GBase-T
- Physical Characteristics
- Form Factor
- Internal
- Miscellaneous
- Compatibility
- Perle MCR1900 Media Converter Chassis
