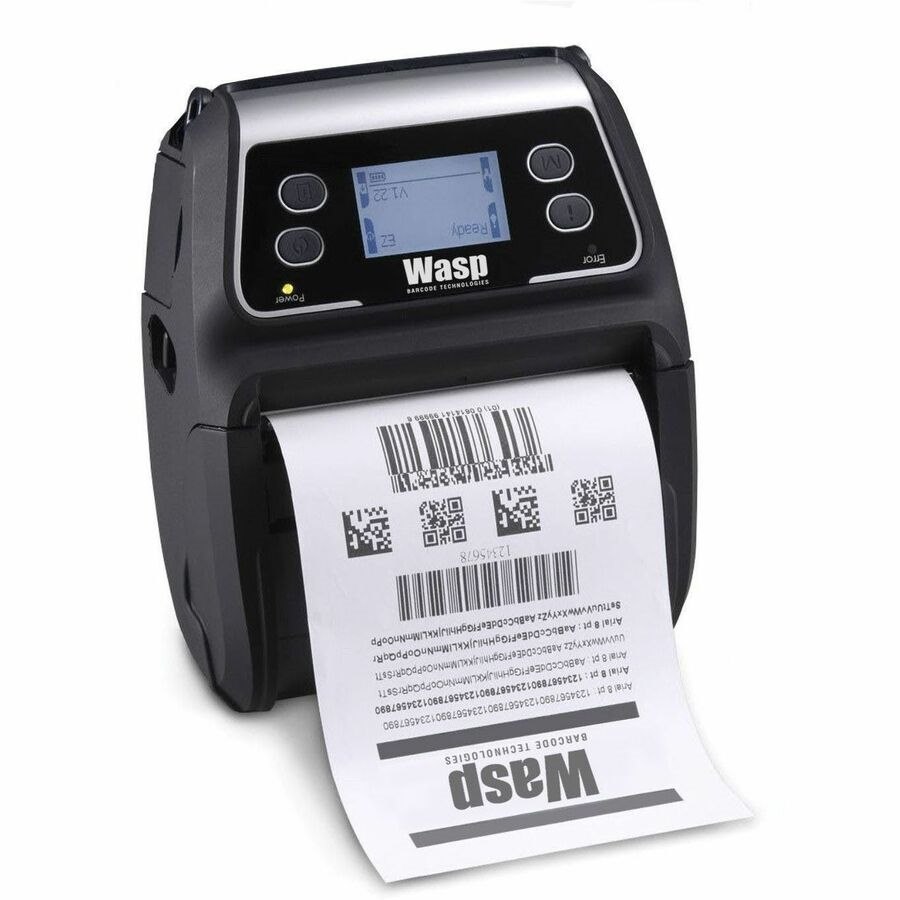

WPL4M | Mobile Label Printer
Quick And Reliable Portable Printer With a Ruggedized Design For the Mobile Worker.
Key Features
- Up to 4 inches per second (102 mm) print speed
- 16 MB Flash memory, 32 MB SDRAM
- microSD Flash memory expansion up to 4 GB
- Portable and user-friendly design
- USB 2.0, Bluetooth and 802.11 a/b/g/n Wireless interfaces (depending on the model)
- Label capacity up to 2.5 inches (67.3 mm) OD
- WPL firmware for plug-n-play ease
- General Information
- Manufacturer
- Wasp Barcode Technologies
- Manufacturer Website Address
- http://www.waspbarcode.co.uk
- Brand Name
- Wasp
- Product Type
- Direct Thermal Printer
- Warranty
- Limited Warranty
- 2 Year
- Technical Information
- Recommended Use
- Label Print
- Maximum Mono Print Speed
- 102 mm/s
- Maximum Print Resolution (dpi)
- 203
- Maximum Print Length
- 2286 mm
- Maximum Print Width
- 104 mm (4.09")
- Barcode Symbology Supported
- 1D
- Code 11
- Code 39
- Code 93
- Code 128 UCC
- Code 128 (A/B/C)
- Codabar
- Interleaved 2 of 5
- EAN-8
- EAN-13
- EAN-14
- EAN-128
- UPC-E
- UPC-A
- EAN and UPC 2(5) Digits Add-On
- MSI
- Plessey
- POSTNET
- China Post
- ITF-14
- Telepen
- Deutsche Post Identcode
- Deutsche Post Leitcode
- LOGMARS
- 2D
- Code 49
- PDF-417
- Micro PDF-417
- Maxi Code
- Data Matrix
- QR Code
- AZTEC
- CODABLOCK F Mode
- GS1 DataBar
- Application/Usage
- Warehouse
- Retail
- Mobile
- POS System
- Distribution Center
- Packaging Label
- Features
- Rugged
- Plug and Play
- Lightweight
- Dust Resistant
- Water Resistant
- Mobile Device Printing
- Yes
- Connectivity Technology
- Wired & Wireless
- Print Technology
- Direct Thermal
- Memory
- Standard Memory
- 32 MB
- Flash Memory
- 16 MB
- Interfaces/Ports
- Serial Port
- Yes
- USB Host
- Yes
- USB
- Yes
- USB Standard
- USB 2.0
- Network & Communication
- Bluetooth
- Yes
- Wireless LAN
- Yes
- Wireless LAN Standard
- IEEE 802.11a/b/g/n
- Media Types & Handling
- Media Type
- Label
- Continuous Label
- Die-cut Label
- Black Mark
- Fanfold
- Notch
- Media Sensor
- Transmissive Media Sensor
- Gap Sensor
- Black Mark Sensor
- Reflective Media Sensor
- Head Open Sensor
- Media Thickness
- 160 µm
- Maximum Roll Diameter
- 25.40 mm
- Maximum Label Width
- 112 mm
- Fonts & Emulation
- Language Emulation
- WPL
- EPL
- ZPL
- ZPL II
- ESC/POS
- CPCL
- Software
- Operating System Supported
- Android
- Windows
- Power Description
- Power Source
- Battery
- Battery Information
- Battery Chemistry
- Lithium Ion (Li-Ion)
- Battery Capacity
- 5800 mAh
- Environmental Conditions
- Operating Temperature
- -10°C - 50°C
- Operating Relative Humidity
- 10% - 90%
- Storage Temperature
- -40°C - 60°C
- Storage Relative Humidity
- 10% - 90%
- Physical Characteristics
- Form Factor
- Portable
- Height
- 191.6 mm
- Width
- 160 mm
- Depth
- 79 mm
- Weight (Approximate)
- 1.10 kg
- Miscellaneous
- Package Contents
- Mobile Label Printer
- Belt Clip
- Li-ion Battery
- Power Cord
- Power Supply
- CD With Driver
- Manual
- Compatibility
- iPhone
- iPad
- Platform Supported
- iOS
- Android
- Environmental Compliance
- Restriction of Hazardous Substances (RoHS)
- Waste Electrical and Electronic Equipment Directive (WEEE)
