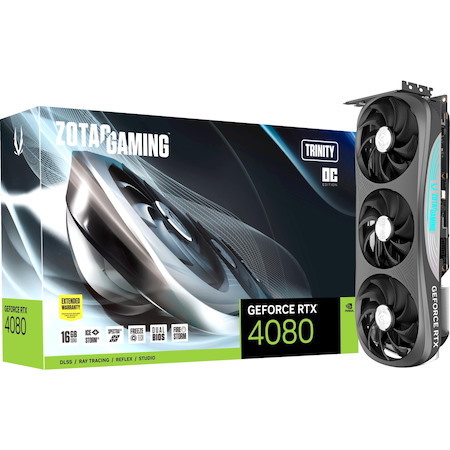

Leveraging an all-new aerodynamic inspired design, the ZOTAC GAMING GeForce RTX 4080 16GB Trinity OC utilizes the world's most advanced gaming GPU powered by NVIDIA DLSS 3, ultra-efficient Ada Lovelace architecture, and full ray tracing. Using cutting-edge cooling technologies derived from the flagship model, the Trinity OC packs the punch to offer gamers the needed blistering FPS in the latest titles.
Feature Highlights:
- NVIDIA Ada Lovelace Streaming Multiprocessors: Up to 2x performance and power efficiency
- 4th Generation Tensor Cores: Up to 2X AI performance
- 3rd Generation RT Cores: Up to 2X ray tracing performance
- Strong Performance
- IceStorm 2.0 Advanced Cooling
- FREEZE Fan Stop, Active Fan Control, Dual BIOS
- SPECTRA 2.0 RGB Lighting (compatible with external LED strip)
- Metal Backplate
- Bundled with GPU Support Bracket
- All-new FireStorm Utility Download here
- 3 years standard warranty + 2 years after registration.
GEFORCE RTX 4080 16GB AMP
EXTREME AIROTHE ULTIMATE ZOTAC GAMING GPU.
GEFORCE RTX 4080 16GB TRINITY (OC)
FAST PERFORMANCE. STRONG COOLING. ENDURING DURABILITY.
THE AIRO EVOLUTION
Inspired by aerodynamic concepts, the ZOTAC GAMING GeForce RTX 4080 utilizes an AIR-Optimized design to bring out the best in the world's most advanced gaming GPU powered by the NVIDIA Ada Lovelace architecture. For gamers and enthusiasts who desire the ultimate performance, the AMP Extreme AIRO graphics card has everything to offer - from unrivalled power to outstanding thermal and noise performance.
ADVANCED COOLING
Refined in every aspect, IceStorm 2.0 is our advanced cooling system that pushes the limit of GPU performance in the most graphically demanding PC games.
CUT THROUGH THE AIR
Mounted with triple 110mm large fans featuring wide curved blades that have twice the blade size of the previous generation. Each curvature and stripe on the blade is meticulously designed to maximize airflow and air pressure.
UP TO 50% LARGER FAN BLADE
compared to last generation
UP TO 60% TALLER FAN
compared to last generation
DEEPER FAN SHROUD
enabling more focused and stable airflow
MORE POWERFUL HEATSINK
Filling the massive 3.5-slot footprint is a colossal aluminum fin stack ready for the most intense thermal challenges.
UP TO 30% THIKKER HEATSINK
compared to last generation
OPTIMIZED DISTRIBUTION
9 precision-machined copper heatpipes are shifted into a vertical layout for increased surface contact with the GPU, extracting more heat to disperse along the full length of the heatsink.
- General Information
- Manufacturer
- ZOTAC International
- Manufacturer Website Address
- http://www.zotac.com
- Brand Name
- Zotac
- Product Type
- Graphic Card
- Warranty
- Limited Warranty
- 3 Year
- Technical Information
- API Supported
- DirectX 12 Ultimate
- OpenGL 4.6
- Number of Monitors Supported
- 4
- CUDA Cores
- 9728
- Processor & Chipset
- Chipset Manufacturer
- NVIDIA
- Chipset Line
- GeForce
- Chipset Series
- RTX
- Chipset Model
- RTX 4080
- GPU Boost Clock
- 2.52 GHz
- Memory
- Standard Memory
- 16 GB
- Memory Technology
- GDDR6X
- Bus Width
- 256 bit
- Interfaces/Ports
- Host Interface
- PCI Express 4.0 x16
- DisplayPort
- Yes
- Number of DisplayPort Outputs
- 3
- HDMI
- Yes
- Number of HDMI Outputs
- 1
- Power Description
- Power Supply Wattage
- 750 W
- Power Connector
- 1x 12-pin
- Physical Characteristics
- Slot Space Required
- Quad
- Form Factor
- Plug-in Card
- Cooler Type
- Active Cooler
- Height
- 71.4 mm
- Width
- 150.1 mm
- Length
- 356.1 mm
- Miscellaneous
- Package Contents
- GAMING GeForce RTX 4080 16GB Trinity OC Graphic Card
- GPU Support Stand
- 3-pin RGB Header Cable
- 3 x 8-pin-to-12VHPWR Cable
- User Manual
- Platform Supported
- PC
