Featuring 6 spatial streams (4x4 in 6 GHz/5 GHz selectable, 2x2 in 2.4 GHz) with the maximum data rate of 5.4 Gbps, the Zyxel WAX620D-6E is the dual-radio access point with a BandFlex radio that can support either 5 GHz or 6 GHz by configuration, making it the most economical choice to fit into your existing 5 GHz coverage as well as futureproofing the use of 6 GHz.
WAX620D-6E includes all the benefits of WiFi 6 capabilities like OFDMA, MU-MIMO, BSS Coloring, and brings them into the brand-new, interference-free 6 GHz that more than doubles the WiFi capacity to deliver multi-gigabit speed, and low-latency connections.
The brand-new, interference-free 6GHz band presents a solution to quenching the thirst for today's network hungry for more bandwidth, making it a perfect choice for high-density WiFi and emerging technology connectivity. To reach the full potential of the new band, Zyxel 6E Boost, using the high-gain 4x4 streams in 6 GHz, increases the maximum gains in transmit beamforming and receive MIMO to extend its range and ensure the highest performance is delivered.
The WAX620D-6E is ideal in high density environments such as transport hubs, exhibition halls, schools, offices, hotels, restaurants, or any other organizations that need to accommodate a large number of devices as it can offer the optimal premium service for everyone, every time they connect to WiFi.
Benefits | WiFi 6E - bringing WiFi 6 into 6 GHz spectrum
WiFi 6E is the WiFi 6 extended into 6 GHz spectrum. It includes all the WiFi 6 features, plus the following:
- 2.5X More Capacity: 2.5 times more spectrum with the extended 6 GHz band with no legacy devices
- Superwide Channels: Utilizing up to seven additional superwide 160 MHz channels in 6 GHz for bandwidth-demanding applications like VR/AR, WiFi calling, and high-definition video streaming
- No Interference: No interference from microwaves and the non-6E devices. Only Wi-Fi 6E capable devices can use the 6 GHz band.
People without RF expertise may not realize that installing an AP optimized for ceiling-mount as wall-mount may cause the ceiling-mount radiation pattern to interfere with other devices up- or downstairs as well as to deliver signals with shorter-than-expected range for its clients. Designed with the innovative "Dual-optimized" antenna, the WAX620D-6E adapts to both wall- and ceiling-mount installations. Thus, users can switch between the two optimized antenna modes easily to fit either situation. To boost WiFi speeds for your network, the WAX620D-6E is definitely an excellent choice.
- General Information
- Manufacturer
- ZYXEL Communications Corp.
- Manufacturer Website Address
- http://www.zyxel.co.uk
- Brand Name
- ZYXEL
- Packaged Quantity
- 1
- Product Type
- Wireless Access Point
- Technical Information
- Wireless LAN Standard
- IEEE 802.11 a/b/g/n/ac/ax
- Network Band
- Dual Band
- Frequency Band
- 2.40 GHz
- 5 GHz
- 6 GHz
- Total Number of Antennas
- 2
- Number of Internal Antennas
- 2
- Wireless Transmission Speed
- 5.40 Gbit/s
- MIMO Technology
- Yes
- Beamforming Technology
- Yes
- Data Encryption
- Yes
- Encryption Standard
- WEP
- WPA
- WPA2-PSK
- WPA3
- WPA2
- WPA3-ENT

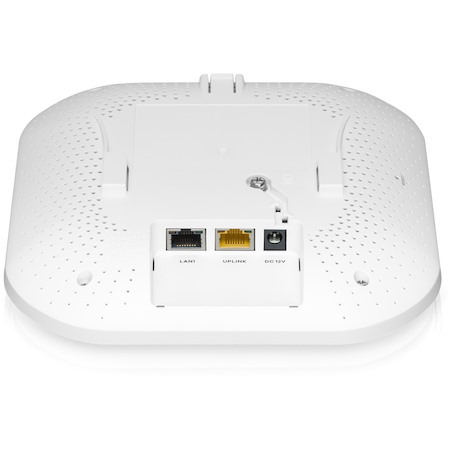

- Interfaces/Ports
- Ethernet Technology
- Gigabit Ethernet
- 2.5 Gigabit Ethernet
- Number of Network (RJ-45) Ports
- 2
- PoE PD Port
- Yes
- Physical Characteristics
- Form Factor
- Wall Mountable
- Ceiling Mountable
- T-bar Mount
- External
- Antenna Form Factor
- Internal
- Height
- 42 mm
- Width
- 180 mm
- Depth
- 180 mm
- Weight (Approximate)
- 650 g
