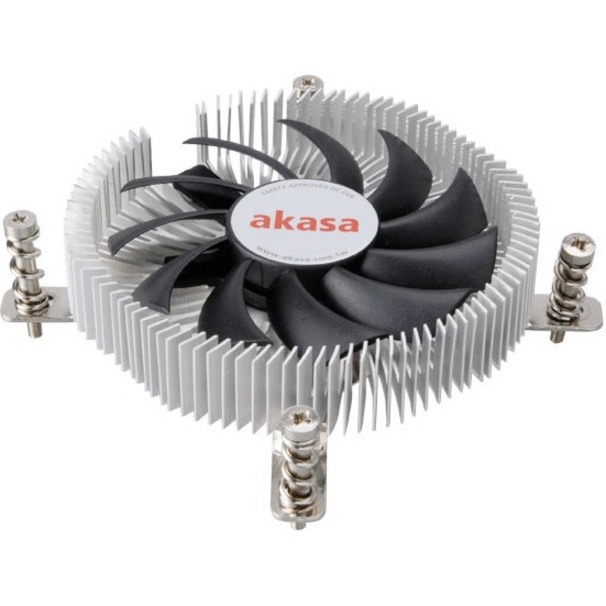

Ultra compact and low noise cooler for Intel Core 2 Duo and Core i3, i5 CPU's. The low profile design with embedded fan makes it a perfect solution for Thin mini-ITX, HTPC and SFF systems.
Aluminium heatsink and twin ball bearing fan ensure high efficiency and long life. High engineered multi directional aluminium heatsink maximises heat dissipation and PWM fan provides optimal CPU, motherboard and VRM cooling with minimal noise levels.
Pre-applied spring-loaded screws and motherboard backplate guarantee safe retention. Pre-applied high performance thermal compound ensures clean and easy installation.
- General Information
- Manufacturer
- Akasa (Europe) Ltd
- Manufacturer Website Address
- http://www.akasa.co.uk
- Brand Name
- Akasa
- Product Type
- Cooling Fan/Heatsink
- Fan Information
- Number of Fans
- 1
- Fan Bearing Type
- Dual Ball Bearing
- Fan Speed (Max)
- 3000 rpm
- Maximum Airflow
- 39.84m³/h
- Airflow Details
1 x 23.45CFM
- Heatsink Information
- Mount Type
- Screw Mount
- Compatible Intel Socket
- T LGA-775
- H3 LGA-1150
- H2 LGA-1155
- H LGA-1156
- Interfaces/Ports
- Connectors
- 4-pin PWM
- Power Description
- Input Voltage
- 12 V DC
- Physical Characteristics
- Heatsink Material
- Aluminium
- Maximum Fan Diameter
- 75 mm
- Fan Diameter Details
1 x 75mm
- Maximum Fan Thickness
- 10 mm
- Fan Thickness Details
1 x 10mm
- Height
- 21 mm
- Width
- 85.2 mm
- Depth
- 87.2 mm
- Weight (Approximate)
- 154 g
- Miscellaneous
- Compatibility
- Intel Processors:
- Core 2 Duo
- Core i3
- Core i5
- Application/Usage
- Processor
