Alcatel-Lucent OmniSwitch 6560/E
Stackable Gigabit and Multi-Gigabit Ethernet LAN Switch Family
The Alcatel-Lucent OmniSwitch™ 6560 Stackable Gigabit and Multi-Gigabit Ethernet LAN value switch family is an industry leading campus access solution for enterprise networks. With multi-gigabit ports for high-speed IEEE 802.11ac devices, 10 GigE uplinks and 20 GigE stacking, the OmniSwitch 6560 is the right solution for your next generation network.
Offering a design optimized for flexibility and scalability as well as low power consumption, the OmniSwitch 6560 is an outstanding edge solution. It uses the field-proven Alcatel-Lucent Operating System (AOS) to deliver highly available, secure, self-protective, easily managed and eco-friendly networks.
The Alcatel-Lucent OmniSwitch 6560 family is embedded with the latest technology innovations, and offers maximum investment protection.
Deployments benefiting from the OmniSwitch 6560 family are:
- Edge of small-to-mid-sized networks
- Branch office enterprise and campus workgroups
- Residential and commercially managed services applications
- General Information
- Manufacturer
- Alcatel-Lucent
- Manufacturer Website Address
- http://www.al-enterprise.com
- Brand Name
- Alcatel-Lucent
- Product Line
- OmniSwitch
- Product Series
- 6560
- Product Type
- Ethernet Switch
- Warranty
- Limited Warranty
- Lifetime
- Technical Information
- Features
- Access Control List
- Hot-swappable
- Energy Efficient
- Loop Protection
- DHCP Snooping
- In-Service Software Upgrade (ISSU)
- OpenFlow Hybrid Port Mode
- Remote Monitoring (RMON)
- High Availability Supported
- Yes
- Interfaces/Ports
- Total Number of Network Ports
- 24
- Uplink Port
- Yes
- Stack Port
- Yes
- Network (RJ-45)
- Yes
- Port/Expansion Slot Details
- 24 x 10/100/1000BASE-T Gigabit Ethernet PoE+ RJ-45 Network Port
- 2 x Gigabit Ethernet SFP Expansion Slot
- 4 x 1/10 Gigabit Ethernet SFP+ Expansion Slot
- 1 x USB Port
- 1 x Console Port
- Media & Performance
- Media Type Supported
- Twisted Pair
- Optical Fiber
- Ethernet Technology
- Gigabit Ethernet
- 10 Gigabit Ethernet
- Network Technology
- 10/100/1000Base-T
- 1000Base-X
- 10GBase-X
- Maximum Data Transfer Rate
- 1.25 GB/s
- I/O Expansions
- Total Number of Expansion Slots
- 6
- Expansion Slot Type
- SFP+
- Number of SFP Slots
- 2
- Number of SFP+ Slots
- 4
- Network & Communication
- Layer Supported
- 3
- Networking Standards
- IEEE 802.3ac
- IEEE 802.3ae
- IEEE 802.3az
- IEEE 802.3bz
- IEEE 802.1ae
- IEEE 802.1x
- IEEE 802.3af
- IEEE 802.3at
- IEEE 802.3bt
- IEEE 802.1ab
- IEEE 802.1Q
- IEEE 802.1s
- IEEE 802.1D
- IEEE 802.1w
- IEEE 802.3ad
- IEEE 802.1AX
- IEEE802.3af
- IEEE 802.1ad
- IEEE 802.1ag
- IEEE 802.3ah
- IEEE 802.3
- IEEE 802.1p
- IEEE 802.3i
- IEEE 802.3u
- IEEE 802.3x
- IEEE 802.3z
- IEEE 802.3ab
- Management & Protocols
- Manageable
- Yes
- Reliability
- MTBF
- 352000 Hour
- Power Description
- PoE (RJ-45) Port
- Yes
- PoE Budget
- 1.09 kW
- Input Voltage
- 120 V AC
- 230 V AC
- Power Source
- Power Supply
- AC
- PoE+
- Redundant Power Supply Supported
- Yes
- Power Consumption
- 42 W
- Physical Characteristics
- Compatible Rack Unit
- 1U
- Form Factor
- Rack-mountable
- Height
- 43.9 mm
- Width
- 440.2 mm
- Depth
- 350 mm
- Weight (Approximate)
- 4.88 kg
- Miscellaneous
- Package Contents

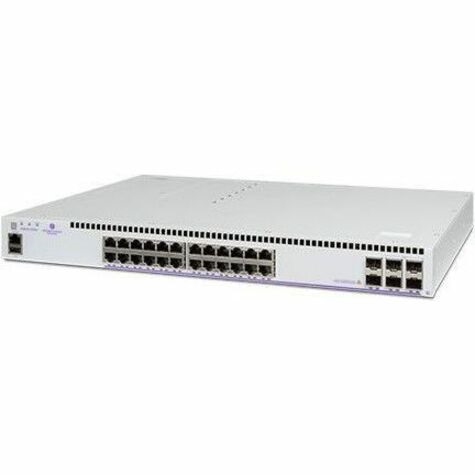

- OmniSwitch OS6560-P24X4 Ethernet Switch
- AC Power supply
- Power cord
- User guides
- 19" rack mount hardware.
- Application/Usage
- Campus
- Enterprise
- Network
- Branch Office
- Security
- Certifications & Standards
Compliance and certifications Commercial EMI/EMC
- 47 CRF FCC Part 15: 2015 Subpart B (Class A)
- VCCI (Class A limits. Note: Class A with UTP cables)
- ICES-003:2012 Issue 5, Class A
- AS/NZS 3548 (Class A) - C-Tick
- AS/NZS 3548 (Class A limits. Note: Class A with UTP cables)
- CE-Mark: Marking for European countries (Class A limits. Note: Class A with UTP cables)
CE Emission consists of:
- EN 50581: Standard for technical documentation for RoHS recast
- EN 55022 (EMI and EMC requirement)
- EN 55024: 2010 (ITE Immunity characteristics)
- ¬ EN 61000-3-2 (Limits for harmonic current emissions)
- EN 61000-3-3
- EN 61000-4-2
- EN 61000-4-3
- EN 61000-4-4
- EN 61000-4-5
- EN 61000-4-6
- EN 61000-4-8
- EN 61000-4-11
- IEEE802.3: Hi-Pot Test (2250 V DC on all Ethernet ports)
Safety agency certifications
- CDRH Laser
- Compliant with Restriction on Hazardous Substances (RoHS) and Waste Electrical and Electronic Equipment (WEEE) directives.
- EN 60825-1 Laser
- EN 60825-2 Laser
- IEC 62368-1
- UL 60950-1, 2nd Edition, Information Technology Equipment
- CAN/CSA C22.2 No. 60950-1-07, 2nd Edition, Information Technology Equipment
- IEC 60950-1, with all National Deviations
- UL-AR, Argentina
- Environmental Compliance
- Restriction of Hazardous Substances (RoHS)
- Waste Electrical and Electronic Equipment Directive (WEEE)
