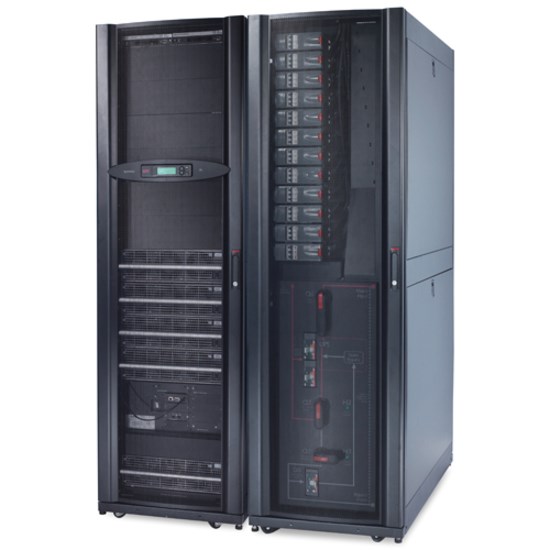

APC Symmetra PX 64kVA Tower UPS is a world class, redundant, scalable, power protection system designed to cost effectively provide high levels of availability. Seamlessly integrating into today's state-of-the-art data center designs, the Symmetra PX is a true modular system. Made up of dedicated and redundant modules - power, intelligence, battery and bypass, all engineered into a design that is easily and efficiently serviceable, this architecture can scale power and runtime as demand grows or as higher levels of availability are required.
- General Information
- Manufacturer
- Schneider Electric SA
- Manufacturer Website Address
- http://www.schneider-electric.com
- Brand Name
- APC by Schneider Electric
- Product Line
- Symmetra
- Product Series
- PX
- Product Type
- Double Conversion Online UPS
- Warranty
- Limited Warranty
- 1 Year
- Technical Information
- Plug/Connector Type
- Hard Wire 5-wire
- Receptacle Type
- Hard Wire 5-wire
- Receptacle Detail
- 1 x Hard Wire 5-wire
- Power Description
- Input Voltage
- 220 V AC
- Output Voltage
- 230 V AC
- 400 V AC
- Input Frequency
- 70 Hz
- Output Frequency
- 60 Hz
- Input Current
- 250 A
- Output Current
- 160 A
- Management
- Network Management
- SNMP Manageable
- Bypass Switch
- Automatic
- Internal
- Static
- Emergency Power OFF
- Yes
- Interfaces/Ports
- Modular Slots
- 2 x SmartSlot
- 3 x Battery
- Battery Information
- Battery Chemistry
- Lead Acid
- Backup/Run Time (Full Load)
- 6.10 Minute
- Backup/Run Time (Half Load)
- 19.60 Minute
- Typical Battery Recharge Time
- 3.50 Hour
- Physical Characteristics
- Form Factor
- Tower
- Rack Height
- 42U
- Height
- 1991 mm
- Width
- 1200 mm
- Depth
- 1070 mm
- Weight (Approximate)
- 1454 kg
- Miscellaneous
- Package Contents
- Symmetra PX 64kVA Tower UPS
- Start Up Service
- User Manual
- Web/SNMP Management Card
- 6 x Battery Modules
