- General Information
- Manufacturer
- Schneider Electric SA
- Manufacturer Website Address
- http://www.schneider-electric.com
- Brand Name
- APC by Schneider Electric
- Product Line
- Galaxy VL
- Packaged Quantity
- 1 Pack
- Product Type
- Double Conversion Online UPS

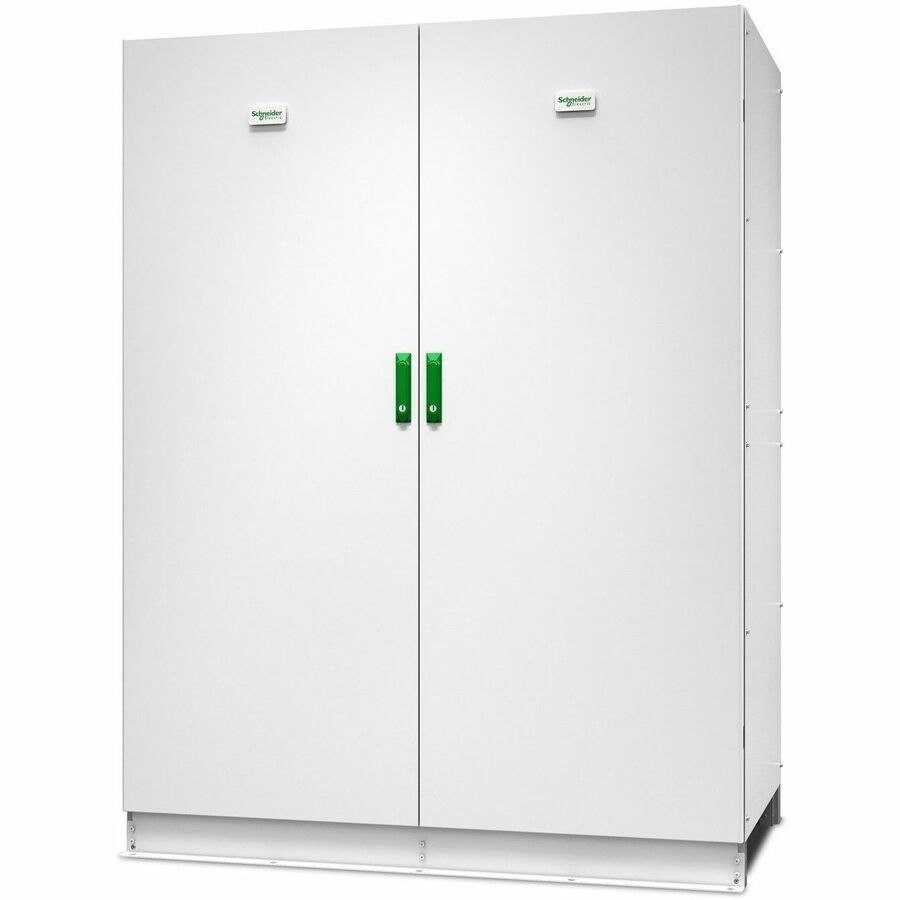

Highly efficient, modular, high-density 200kW (400/480V) 3-phase UPS that is scalable up to 500kW. It delivers top performance for medium, large, and edge data centers, as well as critical infrastructure in commercial and industrial applications. Includes 5x8 start-up service.
- Technical Information
- Phase
- Three Phase
- Application/Usage
- Hyperconverged Infrastructure (HCI)
- IT
- Data Center
- Infrastructure
- Industrial
- Commercial
- Mission Critical Equipment
- Efficiency
- 97.2%
- Power Description
- Load Capacity (VA)
- 200 kVA
- Load Capacity (Watt)
- 200 kW
- Input Voltage
- 380 V AC
- 400 V AC
- 415 V AC
- 440 V AC
- 480 V AC
- Output Voltage
- 380 V AC
- 400 V AC
- 415 V AC
- 440 V AC
- 480 V AC
- Input Frequency
- 40 Hz
- 70 Hz
- Input Power Factor
- 0.5
- Display & Graphics
- Display
- LCD
- Battery Information
- DC System Voltage
- 384 V DC
- Battery Chemistry
- Lithium Ion (Li-Ion)
- Environmental Conditions
- Maximum Operating Temperature
- 40°C
- Maximum Operating Elevation
- 3 km
- Operating Humidity
- 10%
- Storage Relative Humidity
- 80%
- Physical Characteristics
- Color Family
- White
- Product Color
- White
- Form Factor
- Modular
- Height
- 1970 mm
- Width
- 850 mm
- Depth
- 925 mm
- Weight (Approximate)
- 550 kg
- Miscellaneous
- Energy Star
- Yes
