- General Information
- Manufacturer
- Schneider Electric SA
- Manufacturer Website Address
- http://www.schneider-electric.com
- Brand Name
- APC by Schneider Electric
- Product Line
- Symmetra
- Product Series
- PX
- Product Type
- Double Conversion Online UPS

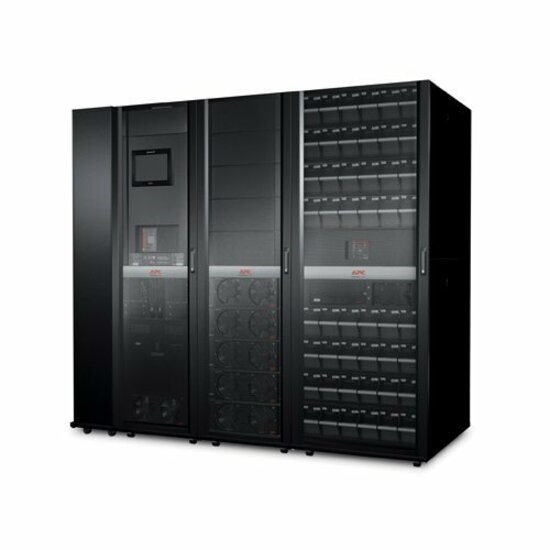

Scalable, high-efficiency 3-phase UPS with integrated maintenance bypass & sub-feed distribution. This system scales as your data center grows up to 125kW/125kVA. To support additional growth, this UPS can be easily expanded to scale to 250kW and supports up to four systems in parallel. Suitable for medium & large data center applications.
- Technical Information
- Receptacle Type
- Hard Wire 4-wire
- Hard Wire 5-wire
- Receptacle Detail
- 1 x Hard Wire 4-wire
- 1 x Hard Wire 5-wire
- Power Description
- Load Capacity (VA)
- 125 kVA
- Output Voltage
- 480 V AC
- Input Frequency
- 60 Hz
- Output Frequency
- 60 Hz
- Controls/Indicators
- Status Indicators
LED status indicators:
- Quickly understand unit and power status with visual indicators.
LCD Display:
- Alpha-Numeric Display which displays system parameters and alarms.
- Battery Information
- Backup/Run Time (Full Load)
- 6.50 Minute
- Backup/Run Time (Half Load)
- 21 Minute
- Typical Battery Recharge Time
- 8 Hour
- Environmental Conditions
- Maximum Operating Temperature
- 40°C
- Sound Emission (A-Weighted)
- 54 dB(A)
- Thermal Dissipation
- 15473 BTU/h
- Physical Characteristics
- Color Family
- Black
- Product Color
- Black
- Height
- 1991.1 mm
- Width
- 2350 mm
- Depth
- 1066.8 mm
- Weight (Approximate)
- 2822.71 kg
- Miscellaneous
- Additional Information
- Audible Alarms provides notification of changing utility power and UPS conditions.
- Supplies utility power to the connected loads in the event of a UPS overload condition or fault
- Network manageable provides remote management of the UPS over the network.
- Protection Class NEMA 1,IP 20.
- Energy Star
- Yes
