• General Information
• • Manufacturer
  • ASUS Computer International
  • Manufacturer Website Address
  • http://uk.asus.com
  • Brand Name
  • Asus
  • Product Type
  • Server Motherboard

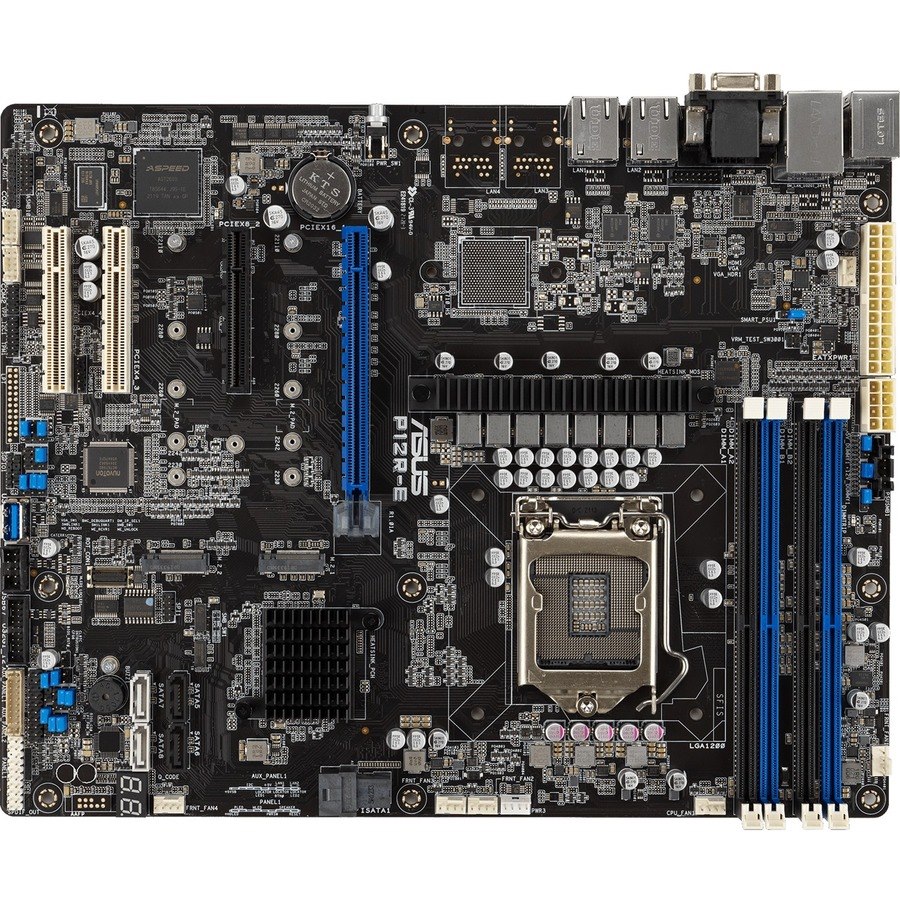

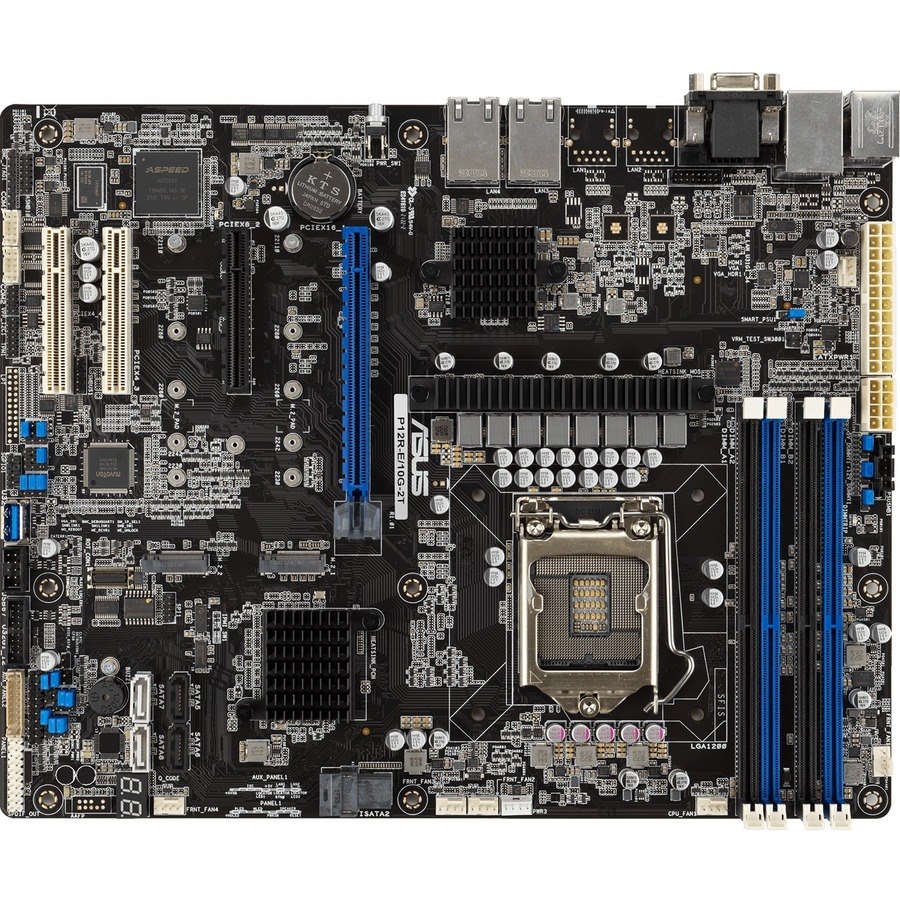

Intel® Xeon® E-2300 LGA 1200 ATX server motherboard with four DIMM and dual M.2 slots, plus dual 10G LAN, eight SATA, one HDMI, two PCIe 4.0 slots, two USB 3.2 Gen 2. Optional Platform Firmware Resilience (PFR) and ASUS ASMB10-iKVM

KEY FEATURES

• Ideal for remote office/branch office (ROBO) use and everyday business environments
• Powered by eight-core Intel® Xeon E-2300-series processor with support for up to 95 W TDP
• Flexible expandability with eight native SATA HDDs and two PCIe Gen4 slots
• Dual Intel I210AT Gigabit Ethernet with teaming support
• Dual M.2 support up to 22110 PCIe Gen4 x4 Link and PCIe Gen3 x2 Link
• HDMI 1.4 support for high-resolution display maintenance and monitoring
• Optional ASUS ASMB10-iKVM with ASPEED AST2600 controller for out-of-band management
• Optional PFR FPGA as the platform Root-of-Trust solution for firmware resiliency

PCIe 4.0 Ready

PCI Express^® (PCIe^®) 4.0 delivers 16 GT/s bandwidth, which is double the speed of PCIe 3.0, offering lower power consumption, better lane scalability and backwards compatibility. ASUS P12R server motherboards are PCIe 4.0 ready to support a diverse array of graphics, storage and networking - enabling flexible scalability for demanding or increasing workloads.

Intel Xeon E-2300 processors

Small businesses require reliability and security to support their critical business and customer data needs. Available with up to eight cores and featuring a TDP of up to 95 watts, Intel Xeon E-2300 processors deliver essential server performance, expandability and reliability small businesses to support critical business and customer data needs.

High-resolution HDMI monitoring

ASUS P12R server motherboards feature an HDMI 1.4 port directed from the CPU to offer higher-resolution monitoring and easier maintenance for IT administrators in business environments. A VGA port directed from BMC is also available for dual-display monitoring.

Dual 10G Ethernet bandwidth

With dual onboard 10G LAN powered by an Intel X710AT Ethernet controller, P12R server motherboards provide business-grade connectivity and support high-density, high-bandwidth, low-latency access-layer networks to ensure faster transfers of large-size files used in data-intensive applications.
