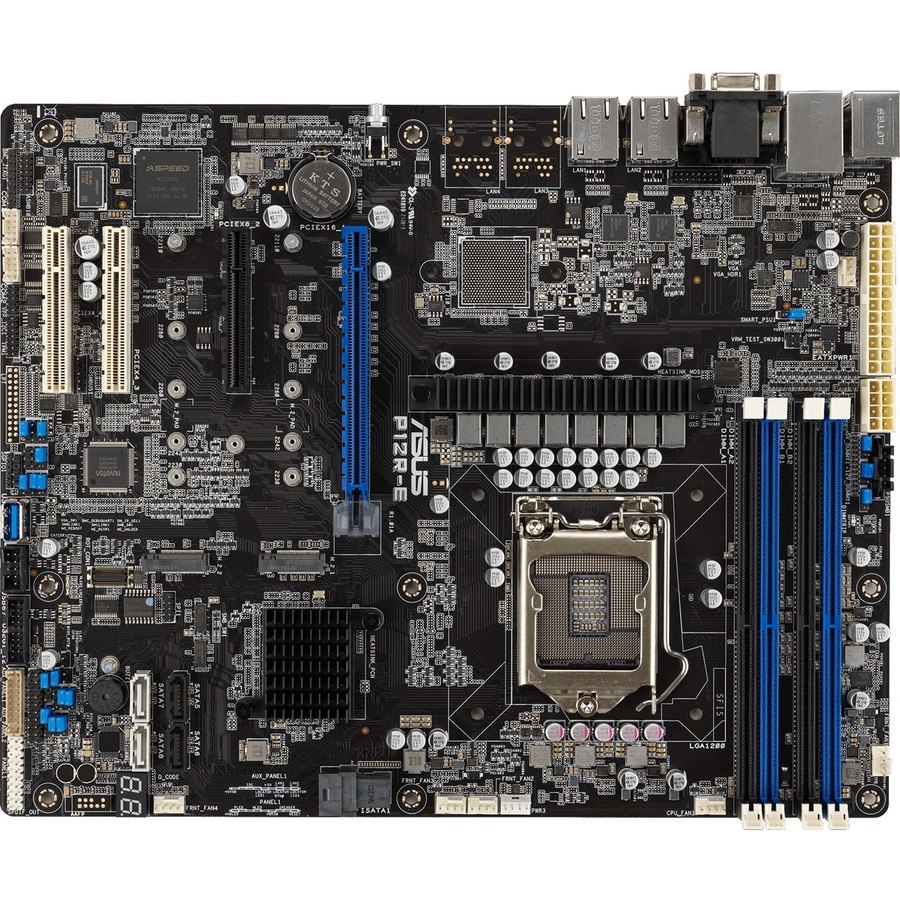

Intel® Xeon® E-2300 LGA 1200 ATX server motherboard with four DIMM and dual M.2 slots, plus dual LAN, eight SATA, one HDMI, two PCIe 4.0 slots, two USB 3.2 Gen 2. Optional Platform Firmware Resilience (PFR) and ASUS ASMB10-iKVM
KEY FEATURES
- Ideal for remote office/branch office (ROBO) use and everyday business environments
- Powered by eight-core Intel® Xeon E-2300-series processor with support for up to 95 W TDP
- Flexible expandability with eight native SATA HDDs and two PCIe Gen4 slots
- Dual Intel I210AT Gigabit Ethernet with teaming support
- Dual M.2 support up to 22110 PCIe Gen4 x4 Link and PCIe Gen3 x2 Link
- HDMI 1.4 support for high-resolution display maintenance and monitoring
- Optional ASUS ASMB10-iKVM with ASPEED AST2600 controller for out-of-band management
- Optional PFR FPGA as the platform Root-of-Trust solution for firmware resiliency
- General Information
- Manufacturer
- ASUS Computer International
- Manufacturer Website Address
- http://uk.asus.com
- Brand Name
- Asus
- Product Type
- Server Motherboard
- Processor & Chipset
- Chipset Manufacturer
- Intel
- Chipset Model
- C256
- Total Processor Supported
- 1
- Processor Socket
- Socket LGA-1200
- Processor Supported
- Pentium
- Xeon
- Memory
- Number of Memory Slots
- 4
- Memory Form Factor
- UDIMM
- Maximum Memory Supported
- 128 GB
- Memory Technology
- DDR4 SDRAM
- Memory Speed Supported
- 3200 MHz
- 2933 MHz
- 2666 MHz
- I/O Controller
- Controller Type
- Serial ATA/600
- RAID Supported
- Yes
- Video
- Onboard Video
- On-board Video Chipset
- Graphics Controller Model
- AST2600
- Network & Communication
- Gigabit Ethernet
- Yes
- I/O Expansions
- Total Number of Expansion Slots
- 4
- Total Number of PCI Express Slots
- 4
- Number of PCI Express x8 Slots
- 3
- Number of PCI Express x16 Slots
- 1
- Interfaces/Ports
- Total Number of USB Ports
- 4
- Number of USB 3.2 Ports
- 2
- Number of USB 3.2 Gen 1 Ports
- 2
- VGA
- Yes
- HDMI
- Yes
- Number of Network (RJ-45) Ports
- 2
- Onboard Interfaces
- Number of SATA Interfaces
- 8
- Number of M.2 Interfaces
- 2
- Total Number of Onboard USB Ports
- 6
- Number of Onboard USB 3.2 Ports
- 6
- Physical Characteristics
- Form Factor
- ATX
- Width
- 304.8 mm
- Depth
- 243.8 mm
- Miscellaneous
- Environmentally Friendly
- Yes
- Environmental Compliance
- Restriction of Hazardous Substances (RoHS)
