- General Information
- Manufacturer
- Axis Communications
- Manufacturer Website Address
- http://www.axis.com/uk
- Brand Name
- AXIS
- Product Type
- PoE Injector

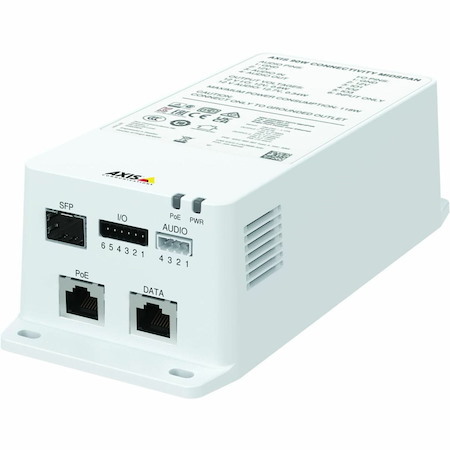

This midspan delivers a power output of 90 W. With portcast technology it enables both audio and I/O connectivity to your Axis PTZ cameras. Plus, with an SFP port, it supports both network and fiber installations.
Add connectivity
With AXIS TU8003 you can easily add two-way audio and I/O connectivity to your cameras. With portcast technology, this midspan uses the camera's IP address to provide seemingly camera-integrated audio and I/O connectivity. This enables audio and video in one stream over the network with no extra VMS license. Plus, it supports both digital and unbalanced microphones.
Add power possibilities
AXIS TU8003 deliveries up 90 W and can be used to power selected PTZ cameras. Featuring a built-in SFP slot, it is perfect for long-distance installations. And, with remote on/off functionality with I/O, it's possible to save power if needed. Furthermore, this 90 W midspan is compatible with IEEE 802.3bt, IEEE 802.3af (15 W), IEEE 802.3at and Axis High PoE.
- Warranty
- Limited Warranty
- 5 Year
- Power Description
- Input Voltage
- 120 V AC
- 230 V AC
- Maximum Output Voltage
- 54 V DC
- Maximum Output Power
- 90 W
- Interfaces/Ports
- Input Ports
- RJ-45
- Output Ports
- RJ-45
- Physical Characteristics
- Color Family
- White
- Product Color
- White
- Form Factor
- Wall/Shelf/DIN Rail Mountable
- Mount Type
- Wall/Shelf/DIN Rail-mountable
- Height
- 56 mm
- Width
- 80 mm
- Depth
- 184 mm
- Weight (Approximate)
- 415 g
- Miscellaneous
- Package Contents
- PoE Injector
- Installation Guide
- Owner Authentication Key
- Compatibility
Axis Products:
- C1110-E
- C1111-E
- Q6074-E
- Q6075-E
- Q6078-E
- Q6135-LE
- Q6225-LE 50 Hz
- Q6225-LE 60 Hz
- Q6318-LE
- P3735-PLE
- P3737-PLE
- P3738-PLE
- Certifications & Standards
- IEEE 802.3bt
- UL/cUL
- BIS
- CE
- KC
- VCCI
- RCM
- EN 55035
- EN 55032 Class A
- EN 50121-4
- EN 61000-3-2
- EN 61000-3-3
- EN 61000-6-1
- EN 61000-6-2
- IEC 62236-4
- RCM AS/NZS CISPR 32 Class A
- VCCI Class A
- KS C 9835
- KS C 9832 Class A
- FCC Part 15 Subpart B Class A
- CAN/CSA C22.2 No. 62368-1 ed.2
- IEC/EN/UL 62368-1 ed.2
- IEC/EN 60950-1, IS 13252, CB
- EN 63000:2018
- Environmental Compliance
- Restriction of Hazardous Substances (RoHS)
- Registration, Evaluation, Authorization and Restriction of Chemicals (REACH)
- TAA Compliant
- Yes
