- General Information
- Manufacturer
- Bixolon America, Inc
- Manufacturer Website Address
- http://www.bixolon.com
- Brand Name
- Bixolon
- Product Series
- XD5-40
- Product Type
- Direct Thermal/Thermal Transfer Printer
Reliable and Solid Performance
- Supporting Direct Thermal(XD5-40d) and Thermal Transfer(XD5-40t) label printing
- Fast processing and print speeds of up to 7 ips (XD5-40d), 6 ips (XD5-40t)
- Optional 300 dpi high resolution choice for fine print quality
- Dual-band WLAN (5 GHz and 2.4 GHz) and Bluetooth V5.0 (MFi certified)
- Extended memory space up to 256MB SDRAM, 256MB Flash
- A suite of SDKs for major operating systems
Next Level Usability
- Supports UHF RFID print and encode capability plus minimum encoding inlay pitch of 0.6 inch (16mm) inlay
- An adjustable media guide and a holder
- Compact clamshell design with intuitive menu buttons and optional LCD Display (LCD display as standard on XD5-40tR)
- Suitable for both 1/2-inch and 1-inch core ribbon (74 m and 300 m)
- Field-installable Peeler and Auto Cutter
Secure and Efficient Management
- Twin funtion™ supported: Copy printer setting and data by USB
- Compatible with label design software; BIXOLON's Label Artist™ and Seagull's BarTender®
- XPM™ & XCM™- Web-based printer management software and connection app
- Technical Information
- Recommended Use
- Label Print
- Print Color Capability
- Monochrome
- Maximum Mono Print Speed
- 101.60 mm/s
- Maximum Print Resolution (dpi)
- 300
- Maximum Print Length
- 1000 mm
- Maximum Print Width
- 105.70 mm (4.16")
- Barcode Symbology Supported
- Codabar
- Code 11
- Code 39
- Code 93
- Code 128
- EAN-13
- EAN-8
- Industrial 2 of 5
- Interleaved 2 of 5
- LOGMARS
- MSI
- Plessey
- POSTNET
- GS1 DataBar
- Standard 2 of 5
- UPC/EAN
- UPC-A
- UPC-E
- IMB
- Aztec Code
- Codablock
- Code 49
- Data Matrix
- Maxi Code
- Micro PDF-417
- PDF417
- QR Code
- TLC 39
- Application/Usage
- Desktop
- Manufacturing
- Logistic
- Retail
- Healthcare
- Features
- Compact
- LCD Display
- Robust
- Print Technology
- Direct Thermal /Thermal Transfer
- Memory
- Standard Memory
- 64 MB
- Flash Memory
- 128 MB
- Interfaces/Ports
- Serial Port
- Yes
- USB Host
- Yes
- USB
- Yes
- Network & Communication
- Network Ready
- Yes
- Ethernet
- Yes
- Ethernet Technology
- Ethernet
- Bluetooth
- Yes
- Bluetooth Version
- 5.0
- Wireless LAN
- Yes
- Wireless LAN Standard
- IEEE 802.11a/b/g/n
- Display & Graphics
- Display Screen
- Yes
- Screen Size
- 10.2 cm (4")
- Display Screen Type
- LCD
- Media Types & Handling
- Media Type
- Gap
- Black Mark
- Notch
- Fanfold
- Continuous Label
- Media Sensor
- Transmissive Media Sensor
- Reflective Media Sensor
- Head Open Sensor
- Media Thickness
- 200 µm
- Maximum Roll Diameter
- 127 mm
- Maximum Label Width
- 118 mm
- Fonts & Emulation
- Language Emulation
- SLCS
- BPL-Z
- BPL-E
- EPL
- Power Description
- Power Source
- AC Supply
- Power Adapter
- Frequency
- 50 Hz
- 60 Hz
- Environmental Conditions
- Operating Relative Humidity
- 10% - 80%
- Storage Temperature
- -20°C - 60°C
- Storage Relative Humidity
- 10% - 90%
- Miscellaneous
- Package Contents

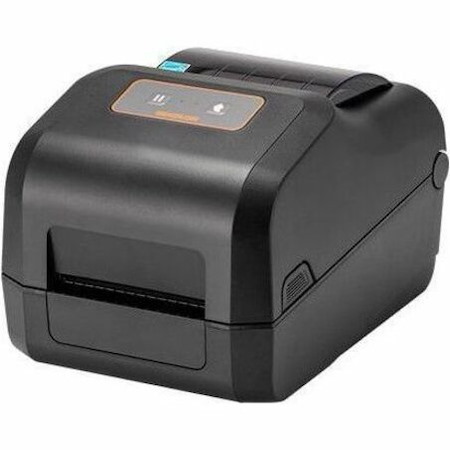

- XD5-43t Direct Thermal/Thermal Transfer Printer
- Cable-USB
- Cables Included
- USB
- Energy Star
- Yes
