Most Flexible

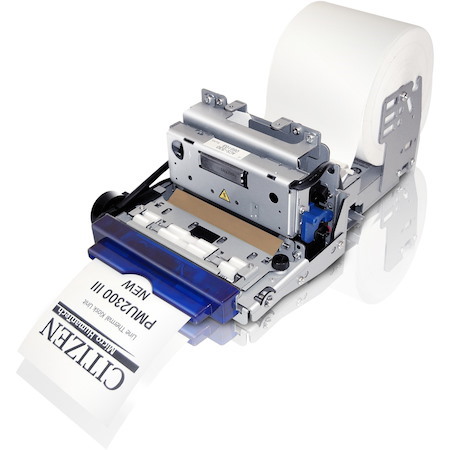

The unique PMU2200/2300 series offers 28 different varieties to install the paper. This makes it the most flexible kiosk printer in the market. Ready for installation without customisation.
3 Different Paper Roll Sizes
The PMU2200/2300 can be operated with 3 different paper roll sizes.
Wide Operating Temperature
Operating in temperatures between -20°C up to 60°C the PMU2200/2300 is suitable for indoor as well as for outdoor applications.
- General Information
- Manufacturer
- Citizen Micro HumanTech
- Manufacturer Website Address
- http://www.citizen-systems.com
- Brand Name
- Citizen
- Product Type
- Direct Thermal Printer
- Technical Information
- Recommended Use
- Ticket Print
- Print Color Capability
- Two-color
- Maximum Mono Print Speed
- 150 mm/s
- Maximum Print Resolution (dpi)
- 203
- Maximum Print Width
- 80 mm (3.15")
- Barcode Symbology Supported
- UPC-A/E
- 13 Columns/8 Columns
- ITF
- Code 39
- Code 128
- Codabar
- Code 93
- Application/Usage
- Desktop
- Features
- Vertical Printing
- Character Size
- 3 mm x 3 mm
- Print Head Life
- 100,000,000 pulses or 100 km
- Optional Connectivity
- Parallel
- USB 2.0
- Fonts Included
- Font A: 48 columns
- Font B: 64 columns
- Font C: 72 columns
- Kanji Font A: 24 columns
- Kanji Font C: 36 columns
- Print Technology
- Direct Thermal
- Memory
- Standard Memory
- 256 KB
- Interfaces/Ports
- Serial Port
- Yes
- Cutter
- Cutter
- Yes
- Cutting Method
- Automatic
- Cutter Life
- 100000 Cuts
- Media Types & Handling
- Media Sensor
- Paper Near End Sensor
- Black Mark Sensor
- Platen Open Sensor
- Media Thickness
- 150 µm
- Maximum Label Width
- 80 mm
- Power Description
- Power Source
- Power Adapter
- Input Voltage
- 24 V DC
- Environmental Conditions
- Operating Temperature
- -20°C - 60°C
- Storage Temperature
- -25°C - 65°C
- Physical Characteristics
- Height
- 96 mm
- Width
- 118 mm
- Depth
- 179 mm
- Weight (Approximate)
- 1.10 kg
- Miscellaneous
- Platform Supported
- PC
