- General Information
- Manufacturer
- CyberPower Systems, Inc
- Manufacturer Website Address
- https://www.cyberpowersystems.com/
- Brand Name
- CyberPower
- Product Line
- Smart App Online
- Product Series
- S
- Product Type
- Double Conversion Online UPS

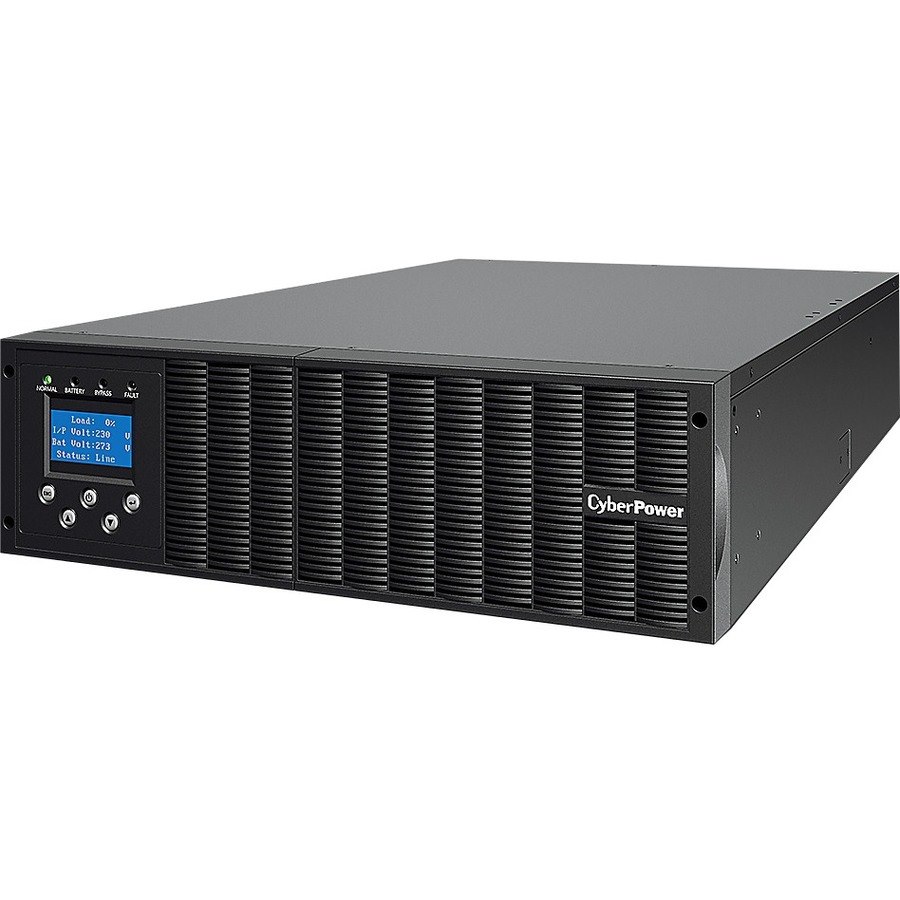

CyberPower OLS10000ERTXL3U is a high-performance UPS featuring online double-conversion topology, which provides seamless Pure Sine Wave power for mission-critical devices such as NAS and servers, DVRs/surveillance systems, transportation and infrastructure, and emergency systems. It's typically integrated in the back office, server room, and data center environment.
Selected product is equipped with a Maintenance Bypass Switch. By flipping the switch, the power supply is safely transferred to utility. This allows service personnel to carry out fast on-site maintenance without having to shut down any connected equipment.
FEATURES
- Online (Double Conversion) UPS Topology
- ECO Mode
- UPS Parallel Expansion
- Generator Compatible
- Overload Protection
- Zero Transfer Time
- Smart Battery Management (SBM)
- Extended Battery Module (EBM)
- Surge and Spike Protection
- EMI and RFI Filtration
- LCD Status Display
- Emergency Power Off (EPO) Port
- PowerPanel® Management Software
- SNMP/HTTP Remote Management Capability (Optional)
- Rack/Tower Convertible Configurations
- Warranty
- Limited Warranty
- 2 Year
- Technical Information

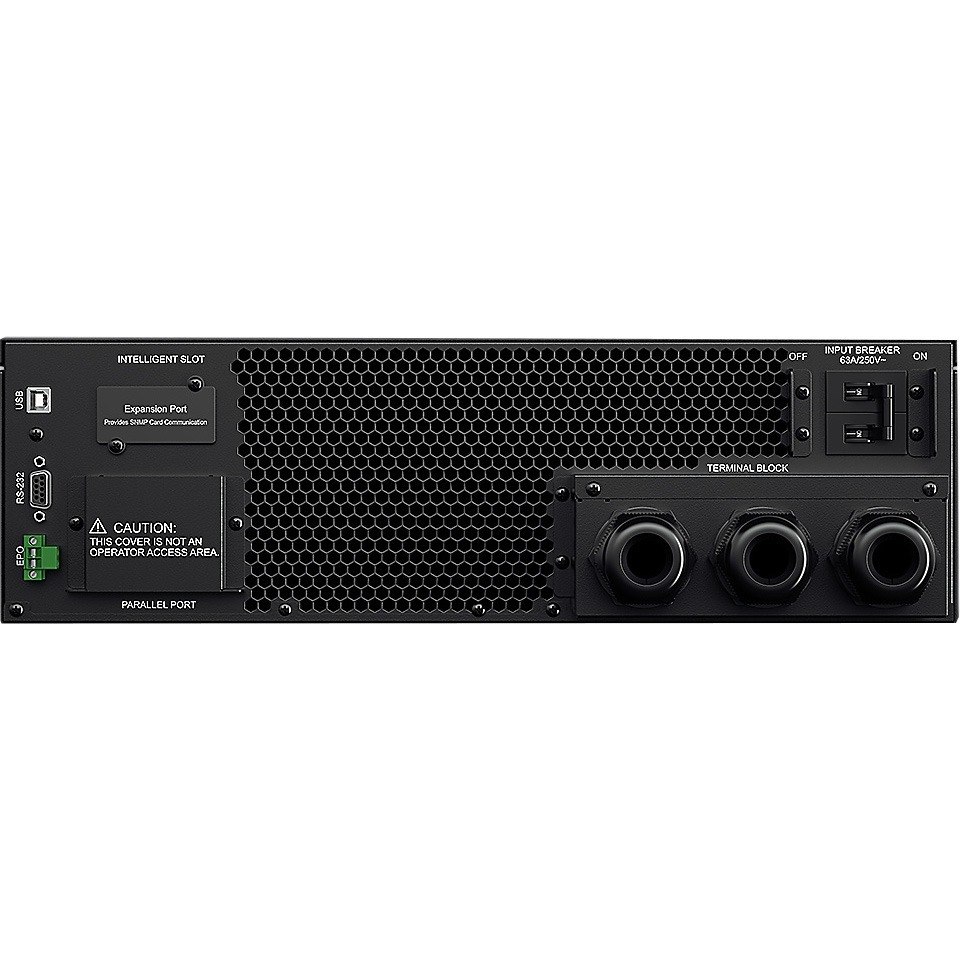

- Plug/Connector Type
- Terminal Block
- Receptacle Type
- Terminal Block
- Receptacle Detail
- 1 x Terminal Block
- Transfer Time
- 0 ns
- Overload Protection
- Yes
- EMI/RFI Noise Filter
- Yes
- Phase
- Single Phase
- Energy Saving
- Online ECO Mode Efficiency > 96%
- Application/Usage
- Office
- Emergency System
- Factory
- Server Room
- Data Center
- Network Device
- Storage Device
- Workstation
- DVR
- Mission Critical Equipment
- Security System
- Airport
- Train Station
- Transportation
- SOHO Office
- Surveillance System
- Supermarket
- Computer
- Satellite Device
- Power Description
- Load Capacity (VA)
- 10 kVA
- Input Voltage
- 230 V AC
- Input Voltage Range
- 110 V AC - 276 V AC
- Output Voltage
- 208 V AC
- 220 V AC
- 230 V AC
- 240 V AC
- Input Frequency
- 60 Hz
- Output Frequency
- 60 Hz
- Waveform Type
- Pure Sine Wave
- Surge Energy Rating
- 445 J
- Management
- Network Management
- SNMP/HTTP Remote Monitoring
- Alarm
- Battery Mode
- Low Battery
- Overload
- Over Charge
- UPS Fault
- Overheat
- Controls/Indicators
- Status Indicators
LCD Information Display:
- Operation Type
- Power Status
- Battery Status
- Load Status
- Fault & Warning
- Other Information
- Event & Log
LED Indicators:
- Line Mode
- Battery Mode
- Bypass Mode
- UPS Fault
- Interfaces/Ports
- Serial Port
- Yes
- USB (HID Compliant) Port
- Yes
- EPO Port
- Yes
- Battery Information
- Number of External Battery Cabinets
- 15
- Backup/Run Time With External Battery Cabinet (Full Load)
- 1.45 Hour
- Backup/Run Time With External Battery Cabinet (Half Load)
- 4.02 Hour
- Replaceable Battery
- No
- Environmental Conditions
- Maximum Operating Temperature
- 40°C
- Storage Temperature
- -15°C - 45°C
- Maximum Operating Elevation
- 2 km
- Maximum Storage Elevation
- 15 km
- Operating Humidity
- 0% - 90%
- Storage Relative Humidity
- 0% - 95%
- Sound Emission (A-Weighted)
- 60 dB(A)
- Thermal Dissipation
- 2672 BTU/h
- Physical Characteristics

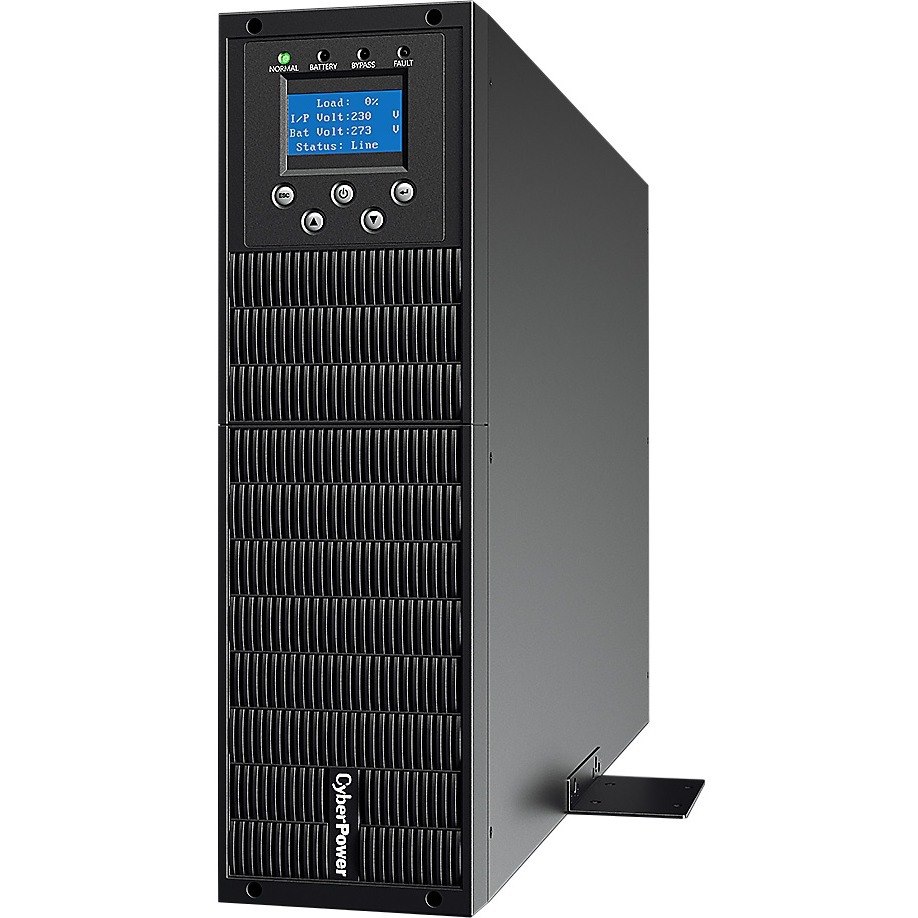

- Form Factor
- Rack/Tower
- Rack Height
- 3U
- Height
- 130.6 mm
- Width
- 437.9 mm
- Depth
- 680 mm
- Weight (Approximate)
- 55.02 kg
- Miscellaneous
- Environmentally Friendly
- Yes
