- General Information
- Manufacturer
- Eaton Corporation
- Manufacturer Website Address
- http://www.powerquality.eaton.com/UK/
- Brand Name
- Eaton
- Product Series
- 9SX
- Product Type
- Double Conversion Online UPS
- Warranty
- Limited Warranty
- 2 Year
- Technical Information

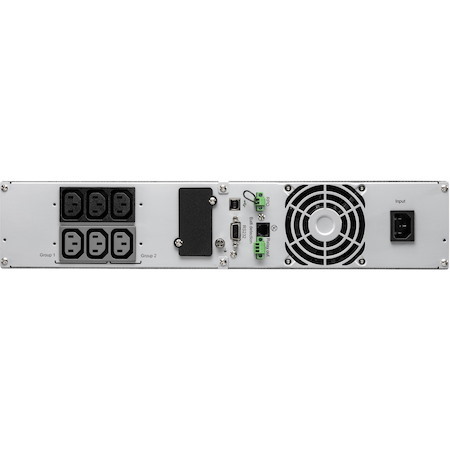

- Plug/Connector Type
- IEC 60320 C14
- Receptacle Type
- IEC 60320 C13
- Receptacle Detail
- 6 x IEC 60320 C13
- Phase
- Single Phase
- Power Description
- Load Capacity (VA)
- 1 kVA
- Load Capacity (Watt)
- 900 W
- Input Voltage
- 230 V AC
- Input Voltage Range
- 190 V AC - 276 V AC
- Output Voltage
- 220 V AC
- 230 V AC
- 240 V AC
- 200 V AC
- 208 V AC
- Input Frequency
- 70 Hz
- Waveform Type
- Sine Wave
- Controls/Indicators
- Status Indicators
Multilingual graphical LCD display
- Interfaces/Ports
- Serial Port
- Yes
- Network (RJ-45)
- No
- USB (HID Compliant) Port
- Yes
- Battery Information
- DC System Voltage
- 12 V DC
- Number of Batteries
- 3
- Battery Characteristics
- Sealed
- Battery Chemistry
- Lead Acid
- Battery Capacity
- 9000 mAh
- Hot Swappable
- Yes
- Replaceable Battery
- Yes
- Environmental Conditions
- Storage Temperature
- 40°C
- Physical Characteristics
- Color Family
- Black
- Product Color
- Black
- Height
- 240 mm
- Width
- 548 mm
- Depth
- 570 mm
- Rack Height
- 2U
- Form Factor
- Rack-mountable
- Weight (Approximate)
- 16.10 kg
- Miscellaneous
- Package Contents

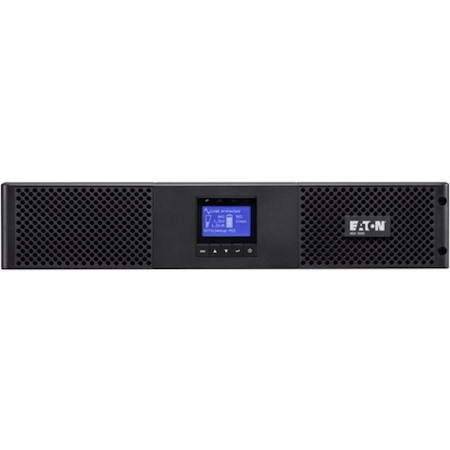

- 9SX 1000VA Rack-mountable Double Conversion Online UPS
- 2 x IEC-IEC Output Cables
- USB Cable
- Serial Cable
- 2 x Brackets for 19' Mounting
- 2 x Rack-mounting Kit
- Safety Instructions
- Quickstart Guide
- BS Input Cord
