- General Information
- Manufacturer
- Elo Touch Solutions, Inc
- Manufacturer Website Address
- http://www.elotouch.com
- Brand Name
- Elo
- Product Line
- I-Series 3
- Product Type
- POS Terminal

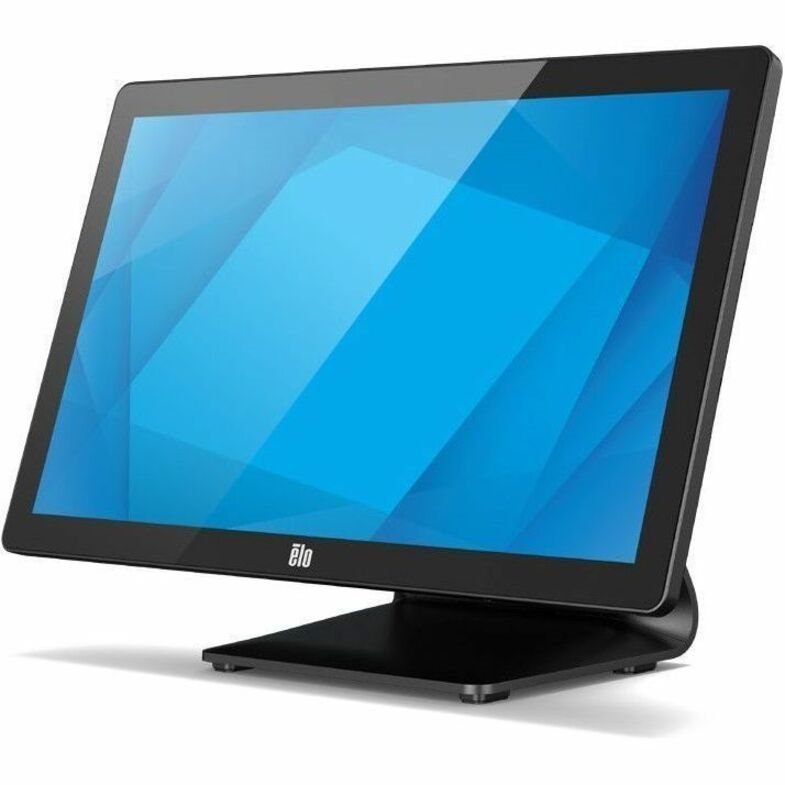

Elo's I-Series delivers reliable, enterprise-grade security and performance powered by Intel 12th gen processors including Celeron, Core i3, i5 and i7. Designed with a sleek and durable fixed tablet form factor, the I-Series offer models that support Windows, ChromeOS Flex and Linux (SuSE, Ubuntu and Red Hat). Available in sizes ranging from 15" to 24" with square and wide aspect ratios, with and without stands, the I-Series offers a modular platform with versatility to fit almost any application - from point-of-sale and interactive signage to self-service and automation controls.
Available in 15" and 17" square aspect and 15" , 22" and 24" wide aspect sizes with sleek edge-to-edge glass PCAP (10 touch) touchscreen
Elo Edge Connect™ compatibility - payment devices, barcode scanners, cameras, RFID, fingerprint reader, status lights and more
Modular design offering with stand and without stand options for flexible mounting in portrait, landscape and table-top orientation
- Technical Information
- Cooling Fan
- Fanless
- Bluetooth
- Yes
- Bluetooth Standard
- Bluetooth 5.3
- Form Factor
- All-in-One
- Features
- Anti-glare
- Edge-to-Edge Glass Design
- Processor & Chipset
- Processor Manufacturer
- Intel
- Processor Type
- Core i5
- Processor Speed
- 4.40 GHz
- Maximum Turbo Speed
- 2 GHz
- Processor Model
- i5-1245UL
- Processor Cache
- 12 MB
- vPro Technology
- Yes
- Memory
- Standard Memory
- 16 GB
- Memory Technology
- DDR5 SDRAM
- Storage
- Solid State Drive Capacity
- 256 GB
- Solid State Drive Interface
- PCIe NVMe
- Display & Graphics
- Screen Size
- 39.6 cm (15.6")
- Active Display Size (Horizontal)
- 344.17 mm
- Active Display Size (Vertical)
- 193.55 mm
- Display Screen Type
- LED
- Screen Mode
- Full HD
- Panel Technology
- In-plane Switching Technology (IPS)
- Touchscreen
- Yes
- Touchscreen Technology
- Projected Capacitive
- Multi-touch Screen
- Yes
- Number of Simultaneous Touch Points
- 10
- Aspect Ratio
- 16:9
- Contrast Ratio
- 1,000:1
- Response Time
- 25 ms
- Colour Supported
- 16.2 Million Colours
- Horizontal Viewing Angle
- 85°
- Vertical Viewing Angle
- 85°
- Graphics Controller Manufacturer
- Intel
- Graphics Controller Model
- UHD Graphics
- Network & Communication
- Wireless LAN
- Yes
- Ethernet Technology
- Gigabit Ethernet
- Interfaces/Ports
- USB
- Yes
- Powered USB
- Yes
- USB Type-C
- Yes
- Network (RJ-45)
- Yes
- Cash Drawer Port
- Yes
- Serial Port
- Yes
- RJ-50
- Yes
- Number of Micro USB 2.0 Ports
- 4
- Number of USB 3.0 Ports
- 4
- Number of USB Type C Ports
- 1
- Built-in Devices
- Number of Speakers
- 2
- Speaker Power
- 2 W
- Software
- Operating System
- Windows 10
- Windows 11 IoT Enterprise LTSC
- Power Description
- Power Source
- AC Power
- Physical Characteristics
- Color Family
- Black
- Product Color
- Black
- Weight (Approximate)
- 6.39 kg
- Miscellaneous
- Package Contents
- I-Series with stand
- North America Power Cord
- European Power Cord
- Power Adapter - 180W
- Cable RJ-50 to DB-9
- Quick Installation Guide (QIG)
- Cable tie
- CFD mounting screw
- VESA mounting screw
- VESA cover and mounting screw
- 75mm to 100mm adapter
- mounting screw
- Ingress Protection (IP) Rating
- IP54
