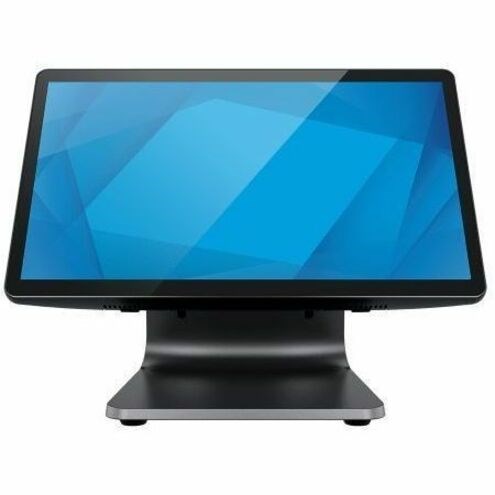

The 15.6-inch E-Series 3 Touchcomputer features a 10-touch TouchPro® PCAP display, powerful Intel® processor, Windows 11 OS and integrated connectivity to support peripherals like cash drawers, printers, barcode scanners, and payment devices. Available with or without a stand, the E-Series offers the flexibility to fit a range of use cases-from point-of-sale and interactive signage to self-service and automation controls.
The E-Series 3 is also offered without an operating system and has been pretested for compatibility with leading Linux distributions, including SuSE, Ubuntu, and Red Hat, to support a wide range of enterprise environments.
Elo Edge Connect™ compatibility - EMV, MSR, barcode scanner, fingerprint reader and customer-facing display
Sleek edge-to-edge glass 10-touch PCAP touchscreen
USB-C connectivity makes it easy to connect a CFD - providing touch, data and power with just one cable
- General Information
- Manufacturer
- Elo Touch Solutions, Inc
- Manufacturer Website Address
- http://www.elotouch.com
- Brand Name
- Elo
- Product Line
- E-Series 3
- Product Type
- POS Terminal
- Technical Information
- Bluetooth
- Yes
- Bluetooth Standard
- Bluetooth 5.3
- Form Factor
- All-in-One
- Features
- Edge-to-Edge Glass Design
- Processor & Chipset
- Processor Manufacturer
- Intel
- Processor Type
- Celeron
- Maximum Turbo Speed
- 3.60 GHz
- Processor Model
- N97
- Processor Cache
- 6 MB
- Memory
- Standard Memory
- 8 GB
- Memory Technology
- DDR5 SDRAM
- Maximum Memory Supported
- 16 GB
- Storage
- Solid State Drive Capacity
- 128 GB
- Solid State Drive Interface
- M.2/PCI Express
- Display & Graphics
- Screen Size
- 39.6 cm (15.6")
- Active Display Size (Horizontal)
- 344.17 mm
- Active Display Size (Vertical)
- 193.55 mm
- Display Screen Type
- LED
- Screen Mode
- Full HD
- Touchscreen
- Yes
- Touchscreen Technology
- Projected Capacitive
- Multi-touch Screen
- Yes
- Number of Simultaneous Touch Points
- 10
- Aspect Ratio
- 16:9
- Contrast Ratio
- 500:1
- Response Time
- 25 ms
- Colour Supported
- 262,000 Colors
- Horizontal Viewing Angle
- 178°
- Vertical Viewing Angle
- 178°
- Graphics Controller Manufacturer
- Intel
- Graphics Controller Model
- UHD Graphics
- Network & Communication
- Wireless LAN
- Yes
- Ethernet Technology
- Gigabit Ethernet
- Interfaces/Ports
- USB
- Yes
- USB Type-C
- Yes
- Network (RJ-45)
- Yes
- Cash Drawer Port
- Yes
- Serial Port
- Yes
- Number of Micro USB 2.0 Ports
- 2
- Number of USB 3.0 Ports
- 2
- Number of USB Type C Ports
- 1
- Built-in Devices
- Number of Speakers
- 2
- Speaker Power
- 2 W
- Software
- Operating System
- Windows 11 IoT
- Power Description
- Power Source
- DC Power
- AC Power
- Physical Characteristics
- Color Family
- Black
- Product Color
- Black
- Weight (Approximate)
- 2.40 kg
- Miscellaneous
- Package Contents
- E-Series 3 POS Terminal
- E-Series 3, North America Power Cord
- EU Power Cord
- Power Adapter - 90W
- Series Port Cable RJ-45 to DB-9
- Quick Installation Guide (QIG)
- Cable tie
- Environmental Compliance
- Restriction of Hazardous Substances (RoHS)
