- General Information
- Manufacturer
- Hewlett Packard Enterprise
- Manufacturer Website Address
- http://www.hpe.com
- Brand Name
- HPE
- Product Series
- E2620
- Product Condition
- Refurbished
- Product Type
- Layer 3 Switch

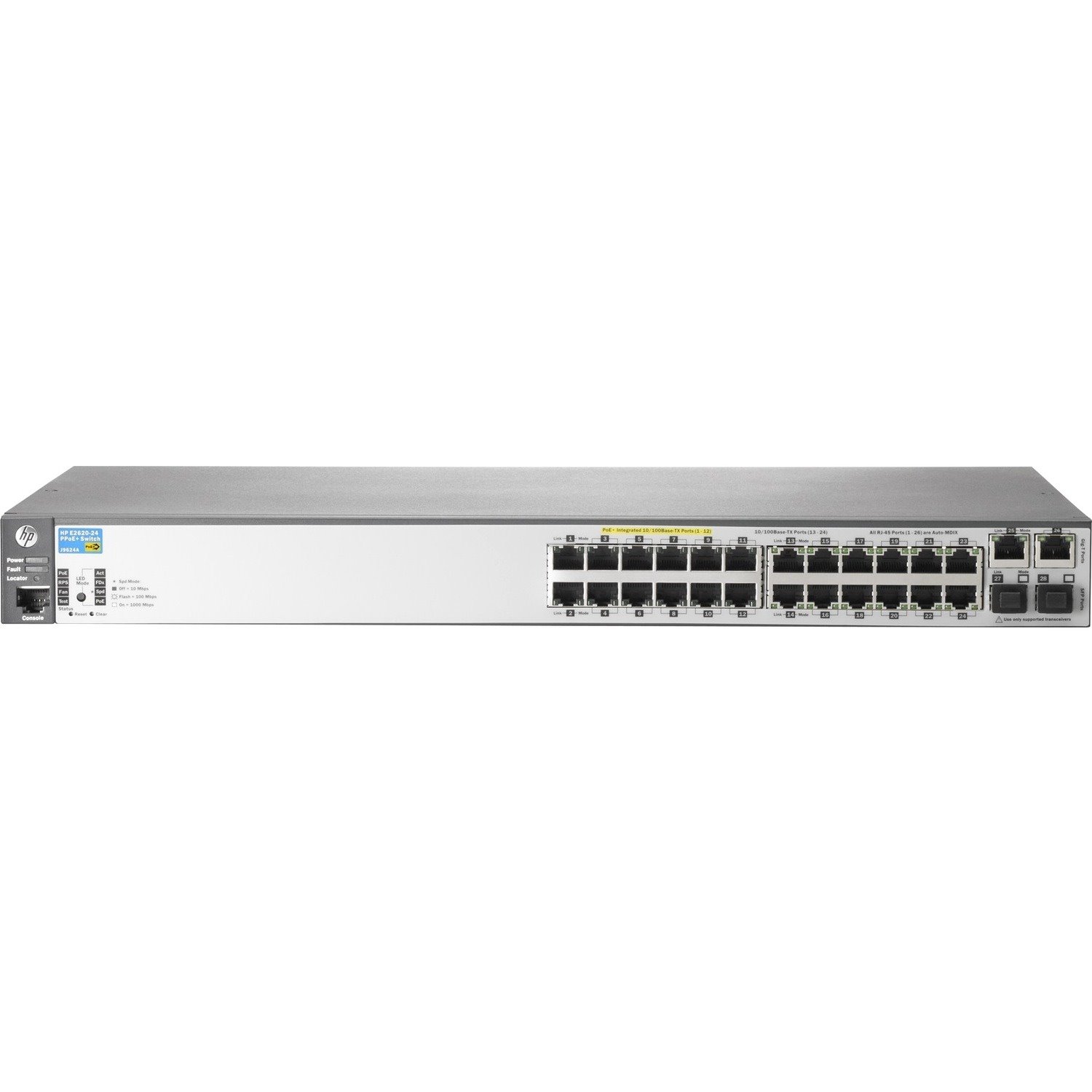

The HP E2620 Switch Series consists of five switches with 10/100 connectivity. The HP E2620-24 Switch is a fanless switch with quiet operation, making it ideal for deployment in open spaces. The HP E2620-24-PPoE+ Switch, HP E2620-24-PoE+ Switch, and HP E2620-48-PoE+ Switch are IEEE 802.3af- and IEEE 802.3at-compliant and provide up to 30 W per powered port. All E2620 series switches include two 10/100/1000BASE-T ports and two SFP slots for Gigabit Ethernet uplink connectivity. An optional redundant external power supply is also available to provide redundancy in the event of a power supply failure. With IPV4/IPv6 static and RIP routing, robust security and management features, free lifetime warranty, and free software updates, the HP E2620 Switch Series is a cost-effective solution for customers who are building converged enterprise edge networks.
- Interfaces/Ports
- Total Number of Network Ports
- 24
- Token Ring Port
- No
- LRE Port
- No
- Uplink Port
- Yes
- Number of PoE+ (RJ-45) Ports
- 12
- Number of Network (RJ-45) Ports
- 12
- Port/Expansion Slot Details
- 24 x Fast Ethernet Network
- 2 x Gigabit Ethernet Uplink
- 2 x Gigabit Ethernet Expansion Slot
- Media & Performance
- Media Type Supported
- Twisted Pair
- Ethernet Technology
- Gigabit Ethernet
- Fast Ethernet
- Network Technology
- 10/100/1000Base-T
- 10/100Base-TX
- 1000Base-X
- I/O Expansions
- Total Number of Expansion Slots
- 2.0
- Expansion Slot Type
- SFP
- Number of SFP Slots
- 2
- Network & Communication
- Layer Supported
- 3
- Management & Protocols
- Manageable
- Yes
- Management
- RMON 1, 2, 3, 9
- QoS
- DHCP
- SNMP v1, v2c, v3
- Telnet
- sFlow
- CLI
- Web-based Management
- MIB
- VLAN
- Memory
- Standard Memory
- 512 MB
- Memory Technology
- SDRAM
- Flash Memory
- 512 MB
- Power Description
- PoE (RJ-45) Port
- Yes
- Power Source
- Power Supply
- Redundant Power Supply Supported
- Yes
- Physical Characteristics
- Compatible Rack Unit
- 1U
- Form Factor
- Desktop
- Wall Mountable
- Rack-mountable
- Height
- 43.9 mm
- Width
- 443 mm
- Depth
- 254 mm
- Weight (Approximate)
- 3.19 kg
- Miscellaneous
- Environmentally Friendly
- Yes
