- General Information
- Manufacturer
- Hewlett Packard Enterprise
- Manufacturer Website Address
- http://www.hpe.com
- Brand Name
- HPE
- Product Series
- 3600 EI
- Product Type
- Layer 3 Switch

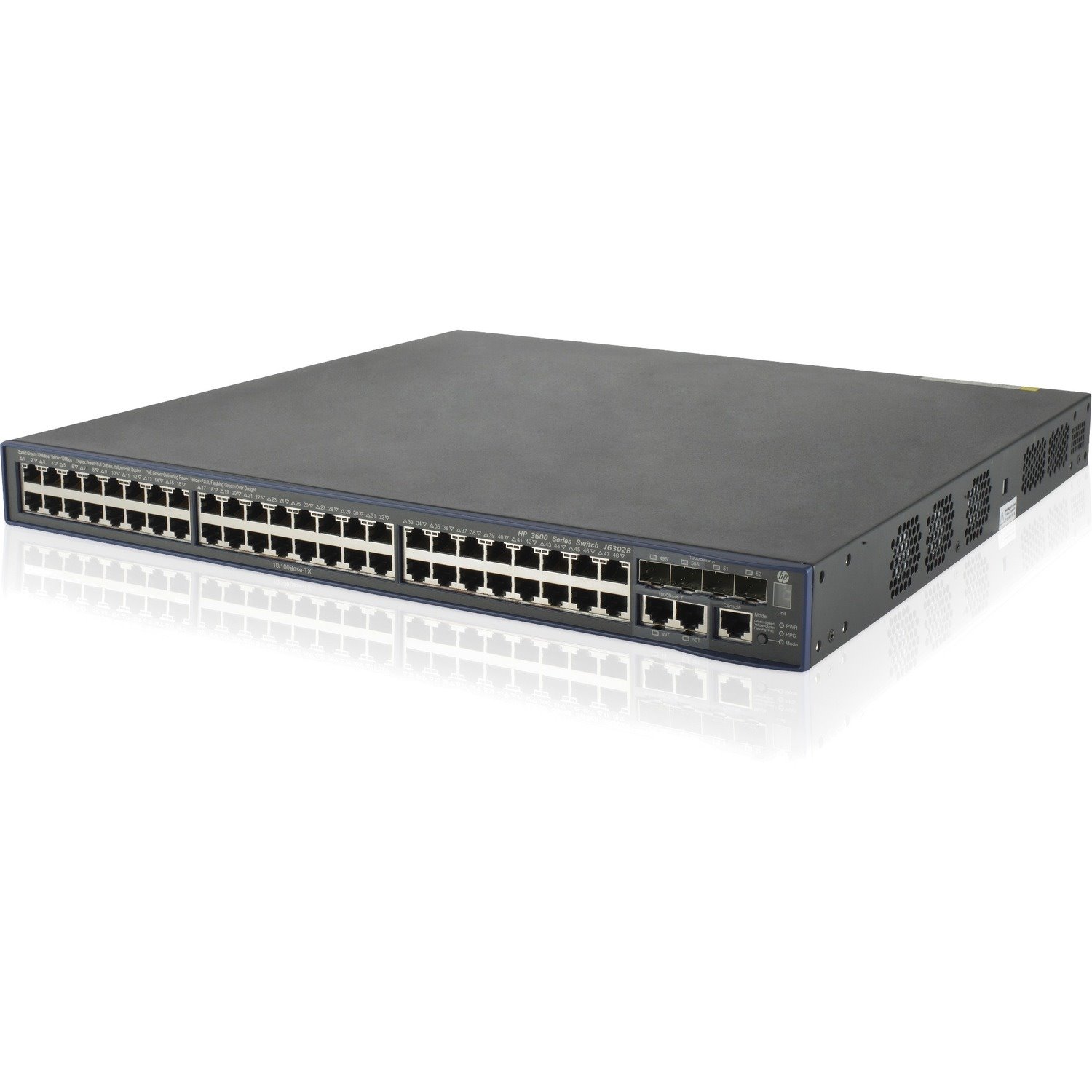

The HP 3600 EI Switch Series delivers premium levels of intelligent and resilient performance, security, and reliability for robust switching at the enterprise network edge. The series consists of Layer 3 Fast Ethernet and PoE/PoE+ switches, with advanced features that can accommodate the most demanding applications. Secure, resilient connectivity and the latest traffic-prioritization technologies enhance converged networks. Designed for increased flexibility and scalability, HP 3600 EI series switches come with 24 or 48 10/100 ports, four active SFP-based Gigabit Ethernet ports for stacking and uplinks, and a 24-port 100BASE-FX switch with two or four Gigabit Ethernet SFP slots.
- Interfaces/Ports
- Total Number of Network Ports
- 48
- Token Ring Port
- No
- LRE Port
- No
- Management Port
- Yes
- USB
- No
- Number of PoE+ (RJ-45) Ports
- 48
- Stack Port
- Yes
- Number of Network (RJ-45) Ports
- 2
- Port/Expansion Slot Details
- 50 x Gigabit Ethernet Network
- 4 x Gigabit Ethernet Expansion Slot
- Media & Performance
- Media Type Supported
- Twisted Pair
- Ethernet Technology
- Gigabit Ethernet
- Fast Ethernet
- Network Technology
- 10/100/1000Base-T
- 10/100Base-TX
- I/O Expansions
- Total Number of Expansion Slots
- 4.0
- Expansion Slot Type
- SFP
- Shared SFP Slot
- No
- Number of SFP Slots
- 4
- Network & Communication
- Layer Supported
- 3
- Management & Protocols
- Manageable
- Yes
- Management
- SNMP v1/v2c/v3
- DHCP
- MIB
- Telnet
- RMON
- Web Based Management
- SSH v1/v2
- Memory
- Standard Memory
- 256 MB
- Memory Technology
- SDRAM
- Flash Memory
- 128 MB
- Power Description
- PoE (RJ-45) Port
- Yes
- Power Source
- Power Supply
- Physical Characteristics
- Compatible Rack Unit
- 1U
- Form Factor
- Rack-mountable
- Height
- 43.6 mm
- Width
- 440 mm
- Depth
- 420 mm
- Weight (Approximate)
- 10 kg
- Miscellaneous
- Certifications & Standards
- Safety:
- UL 60950-1
- EN 60825-1
- 1EN 60825-2
- IEC 60950-1
- CAN/CSA-C22.2 No. 60950-1
- EN 60950-1
- FCC part 15 Class A
- VCCI Class A
- EN 55022 Class A
- CISPR 22 Class A
- ICES-003 Class A
- ANSI C63.4 2003
- ETSI EN 300 386 V1.3.3
- AS/NZS CISPR 22 Class A
- EN 61000-3-2
- EN 61000-3-3
- EN 61000-4-2
- EN 61000-4-3
- EN 61000-4-4
- EN 61000-4-5
- EN 61000-4-6
- EN 61000-4-11
- EN 61000-3-2:2006
- EN 61000-3-3:1995 +A1:2001+A2:2005
- EMC Directive 2004/108/EC
- FCC (CFR 47, Part 15) Class A
- 802.1ad
- 802.1D
- 802.1p
- 802.1Q
- 802.1s
- 802.1v
- 802.1w
- 802.1X
- 802.3
- 802.3ab
- 802.3ac
- 802.3ad
- 802.3af
- 802.3at
- 802.3i
- 802.3u
- 802.3x
- 802.3z
- Environmentally Friendly
- Yes
