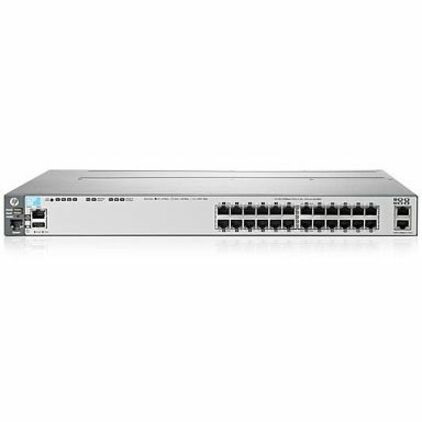

The HP E3800 Switch Series is a family of fully-managed Gigabit Ethernet switches. There are a total of 9 switch models - 24 port, 48 port, 24 port PoE+, 48 port PoE+ with either SFP+ or 10GBase-T uplinks and a 24 port SFP with 2 SFP+ uplinks. HP E3800 Series Switches utilizes the latest HP ProVision ASIC technology and combines the latest advances in hardware engineering to deliver one of the most resilient and power efficient switches in the industry. The E3800 implements the meshed stacking technology to deliver chassis-like resiliency in a flexible stackable form-factor.
- General Information
- Manufacturer
- Hewlett Packard Enterprise
- Manufacturer Website Address
- http://www.hpe.com
- Brand Name
- HPE
- Product Series
- E3800
- Product Type
- Layer 3 Switch
- Interfaces/Ports
- Total Number of Network Ports
- 24
- Token Ring Port
- No
- LRE Port
- No
- Uplink Port
- Yes
- Stack Port
- Yes
- Number of Network (RJ-45) Ports
- 24
- Port/Expansion Slot Details
- 24 x Gigabit Ethernet Network
- 1 x 10 Gigabit Ethernet Uplink
- Media & Performance
- Ethernet Technology
- 10 Gigabit Ethernet
- Gigabit Ethernet
- Fast Ethernet
- Network Technology
- 10/100/1000Base-T
- 10GBase-T
- I/O Expansions
- Total Number of Expansion Slots
- 1.0
- Expansion Slot Type
- Stacking Module
- Network & Communication
- Layer Supported
- 4
- Management & Protocols
- Manageable
- Yes
- Management
- Telnet
- VLAN
- DHCP
- HP PCM+
- RMON 1, 2, 3, 9
- SNMP v1, v2c, v3
- sFlow v5
- MIB
- CLI
- QoS
- Web-based Management
- Memory
- Standard Memory
- 2 GB
- Memory Technology
- SDRAM
- Flash Memory
- 4 GB
- Power Description
- PoE (RJ-45) Port
- No
- Power Source
- Power Supply
- Redundant Power Supply Supported
- Yes
- Physical Characteristics
- Compatible Rack Unit
- 1U
- Form Factor
- Rack-mountable
- Desktop
- Height
- 43.2 mm
- Width
- 467.4 mm
- Depth
- 442.7 mm
- Weight (Approximate)
- 7.17 kg
