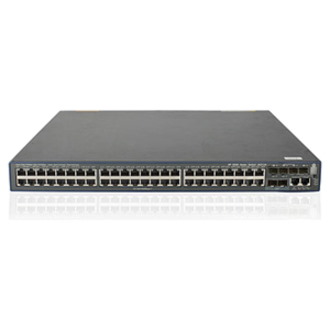

The HP 5500 HI Series of Gigabit Ethernet switches delivers outstanding resiliency, security, and multiservice support capabilities at the edge layer of data center, large campus, and metro Ethernet networks. The switches can also be used in the core layer of SMB networks. The HP 5500 HI Switch Series supports dual power supply and IRF virtual fabric to provide the highest levels of resiliency and manageability. With complete IPv4/IPv6 and MPLS/VPLS features, the series provides investment protection with an easy transition from IPv4 to IPv6 networks. Designed with two fixed 10G ports and extension flexibility, these switches can provide up to six 10-GbE uplink or 70 GbE ports.
- General Information
- Manufacturer
- Hewlett Packard Enterprise
- Manufacturer Website Address
- http://www.hpe.com
- Brand Name
- HPE
- Product Series
- 5500 HI
- Product Type
- Layer 3 Switch
- Interfaces/Ports
- Total Number of Network Ports
- 48
- Token Ring Port
- No
- LRE Port
- No
- Management Port
- Yes
- Number of Network (RJ-45) Ports
- 48
- Port/Expansion Slot Details
- 48 x Gigabit Ethernet Network
- 4 x Gigabit Ethernet Expansion Slot
- 2 x 10 Gigabit Ethernet Expansion Slot
- Media & Performance
- Media Type Supported
- Twisted Pair
- Ethernet Technology
- Gigabit Ethernet
- 10 Gigabit Ethernet
- Network Technology
- 10/100/1000Base-T
- I/O Expansions
- Total Number of Expansion Slots
- 8.0
- Expansion Slot Type
- SFP
- SFP+
- Number of SFP Slots
- 4
- Number of SFP+ Slots
- 2
- Network & Communication
- Layer Supported
- 3
- Management & Protocols
- Manageable
- Yes
- Management
- Web-Based Management
- Command Line Interface
- SNMP v1, v2c, v3
- RMON 1, 2, 3, 9
- Telnet
- DHCP
- sFlow
- VLAN
- QoS
- MIB
- Memory
- Standard Memory
- 1 GB
- Memory Technology
- SDRAM
- Flash Memory
- 512 MB
- Power Description
- PoE (RJ-45) Port
- No
- Power Source
- Power Supply
- Redundant Power Supply Supported
- Yes
- Physical Characteristics
- Compatible Rack Unit
- 1U
- Form Factor
- Rack-mountable
- Height
- 43.6 mm
- Width
- 440 mm
- Depth
- 420 mm
- Weight (Approximate)
- 8.50 kg
- Miscellaneous
- Environmentally Friendly
- Yes
- Environmental Compliance
- Registration, Evaluation, Authorization and Restriction of Chemicals (REACH)
- Restriction of Hazardous Substances (RoHS)
- Waste Electrical and Electronic Equipment Directive (WEEE)
