- General Information
- Manufacturer
- Hewlett Packard Enterprise
- Manufacturer Website Address
- http://www.hpe.com
- Brand Name
- HPE
- Product Line
- ProLiant
- Product Series
- DL365 G11
- Product Type
- Server
Overview | HPE ProLiant DL365 Gen11
Are you looking for a scalable, compute-dense solution for high-performance workloads such as VDI, EDA, or CAD?
The new HPE ProLiant DL365 Gen11 server is a rack-optimized 1U 2P dense solution that delivers exceptional compute performance, upgraded high-speed data transfer rate and memory depth at 2P compute capability. Powered by 4th Generation AMD EPYC™ Processors with up to 96 cores, increased memory bandwidth (up to 6 TB), and high-speed PCIe Gen5 I/O, the HPE ProLiant DL365 Gen11 server is a superb rack-optimized, 1U 2P, dense solution.
The silicon root of trust anchors the server firmware to an HPE-exclusive ASIC, creating an immutable fingerprint for the AMD Secure Processor that must be matched exactly before the server boots.
The HPE ProLiant DL365 Gen11 server is an excellent choice for those who require increased compute density with built-in security and flexibility.
- Warranty
- Limited Warranty
- 3 Year
- Additional Warranty Information
Server warranty includes 3-year parts, 3-year labor, 3-year onsite support with next business day response.
- Processor
- Number of Processors Supported
- 2
- Number of Processors Installed
- 1
- Processor Manufacturer
- AMD

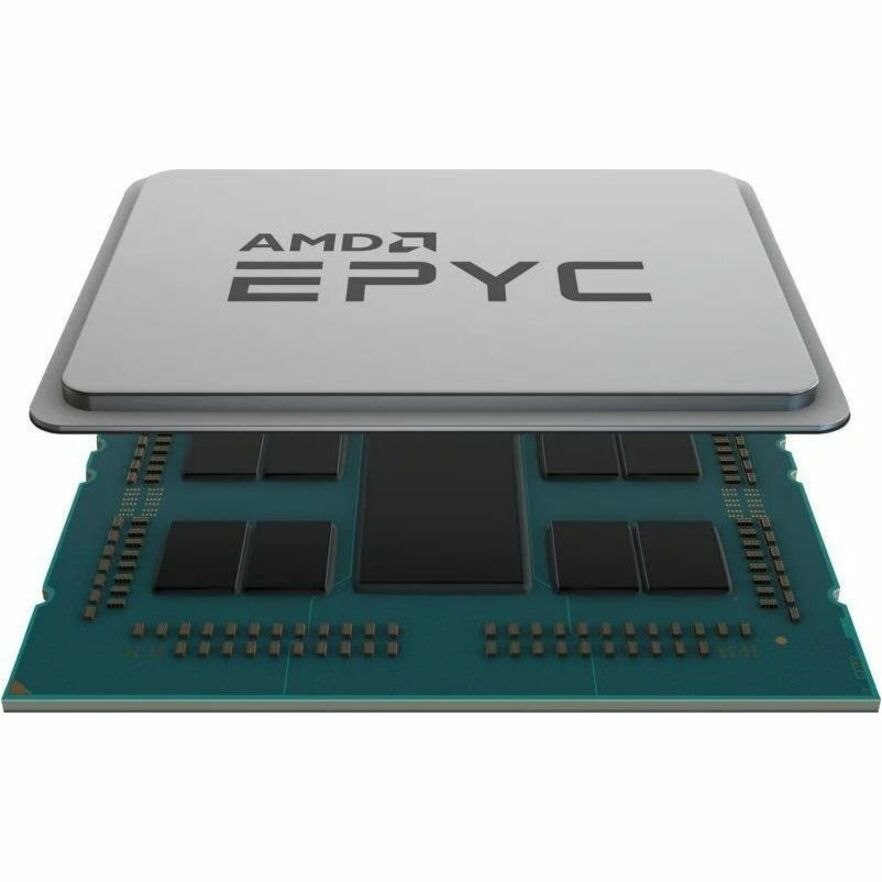

- Processor Type
- EPYC
- Processor Generation
- 4th Gen
- Processor Model
- 9124
- Processor Core
- Hexadeca-core (16 Core)
- Processor Speed
- 3 GHz
- Cache
- 64 MB
- Chipset
- Chipset Manufacturer
- AMD
- Memory
- Standard Memory
- 64 GB
- Maximum Memory Supported
- 6 TB
- Memory Technology
- DDR5 SDRAM
- Error Checking
- ECC
- Total Number of Memory Slots
- 24
- Number of Occupied Memory Slots
- 2
- Signal Processing
- Registered (Buffered)
- Storage
- Number of Solid State Drives
- 2
- Total Solid State Drive Capacity
- 960 GB
- Solid State Drive Interface
- Serial ATA
- Solid State Drive Configuration
- 2 x 480GB
- Controllers
- Controller Type
- 12Gb/s SAS
- Serial ATA/600
- NVMe
- Controller Model
- MR408i-o
- RAID Supported
- Yes
- RAID Levels
- 0, 1, 5, 6, 10, 50, 60
- I/O Expansions
- Number of Total Expansion Bays
- 8
- Number of Internal 2.5" Bays
- 8
- Number of SFF Bays
- 8
- Hot Swappable Bays
- Yes
- Total Number of Expansion Slots
- 1
- PCI Express Details
- 1 x PCIe 5.0 X16 Full-height, full-length
- Display & Graphics
- Graphics Memory Capacity
- 16 MB
- Network & Communication
- Ethernet Technology
- 10 Gigabit Ethernet
- Interfaces/Ports
- Total Number of USB Ports
- 5
- Network (RJ-45)
- Yes
- Number of Network (RJ-45) Ports
- 2
- VGA
- Yes
- Number of VGA Ports
- 1
- Remote Management
- Yes
- Remote Management Controller
- HPE iLO 6
- Operating System
- Operating System Supported
- Windows Server 2019
- Windows Server 2022
- Red Hat Enterprise Linux 8.6
- Red Hat Enterprise Linux 9.0
- SUSE Linux Enterprise Server 15 SP4
- Power Description
- Input Voltage
- 120 V AC
- 230 V AC
- Number of Power Supplies Supported
- 2
- Number of Power Supplies Installed
- 2
- Plug/Connector Type
- C13/C14
- Maximum Power Supply Wattage
- 1 kW
- Redundant Power Supply
- Yes
- Hot Swappable Power Supply
- Yes
- Power Source
- Power Supply
- Physical Characteristics
- Form Factor
- Rack
- Rack Height
- 1U
- Height
- 42.9 mm
- Width
- 448.9 mm
- Depth
- 649.4 mm
- Weight (Approximate)
- 12.70 kg
- Miscellaneous
- Package Contents
- ProLiant DL365 G11 Server
- 6-foot IEC C-13/C-14 Jumper Cord
- ProLiant DL3XX Gen11 Easy Install Rail 2 Kit
- Security Features
- UEFI Secure Boot and Secure Start support
- Immutable Silicon Root of Trust
- FIPS 140-3 validation (iLO 6 certification in progress)
- Common Criteria certification (iLO 6 certification in progress)
- Configurable for PCI DSS compliance
- Advanced Encryption Standard (AES) and Triple Data Encryption Standard (3DES) on browser
- Support for Commercial National Security Algorithms (CNSA)
- Tamper-free updates - components digitally signed and verified
- Secure Recovery - recover critical firmware to known good state on detection of compromised firmware
- Ability to rollback firmware
- Secure erase of NAND/User data
- Energy Star
- Yes
- Environmental Compliance
- Waste Electrical and Electronic Equipment Directive (WEEE)
