- General Information
- Manufacturer
- Hewlett Packard Enterprise
- Manufacturer Website Address
- http://www.hpe.com
- Brand Name
- HPE
- Product Line
- Smart Array
- Product Type
- SAS Controller

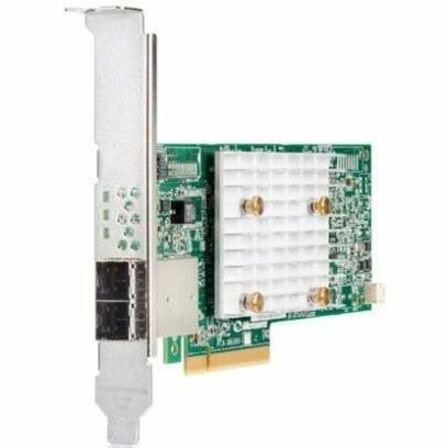

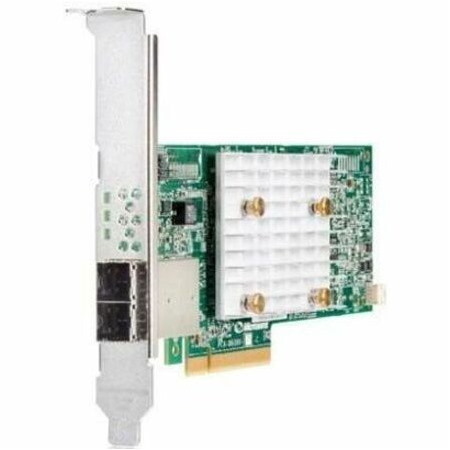

HPE Smart Array SR Gen10 Controllers for HPE ProLiant DL, ML and Apollo Servers
The HPE Smart Array SR Gen10 Controllers for the ProLiant DL and ML Gen10 Servers and Apollo Gen10 Servers, supporting 12Gb/s SAS and PCIe 3.0, are ideal for maximizing performance while supporting advanced RAID levels with up to 4 GB flash-backed write cache (FBWC). These controllers operate in Mixed Mode which combines RAID and HBA/JBOD operations simultaneously. The Smart Array SR Gen10 controller portfolio is able to support up to 24 internally attached drives on a single controller allowing connection to SAS or SATA drives without having to use the SAS Expander card. The Smart Array SR Gen10 Controllers also offer encryption for data-at-rest on any drive with HPE Smart Array SR Secure Encryption. The HPE Smart Array SR Gen10 controller portfolio provides enterprise-class storage performance, reliability, security and efficiency needed to address your evolving data storage needs.
- Technical Information
- Host Interface
- PCI Express 3.0 x8
- Controller Type
- 12Gb/s SAS
- Serial ATA/600
- RAID Supported
- Yes
- Data Backup Type
- Flash Backed Cache
- Maximum Data Transfer Rate
- 12 Gbit/s
- Device Supported
- Server
- Storage System
- Operating System Supported
- Windows Server
- Red Hat Enterprise Linux
- SuSE Linux Enterprise Server
- VMware ESXi
- CentOS
- ClearOS
- Memory
- Cache Memory
- 4 GB
- Interfaces/Ports
- Total Number of SAS Ports
- 8
- Number of SAS Ports (External)
- 8
- SAS Connector Details
- 2 x4 Mini-SAS HD ports
- Physical Characteristics
- Form Factor
- Plug-in Card
- Card Height
- Low-profile
- Weight (Approximate)
- 2.27 kg
- Miscellaneous
- Platform Supported
- PC
- Linux
- Compatibility
- HPE D3610 Disk Enclosure
- HPE D3710 Disk Enclosure
- HPE D6020 Disk Enclosure
- HPE ProLiant DL360 Gen10
- HPE ProLiant DL380 Gen10
- HPE ProLiant DL560 Gen10
- HPE ProLiant DL580 Gen10
- HPE ProLiant ML110 Gen10
- HPE ProLiant ML350 Gen10
- HPE ProLiant XL170r Gen10
- HPE ProLiant XL190r Gen10
- HPE ProLiant XL230K Gen10
