- General Information
- Manufacturer
- Mitac International Corporation
- Manufacturer Website Address
- http://www.mitac.com
- Brand Name
- Mitac
- Product Type
- Server Barebone System

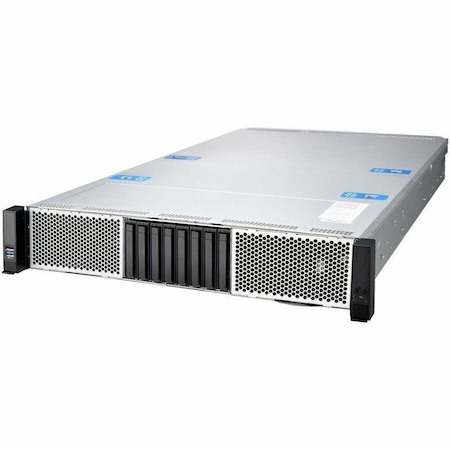

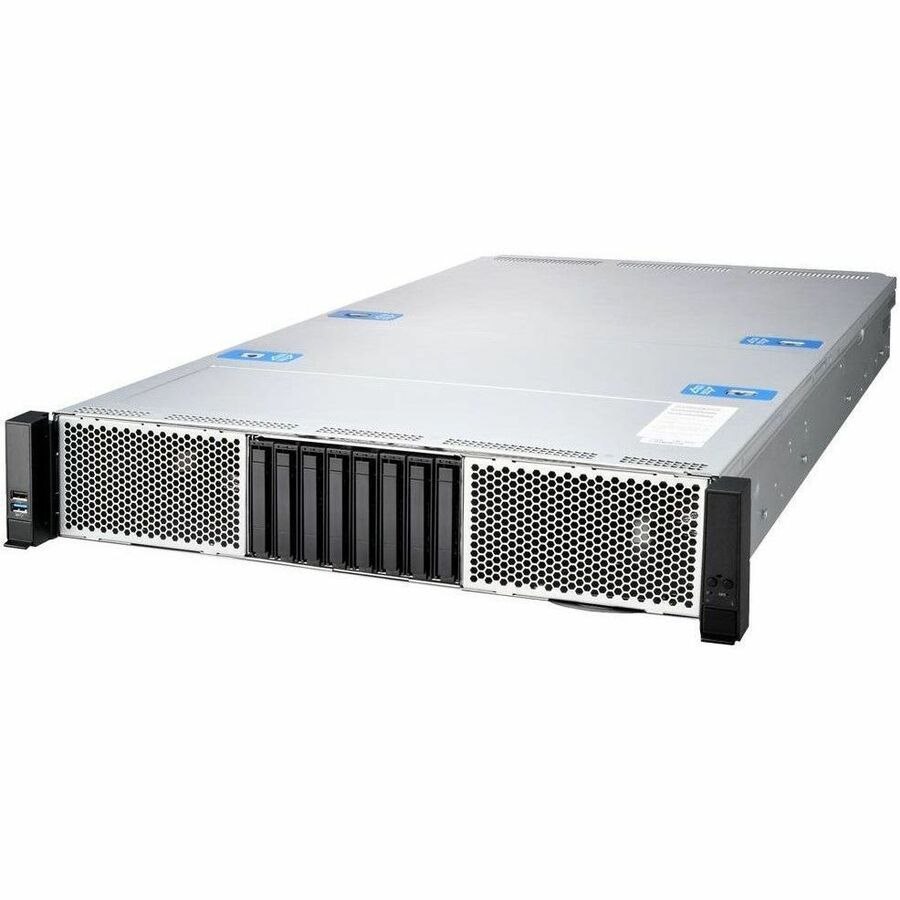

2U Intel® Xeon® 6 HPC/VM Server
The MiTAC R2520G6U2BC server represents the next generation of the M50FCP2UR Intel Server System, delivering cutting-edge performance and versatility tailored for demanding data center and enterprise workloads. Designed as a 2U dual-socket (2S) Birchstream SP server system, it integrates advanced features to meet demanding computing, networking, and AI-driven application requirements.
- Processor
- Number of Processors Supported
- 2
- Processor Socket
- Socket LGA-4710
- Processor Supported
- Xeon 6
- Processor Manufacturer
- Intel
- 64-bit Processing
- Yes
- Chipset
- Chipset Manufacturer
- Intel
- Memory
- Maximum Memory Supported
- 8 TB
- Memory Technology
- DDR5 SDRAM
- Total Number of Memory Slots
- 32
- Storage
- Supported Storage Drive Interfaces
- Serial ATA III
- PCI Express NVMe
- SAS-3
- Supported Storage Drive Types
- SSD
- HDD
- Controllers
- Controller Type
- Serial ATA/600
- 24Gb/s SAS
- NVMe
- Display & Graphics
- Graphics Controller Manufacturer
- ASPEED
- Graphics Controller Model
- AST2600
- Network & Communication
- Ethernet Technology
- Gigabit Ethernet
- I/O Expansions
- Number of Total Expansion Bays
- 8
- Number of 2.5" Bays
- 8
- Total Number of Expansion Slots
- 7
- Number of PCI Express x16 Slots
- 5
- Number of M.2 Interfaces
- 2
- Interfaces/Ports
- Total Number of USB Ports
- 2
- Number of USB 3.0 Ports
- 1
- Network (RJ-45)
- Yes
- Number of Network (RJ-45) Ports
- 1
- Mini DisplayPort
- Yes
- Power Description
- Input Voltage
- 230 V AC
- 120 V AC
- Number of Power Supplies Installed
- 2
- Maximum Power Supply Wattage
- 1.30 kW
- Thermal Design Power
- 350 W
- Frequency
- 50 Hz
- 60 Hz
- Physical Characteristics
- Form Factor
- Rack-mountable
- Rack Height
- 2U
- Height
- 87.1 mm
- Width
- 437.9 mm
- Depth
- 769.9 mm
- Weight (Approximate)
- 26.25 kg
- Miscellaneous
- Environmental Compliance
- Restriction of Hazardous Substances (RoHS) 2
- Restriction of Hazardous Substances (RoHS) 6
