- General Information
- Manufacturer
- Motorola Solutions, Inc.
- Manufacturer Website Address
- http://www.motorolasolutions.com
- Brand Name
- Avigilon
- Product Series
- H5A
- Marketing Information

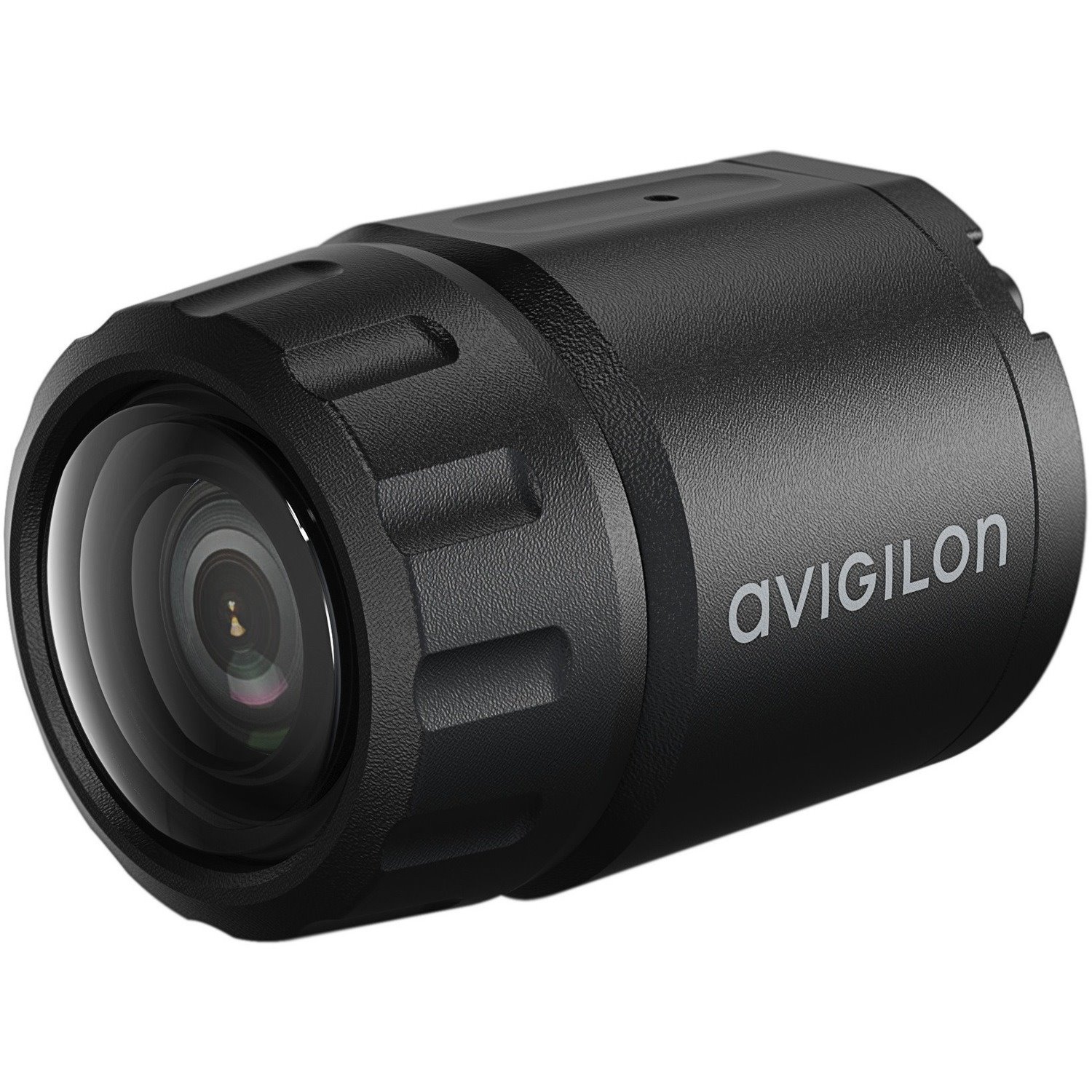

- The Avigilon H5A Modular Camera is designed for areas with limited space or require a discreet and unobtrusive monitoring solution, such as ATMs, police interview rooms, retail checkout counters, building entrances or casino gaming tables. The camera's adjustable imager modules can easily be positioned in different orientations to help capture the most optimal view of people or scenes of interest for investigations. It comes equipped with Next-Generation Video Analytics for enhanced object detection and classification, Unusual Activity Detection, and supports Facial Recognition and Avigilon Appearance Search technologies to expedite response times for critical events.
- Product Type
- Network Camera
- Technical Information
- HD Recording
- Yes
- Display & Graphics
- Colour Supported
- Colour
- Field of View
- 110 ° , 80 °
- Effective Camera Resolution
- 5 Megapixel
- Video
- Video Formats
- H.265
- H.264
- MJPEG
- Maximum Video Resolution
- 2688 x 1944
- Maximum Frame Rate
- 30 fps
- Lens
- Lens Type
- Fixed
- Maximum Focal Length
- 2.80 mm
- Lens Included
- Yes
- Maximum Aperture
- f/2.0
- Exposure
- Shortest Shutter Speed
- 1/80000 Second
- Longest Shutter Speed
- 1/7.5 Second
- Network & Communication
- Connectivity Technology
- Wired
- Remote Management
- Yes
- Storage
- Storage Type
- Memory Card
- Interfaces/Ports
- Network (RJ-45)
- Yes
- Power Description
- Input Voltage
- 12 V DC
- Power Source Type
- DC
- PoE
- Physical Characteristics
- Mount Type
- Bracket Mount
- Form Factor
- Micro Bullet
- Durability
- Water Resistant
- Dust Resistant
- Color Family
- Black
- Product Color
- Black
- Length
- 42 mm
- Diameter
- 30 mm
- Weight (Approximate)
- 43 g
- Environmental Conditions
- Minimum Operating Temperature
- -30°C
- Maximum Operating Temperature
- 60°C
- Maximum Operating Humidity
- 100%
- Miscellaneous
- Features
- Back Light Compensation (BLC)
- Automatic White Balance
- Anti-flicker
- Tamper Detection
- Motion Detection
- Password Protection
- Wide Dynamic Range
- 3D Noise Reduction
- Day/Night
- SD Card Local Storage
- Indoor/Outdoor
- Indoor/Outdoor
- Ingress Protection Rating
- IP66
- Environmentally Friendly
- Yes
- Environmental Compliance
- Restriction of Hazardous Substances (RoHS)
