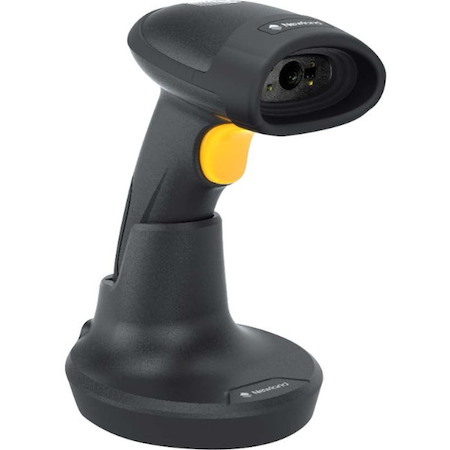

Adopting the latest Bluetooth 5.0 technology, the HR32 Marlin BT SD can maintain a strong, anti-interference connection to transmit data. The HR32 Marlin BT SD is equipped with megapixel technology to read virtually all 1D or 2D barcodes in any condition. From long or truncated 1D codes to larger and more high-density 2D codes.
With a reliable bluetooth connection, this hand scanner is ready for any environment.
This versatile wireless scanner fits right at home in tight workspaces and the outer corners of your stock floors. The detachable dongle seamlessly transforms the charging cradle into a communication cradle.
- General Information
- Manufacturer
- Newland
- Manufacturer Website Address
- http://www.newland-id.com
- Brand Name
- Newland
- Product Line
- HR32 Marlin BT SD
- Product Type
- Barcode Scanner
- Warranty
- Limited Warranty
- 3 Year
- Technical Information
- Connectivity Technology
- Wireless
- Scanning Capability
- 1D
- 2D
- Barcode Symbology Supported
- 1D:
- EAN-8
- EAN-13
- UPC-E
- UPC-A
- Code128
- Coupon
- UCC/EAN128
- CodaBar
- I2Of5
- Febraban
- ITF14
- ITF6
- Matrix 25
- Code39
- Code93
- ISSN
- ISBN
- Industrial 25
- Standard 25
- China Post 25
- Plessey
- Code 11
- MSI Plessey
- UCC/EAN Composite
- GS1 Databar
- Code 49
- Code 16K
- AIM 128
- ISBT 128
- PDF417
- Micro PDF417
- QR Code
- Micro QR Code
- Aztec
- Data Matrix
- Chinese Sensible Code
- Maxicode
- Code One
- Image Sensor Type
- CMOS
- Depth of Field
- EAN 13 (13mil) 50-495mm
- Code 39 (5mil) 85-220mm
- PDF417 (6.67mil) 70-215mm
- Data Matrix (10mil) 50-220mm
- QR (15mil) 20-325mm
- Scanning Distance
- 495 mm
- Cable Type Included
- USB
- Stand Included
- Yes
- Field of View (Horizontal)
- 39°
- Field of View (Vertical)
- 24°
- Reading Angle (Skew)
- 55°
- Reading Angle (Pitch)
- 55°
- Reading Angle (Roll)
- 360°
- Drop Specification
Scanner: 1.5m Cradle: 1.2 m
- Minimum Print Contrast
- 25%
- Maximum Element Resolution (Code 39)
- 0.13 mm
- Maximum Element Resolution (DataMatrix)
- 0.25 mm
- Maximum Element Resolution (PDF417)
- 0.17 mm
- Image Sensor Resolution
- 1280 x 800
- Illumination Type
- LED
- Illumination Color
- White
- Memory
- Flash Memory
- 1 MB
- Network & Communication
- Bluetooth
- Yes
- Interfaces/Ports
- Host Interface
- USB
- Battery Information
- Battery Capacity
- 2400 mAh
- Maximum Battery Run Time
- 12 Hour
- Maximum Battery Recharge Time
- 4 Hour
- Environmental Conditions
- Operating Temperature
- -20°C to 50°C
- Storage Temperature
- -40°C to 70°C
- Humidity (Non-condensing)
- 5% to 95%
- Physical Characteristics
- Form Factor
- Handheld
- Height
- 159 mm
- Width
- 113.5 mm
- Depth
- 73.3 mm
- Weight (Approximate)
- 217 g
- Miscellaneous
- Package Contents
- HR32 Marlin BT SD
- Docking Station
- USB cable
- Ingress Protection (IP) Rating
- IP42
- Application/Usage
- Healthcare
- Retail
- Warehouse
- Hospitality
- Software Supported
- EasySet Configuration Tool
- Environmentally Friendly
- Yes
- Environmental Compliance
- Restriction of Hazardous Substances (RoHS)
