- General Information
- Manufacturer
- Newland
- Manufacturer Website Address
- http://www.newland-id.com
- Brand Name
- Newland
- Marketing Information

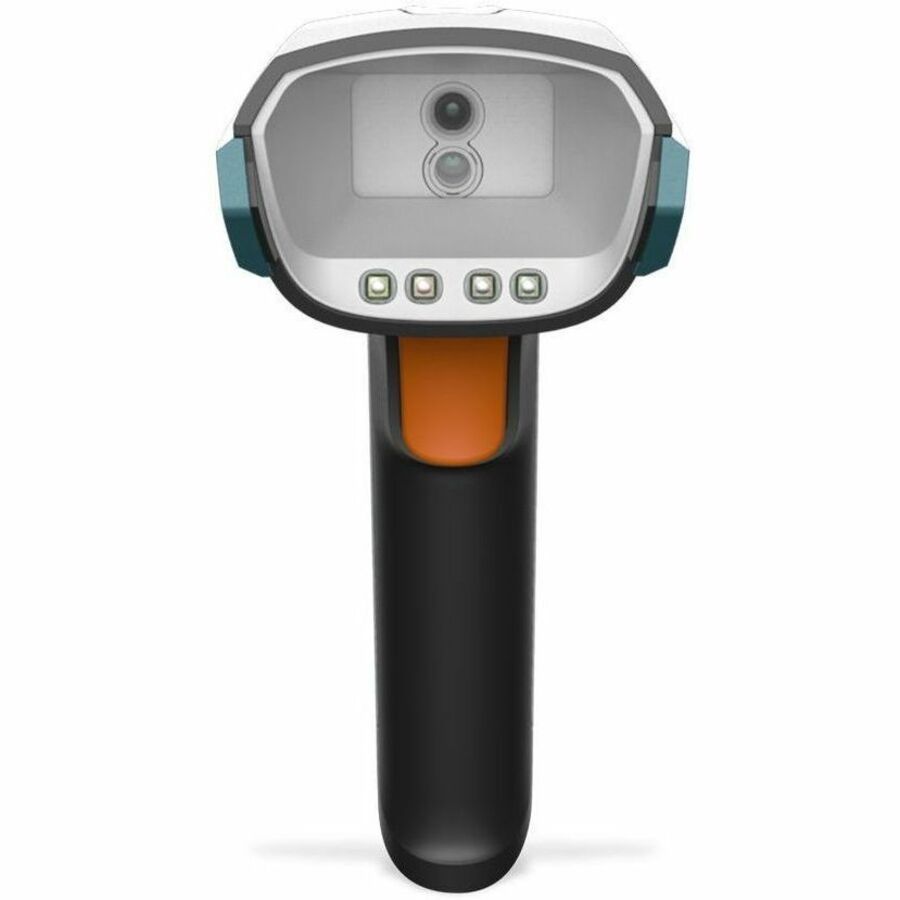

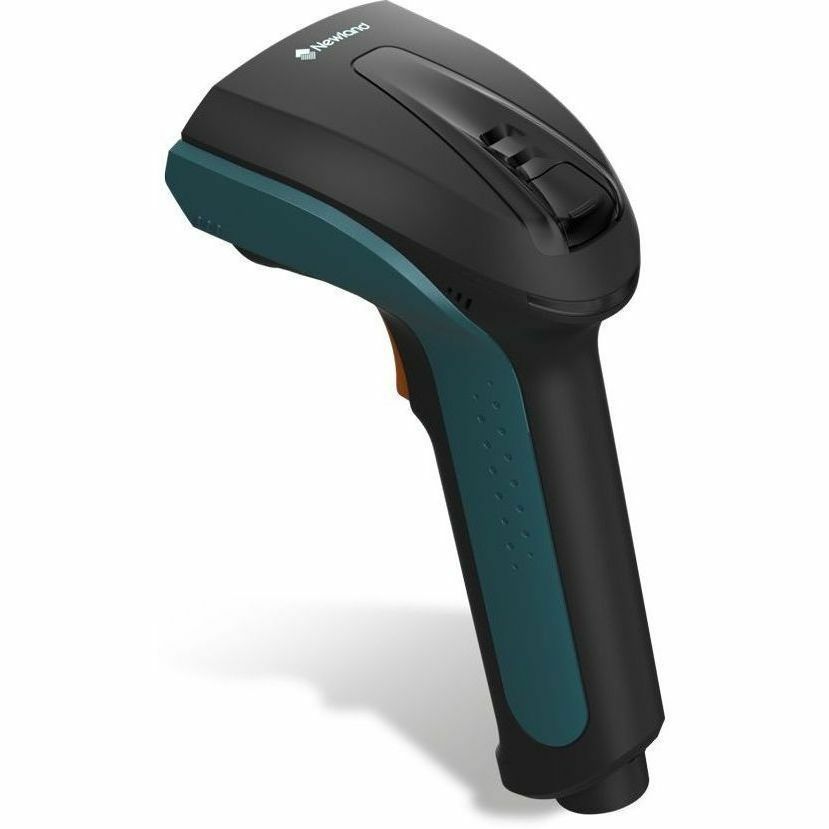

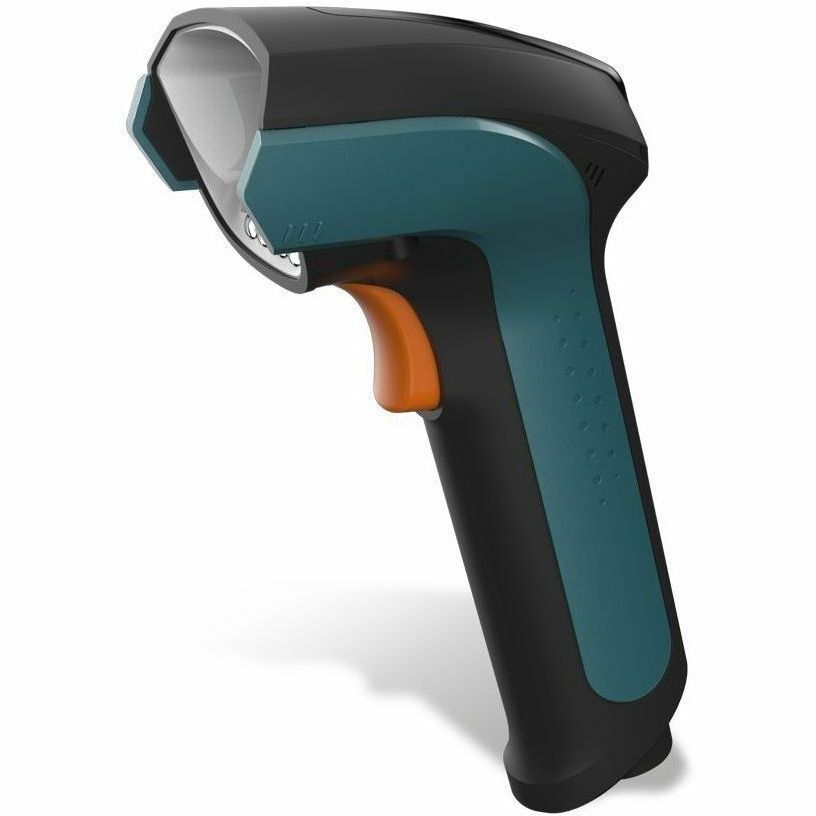

Why choose the NVH220 Lophius AI Bluetooth?
- AI-powered barcode detection technology to detect, locate, and read barcodes
- Exceptional decoding of DPM barcodes, including laser part marking and dotting techniques
- Wireless scanning up to 150m with Bluetooth 5.0
The NVH220 Lophius AI Bluetooth is a reliable and cost-effective solution designed with ergonomics and a user-friendly interface in mind. It features AI-powered barcode detection and auto-learning capabilities, allowing it to accurately decode a wide range of barcodes in industrial applications, including Direct Part Marking (DPM), even on challenging surfaces. Plus, with Bluetooth 5.0, the Lophius provides fast wireless communication and data transmission over distances of up to 150 meters.
Reliable and rugged DPM scanning.
Features
AI-Powered Scanning Technology.
The NVH220 Lophius AI BT is equipped with Newland's UIMG and AI-Powered Barcode Detection scanning technologies. These advanced systems enable rapid, accurate, and reliable decoding of both 1D and 2D barcodes, even when they are damaged or distorted, as well as on reflective and curved surfaces. AI-powered devices utilize computer vision and self learning to interpret barcodes accurately. They efficiently analyze images to detect, locate, and read barcodes. The NVH220 Lophius AI BT excels in challenging conditions, demonstrating advanced decoding performance and providing a reliable scanning solution that functions flawlessly in any situation.
High-Performance DPM Scanning
The NVH220 Lophius AI BT is distinguished by its outstanding ability to decode DPM barcodes, including those created using laser part marking and dotting techniques. Equipped with an upgraded dual-core processing platform, the NVH220 offers enhanced performance while consuming less power. This results in faster and more stable decoding, as well as improved image capture.
Robust by Design.
The NVH220 Lophius AI BT is built for durability, featuring a robust design that can endure challenging conditions. Its high-protection construction and IP64-sealed housing ensure reliable performance, even in environments with dust and water exposure, as well as after repeated drops from heights of up to 1.8 meters.
Advanced Illumination.
The NVH220 Lophius AI BT features both red and blue direct illumination and white diffuse lighting. These lighting options can be easily activated using the auto-learning function button located on the top of the device. With this feature, the NVH220 automatically adjusts brightness and light source to optimize barcode decoding, even on challenging materials. This includes reflective surfaces, curved shapes, varied backgrounds (ranging from low to high contrast), and different barcode colors.
Reliable Data Transmission.
The NVH220 Lophius AI BT, equipped with Bluetooth 5.0, ensures fast wireless communication with low latency. This stable and reliable connection supports data transmission over a range of up to 150 meters, providing all-day flexibility and efficiency on the work floor.
- Product Type
- Barcode Scanner
- Warranty
- Limited Warranty
- 3 Year
- Additional Warranty Information
- Comprehensive Service Contract: 3 Years, 5 Years
- Warranty Extension: +2 Years
- Warranty Standard: 3 Years
- Technical Information
- Connectivity Technology
- Cable/Wireless
- Scanning Capability
- 2D
- Barcode Symbology Supported
1D:
EAN-13, EAN-8, UPC-A, UPC-E, ISSN, ISBN, Codabar, Code128, Code93, ITF-6, ITF-14, Interleaved 2 of 5, Industrial 2 of 5, Standard 2 of 5, Matrix 2 of 5, Code 39, AIM 128, GS1 Composite, GS1-128(UCC/EAN), ISBT 128, Code 11, MSI-Plessey, Plessey, etc.
2D:
QR Code, PDF417, Micro QR, Data Matrix, AZTEC.
- Light Source
- Laser
- Image Sensor Type
- CMOS
- Depth of Field
- Depth of Field Code 39 (20mil): 65 mm - 350 mm
- Depth of Field Code 39 (5mil): 0 mm - 160 mm
- Depth of Field EAN 13 (13mil): 15 mm - 220 mm
- Depth of Field QR (10mil): 0 mm - 160 mm
- Depth of Field QR (20mil): 0 mm - 225 mm
- Scanning Distance
- 350 mm
- Features
- Auto-learning
- Advanced Illumination
- Beep
- Notification LED
- Vibration
- High Performance DPM Scanning
- Ergonomic Design
- Cable Type Included
- USB
- Field of View (Horizontal)
- 33°
- Field of View (Vertical)
- 22°
- Reading Angle (Skew)
- 50°
- Reading Angle (Pitch)
- 50°
- Reading Angle (Roll)
- 360°
- Drop Specification
1.8 m
- Minimum Print Contrast
- 15%
- Minimum Element Resolution (Code 39)
- 0.13 mm
- Maximum Element Resolution (Code 39)
- 0.51 mm
- Direct Part Marking (DPM) Decoding
- Yes
- Image Sensor Resolution
- 1280 x 800
- Illumination Type
- LED
- Illumination Color
- White
- Air Electrostatic Discharge (+/-)
- 16kV
- Contact Electrostatic Discharge (+/-)
- 8kV
- AI-powered
- Yes
- Network & Communication
- Bluetooth
- Yes
- Interfaces/Ports
- Host Interface
- Ethernet
- Micro USB
- Serial
- Multi-interface
- USB
- Power Description
- Maximum Operating Power Consumption
- 1.40 W
- Power Supply Included
- Yes
- Input Current
- 370 mA
- Standby Current
- 90 mA
- Battery Information
- Battery Capacity
- 2900 mAh
- Maximum Battery Recharge Time
- 3 Hour
- Environmental Conditions
- Operating Temperature
- -20°C to 50°C
- Storage Temperature
- -40°C to 70°C
- Humidity (Non-condensing)
- 5% to 95%
- Physical Characteristics
- Form Factor
- Handheld
- Rugged
- Yes
- Durability
- Drop Resistant
- Height
- 180 mm
- Width
- 68 mm
- Depth
- 86 mm
- Weight (Approximate)
- 218 g
- Miscellaneous
- Package Contents
- NVH220 Lophius AI Bluetooth
- Docking Station
- USB Cable
- 5V Power Supply
- Ingress Protection (IP) Rating
- IP64
- Application/Usage
- Healthcare
- Transportation
- Logistics
- Warehouse
- Distribution
- Field Service
- Utility
- Industrial
- Software Supported
EasySet
- Environmental Compliance
- Restriction of Hazardous Substances (RoHS) 2
