- General Information
- Manufacturer
- Perle Systems, Inc
- Manufacturer Website Address
- http://www.perle.com
- Brand Name
- Perle
- Product Line
- IOLAN
- Product Type
- Device Server
- Warranty
- Limited Warranty
- Lifetime
- Technical Information
- Connectivity Technology
- Wired
- IP Rating
- IP40
- Processor & Chipset
- Processor Manufacturer
- NXP
- Processor Speed
- 66 MHz
- Memory
- Standard Memory
- 32 MB
- Media & Performance
- Media Type Supported
- Twisted Pair
- Network & Communication
- Ethernet Technology
- Fast Ethernet
- Network Standard
- 10/100Base-T
- Interfaces/Ports
- Network (RJ-45)
- Yes
- Serial Port
- Yes
- Total Number of Network Ports
- 1
- Number of Network (RJ-45) Ports
- 1
- Number of Serial Ports
- 1
- Environmental Conditions
- Minimum Operating Temperature
- 0°C
- Maximum Operating Temperature
- 55°C
- Power Description
- Input Voltage
- 12 V DC
- 24 V DC
- Input Voltage Range
- 9 V DC - 30 V DC
- Power Consumption
- 1.70 W
- Physical Characteristics
- Product Material
- Metal
- Form Factor
- Wall Mountable
- Panel-mountable
- DIN Rail Mountable
- Height
- 22.1 mm
- Width
- 63.5 mm
- Depth
- 91.4 mm
- Weight (Approximate)
- 104.3 g
- Miscellaneous
- Package Contents

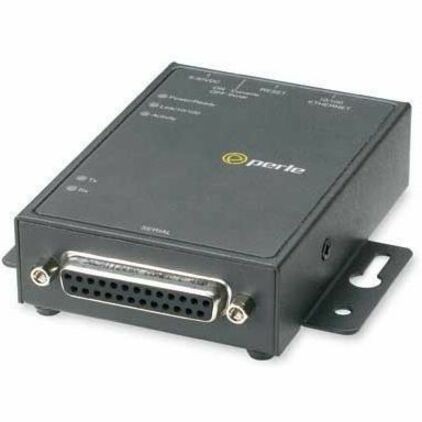

- IOLAN SDS1 Device Server
- 230V AC Wall Power Adaptor
- Certifications & Standards
- NDAA
- CFR47:2003, Chapter 1, Part 15 Subpart B,(USA) Class A
- ICES-003, Issue 4, February 2004 (Canada)
- CISPR 32:2015/EN 55032:2015 (Class A)
- EN55011 (CISPR11)
- EN61000-3-2 : 2010, Limits for Harmonic Current Emissions
- EN61000-3-3 : 2010, Limits of Voltage Fluctuations and Flicker
- CISPR 35/EN 55035
- EN61000-4-2: 2009 Electrostatic Discharge
- EN61000-4-3: 2006/A2:2010: RF Electromagnetic Field Modulated
- EN61000-4-4: 2004 Fast Transients
- EN61000-4-5: 2006 Surge
- EN61000-4-6: 2009 RF Continuous Conducted
- EN61000-4-8: Power-Frequency Magnetic Field
- UL/EN/IEC 62368-1
- CAN/CSA C22.2 No. 62368-1
- IEC 60950-1 (ed 2); am1 am2 and EN 60950-1: 2006+A11: 2009+A1: 2010+A12: 2011+A2: 2013
- CAN/CSA-C22.2 No. 60950-1-03 and ANSI/UL 60950-1, Second Edition
- Environmental Compliance
- Restriction of Hazardous Substances (RoHS)
- Registration, Evaluation, Authorization and Restriction of Chemicals (REACH)
- Waste Electrical and Electronic Equipment Directive (WEEE)
- TAA Compliant
- Yes
