Buy Perle Cellular Modem/Wireless Router - TAA Compliant

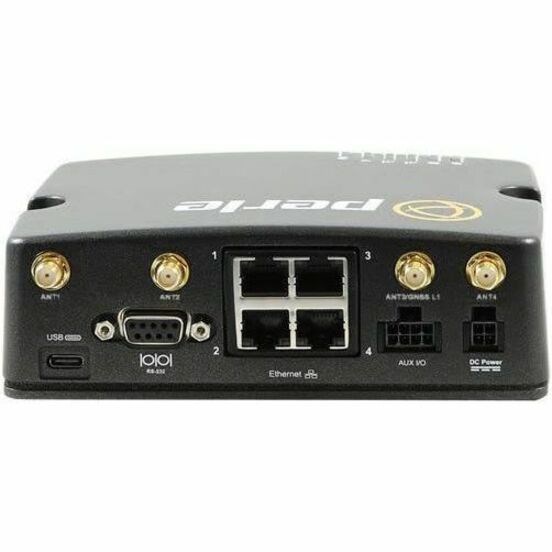

Perle Cellular Modem/Wireless Router - TAA Compliant

Part: 2106904
Model: 08000511

£1,584.00

Availability

Out of Stock

Perle IRG7000 5G Routers and Gateways have the most comprehensive set of features, functionality, and performance to provide primary or back-up 5G connectivity to remote infrastructure and assets. These ultra-low-power, rugged, high-performance Cellular Routers can be quickly and easily deployed using an intuitive web GUI. For advanced admin scripts, RESTFul API and CLI commands are also available.

Perle IRG7000 5G Routers provide fast, secure, and reliable managed 5G network connectivity where wired options are impossible to deploy or require a backup. This is crucial for enabling a wide range of applications while ensuring the highest degree of security to protect the integrity of critical services. Reduce the cost of downtime and service calls, and bringing distributed sites online faster. With support for Data, SMS, Voice, and Video, an IRG7000 and can be integrated into any enterprise cloud, building, industrial, or mobile location network infrastructure.

Building and process automation controllers, Internet of Things (IoT)
Smart grid assets (meters, switches, controllers), Telco infrastructure controllers
SCADA, Distribution management systems, Remote data loggers, flow meters, sensing equipment
Digital signage, ATMs, POS, Kiosks, Temporary "pop-up" stores
Video surveillance controllers, IP cameras, Mobile hotspots
Fleet management, GPS/GNSS Location tracking, Taxis, Public Service Vehicles, vehicle area networking (VAN)
Public Service Vehicles, First responders, Command Centers
Transit systems, Buses, Metro Subways, Railways

General Information
- Manufacturer
- Perle Systems, Inc
- Manufacturer Website Address
- http://www.perle.com
- Brand Name
- Perle
- Product Series
- IRG7000
- Product Type
- Modem/Wireless Router

Warranty
- Limited Warranty
- 2 Year

Technical Information
- High Availability Supported
- Yes
- Processor Core
- Dual-core (2 Core)
- Processor Speed
- 1.20 GHz
- Memory Technology
- DDR4 SDRAM
- Standard Memory
- 1 GB

Wireless Specifications
- Broadband Transmission Technology
- Cellular
- Ethernet
- Cellular Generation
- 5G
- Cellular Data Connectivity Technology
- 5G NR
- LTE Cat20
- LTE
- HSPA
- HSPA+
- UMTS
- WCDMA
- Encryption Standard
- 3DES
- AES-CBC
- AES-CTR
- CAST
- SSL
- TLS
- MD5
- TLS 1.1
- TLS 1.2
- Firewall Type
- NAT

Interfaces/Ports
- Total Number of Network Ports
- 4
- Number of Network (RJ-45) Ports
- 3
- USB
- Yes
- Number of Broadband (RJ-45) Ports
- 1
- USB Standard
- USB Type C

Network & Communication
- Ethernet Technology
- Gigabit Ethernet
- VPN Supported
- Yes
- SIM Size Supported
- Mini

Storage
- Flash Memory Capacity
- 4 GB
- Storage Media
- MultiMediaCard (MMC)

Physical Characteristics
- Product Material
- Die-cast Aluminum
- Form Factor
- DIN Rail Mountable
- Panel-mountable
- Wall Mountable
- Height
- 45 mm
- Width
- 146 mm
- Depth
- 99 mm
- Weight (Approximate)
- 580 g

Miscellaneous
- Package Contents
- - IRG7000 Modem/Wireless Router
  - Power Supply
- Certifications & Standards
- - FCC/ICES
  - RED
  - PTCRB/CTIA
  - CE
  - AT&T
  - Verizon IRG5410
  - T-Mobile for Wholesale
  - T-Mobile for Business
  - MIL-STD-810G
  - FCC 47 Part 15 Subpart B, Class A
  - ICES-003 Issue 6 Class A (Canada)
  - ANSI C63.4 Class A
  - EN61000-3-2: 2014 (Limits for Harmonic Current Emissions)
  - EN61000-3-3: 2013 (Limits of Voltage Fluctuations and Flicker)
  - EN 61000-6-4: 2007 + A1: 2011
  - CISPR 32:2015/EN 55032:2015 Class A
  - CISPR 35:2016/EN 55035:2017 (IR)
  - EN 61000-4-2:2009 (ESD) +/-8 kV (Contact), +/-15 kV (Air) Operating mode: powered on
  - EN 61000-4-3: 2006 + A1:2007 + A2:2010(RS)
  - EN 61000-4-4:2012 (EFT) 2 KV (Criteria A)
  - EN 61000-4-5:2014+AMD1:2017 (Surge) 2KV (line to earth), 1.5KV (line to line)
  - EN 61000-4-6: 2013 (CS)
  - EN 61000-4-8: 2009 (PFMF)
  - EN 61000-4-9: 2016 (PMF)
  - EN 61000-4-11: 2004 + A1:2017
  - EN 61000-4-16
  - EN 61000-6-2 (General Immunity for Industrial Environments)
  - CE Mark
  - UL/EN/IEC 62368-1 (including CB)
  - CAN/CSA C22.2 No. 62368-1-14
  - EN 301 489-1:2019 Ed2.2.3
  - EN 301 908-25 (Imt Cellular Network: Essential requirements)
  - EN 62311:2020 (Human exposure restrictions for radio frequency electromagnetic fields)
- Environmental Compliance
- Registration, Evaluation, Authorization and Restriction of Chemicals (REACH)
- Restriction of Hazardous Substances (RoHS)
- Waste Electrical and Electronic Equipment Directive (WEEE)
- TAA Compliant
- Yes
