Precision. Clarity. Power.

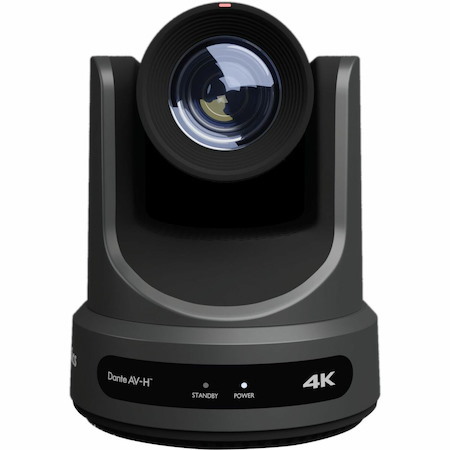

Experience the cutting-edge prowess of PTZOptics Link 4K, boasting 4K 60fps auto-tracking, simultaneous outputs, and versatile control options. Seamlessly integrate with leading video production software like OBS, vMix, and Wirecast for an unparalleled live streaming experience.
Auto-Tracking & Auto-Framing: Enable auto-tracking or auto-framing, perfect for education, conferences, live broadcasts, and more.
Multiple Control Options: IR remote, network connection, RS-232, RS-485, Web UI, PTZ Control App, USB port, and Camera Management Platform.
Simultaneous Outputs: Dante AV-H, USB, & IP with either SDI or HDMI.
4K Ultra HD: Next generation SONY UHD CMOS sensor for shooting high-quality 4K video at 60 FPS. Adjustable to numerous other resolutions and frame rates.
Dante's Auto-Discovery: Easily discover and connect to Dante Studio Monitor.
Built-in Tally Light: Indicates if the camera is live or in preview mode.
- General Information
- Manufacturer
- PTZOptics
- Manufacturer Website Address
- http://www.ptzoptics.com
- Brand Name
- PTZOptics
- Product Type
- Network Camera
- Technical Information
- Recording Formats
- 4K
- HD Recording
- Yes
- Night Vision
- Yes
- Night Vision Distance
- 9.14 m
- Night Vision Type
- Infrared
- Display & Graphics
- Image Sensor Type
- CMOS
- Image Sensor Size
- 1/2.5"
- Colour Supported
- Colour
- Field of View
- (12X) H 6.9° ~ 72.5° | V 3.9° ~ 44.8°
- Effective Camera Resolution
- 8.5 Megapixel
- Video
- Video Formats
- MJPEG
- H.264
- H.265
- Maximum Video Resolution
- 3840 x 2160
- Maximum Frame Rate
- 60 fps
- Lens
- Lens Type
- Zoom
- Minimum Focal Length
- 4.40 mm
- Maximum Focal Length
- 52.80 mm
- Lens Included
- Yes
- Minimum Aperture
- f/2.6
- Maximum Aperture
- f/1.8
- Optical Zoom
- 12x
- Exposure
- Shortest Shutter Speed
- 1/30 Second
- Longest Shutter Speed
- 1/10000 Second
- PTZ Modes
- Preset Point
- Network & Communication
- Connectivity Technology
- Wired
- Ethernet Technology
- Gigabit Ethernet
- Protocols
- VISCA
- PELCO-D
- PELCO-P
- RTSP
- RTMP
- Remote Management
- Yes
- Interfaces/Ports
- USB
- Yes
- HDMI
- Yes
- Network (RJ-45)
- Yes
- Power Description
- Input Voltage
- 12 V DC
- Power Source Type
- DC
- PoE
- Physical Characteristics
- Color Family
- Grey
- Product Color
- Grey
- Product Material
- Aluminium
- Plastic
- Height
- 200.9 mm
- Width
- 141.5 mm
- Depth
- 168.9 mm
- Weight (Approximate)
- 1.47 kg
- Environmental Conditions
- Minimum Operating Temperature
- -10°C
- Maximum Operating Temperature
- 40°C
- Minimum Storage Temperature
- -40°C
- Maximum Storage Temperature
- 60°C
- Miscellaneous
- Features
- Auto Tracking
- Built-in Tally Light
- PTZ
- Mirror
- Wide Dynamic Range
- 3D Noise Reduction
- Indoor/Outdoor
- Indoor
