- General Information
- Manufacturer
- Ricoh Imaging Company, Ltd.
- Manufacturer Website Address
- http://www.ricoh.co.uk
- Brand Name
- Ricoh
- Product Series
- fi
- Product Type
- ADF/Manual Feed Scanner
The robust wide-format scanner

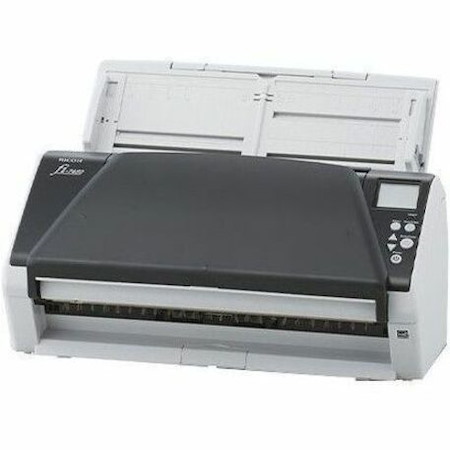

fi-7480 Document Scanner
Designed for professional workloads and engineered to last, the fi-7480 scanner offers wide-format scanning in a compact, best-in-class space. Robust feeding of mixed documents and automatic stacking technology reduces document handling time and total cost of scanning.
Image Quality
This wide-format scanner is built with powerful Charge-Couple Devices (CCD) cameras to capture large, doubleletter and odd sized papers with clarity and color precision. These dual CCDs capture both front and back side of the pages with accurate focus and color reproduction at the same time while maintaining rated speeds.
Paper Feeding
Engineered for superior paper feeding, the fi-7480 can easily handle thick, thin, wide and narrow documents. The 100 page feeder (50 double letter) feeds in stacks of pages rapidly. With smart skew resistance, a built-in manual feed mode switch, and automatic stacking technologies, feeding and retrieval is simple and efficient.
Reliability
The fi-7480 is built to last and powers up every time you need it regardless of job size. Strong urethane rollers, heavy duty motors, a sturdy frame, and durable consumables combine for a long-lasting scanner that will let your organization capture the volumes of paper from seasonal peaks and heavy backlogs, worry free. Backed by US-based, legendary solutions architects and support teams.
- Technical Information
- Optical Resolution (dpi)
- 600
- Scan Color
- Colour
- Monochrome
- Greyscale
- Colour Depth
- 24-bit
- Grayscale Depth
- 8-bit
- Maximum Mono Scan Speed (ppm)
- 80
- Maximum Color Scan Speed (ppm)
- 80
- Maximum Mono Scan Speed (ipm)
- 160
- Maximum Color Scan Speed (ipm)
- 160
- Media Type
- Plastic Card
- Paper Document
- Embossed Card
- Media Size
- - 279.40 mm x 431.80 mm
- - 50.80 mm x 69.09 mm
- A3 - 297 mm x 420 mm
- Scanning Modes
- Duplex
- ADF Capacity
- 100 Sheets
- Duplex Scanning
- Yes
- Interfaces/Ports
- USB
- Yes
- Software
- Operating System Supported
- Windows 11
- Windows 10
- Windows 7
- Windows 8.1
- Windows Server 2022
- Windows Server 2019
- Windows Server 2016
- Windows Server 2012 R2
- Windows Server 2012
- Windows Server 2008 R2
- Ubuntu
- Linux
- Power Description
- Input Voltage
- 120 V AC
- 230 V AC
- Input Frequency
- 50 Hz
- 60 Hz
- Physical Characteristics
- Height
- 167.6 mm
- Width
- 381 mm
- Depth
- 208.3 mm
- Weight (Approximate)
- 7.60 kg
- Miscellaneous
- Energy Star
- Yes
- Environmentally Friendly
- Yes
- Environmental Certification
- Electronic Product Environmental Assessment Tool Silver (EPEAT Silver)
- Environmental Compliance
- Restriction of Hazardous Substances (RoHS)
