- General Information
- Manufacturer
- SIIG, Inc
- Manufacturer Website Address
- http://www.siig.com
- Brand Name
- SIIG
- Product Type
- SATA Controller

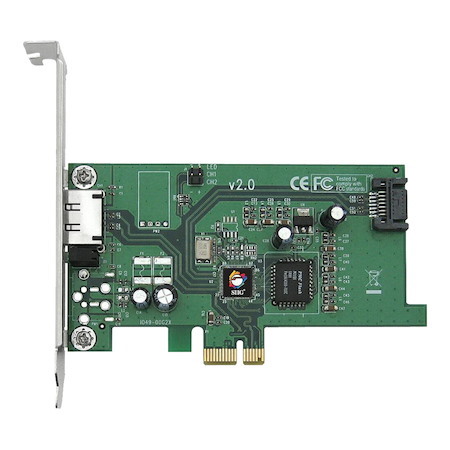

SIIG's eSATA II PCIe i/e controller card is designed to add two SATA channels (one internal and one external) for connecting up to two additional SATA hard disk drives. The eSATA II PCIe i/e controller card features the latest eSATA connector, delivers data transfer rates of up to 3.0Gb/s, and supports 48-bit LBA for drives with capacity larger than 137GB. Additional features include independent command fetch, scatter/gather, command execution, Native Command Queuing (NCQ), Non-zero offsets NCQ, Out-of-order data delivery NCQ, and hard disk hot-plugging ensure fast and reliable data transfers.
The eSATA II PCIe i/e controller card comes with the included spare low profile bracket for installing into either standard height or low profile system chassis. It is fully compatible with a wide variety of Windows operating systems and is backed by SIIG's limited lifetime warranty.
- Warranty
- Limited Warranty
- Lifetime
- Technical Information
- Host Interface
- PCI Express x1
- Controller Type
- Serial ATA/300
- Number of Physical Drive Supported
- 2
- Interfaces/Ports
- Total Number of SATA Ports
- 2
- Number of SATA Ports (Internal)
- 1
- Number of SATA Ports (External)
- 1
- Physical Characteristics
- Form Factor
- Plug-in Card
- Miscellaneous
- Additional Information
- Compliant with PCI Express Base Specification Revision 1.0a
- Compliant with Serial ATA 1.0a specification with support for complement of SATA II optional features
- Compliant with eSATA (external SATA) connector specification
- Installs in any available PCI Express slot and supports data transfer rates up to 3.0Gbps (300MBps)
- Supports 48-bit LBA for drives with capacity larger than 137GB
- Integrated Serial ATA Link and PHY logic
- Supports two independent Serial ATA channels
- Supports Native Command Queuing (NCQ), Non-zero offsets NCQ, and Out-of-order data delivery NCQ
- Independent command fetch, scatter/gather, and command execution
