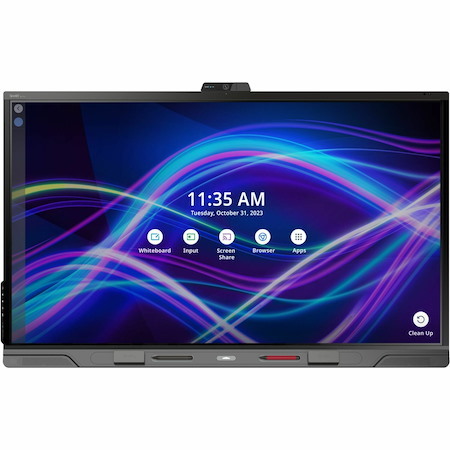

The SMART Board® QX Pro series is the unmatched all-in-one technology solution designed for the dynamic needs of the modern workplace. The QX Pro series puts everything you need to deliver a seamless interactive and collaborative meeting experience in one place.
- General Information
- Manufacturer
- SMART Technologies, Inc
- Manufacturer Website Address
- http://www.smarttech.com
- Brand Name
- SMART
- Product Line
- SMART Board
- Product Series
- QX Pro
- Product Type
- Interactive Whiteboard
- Technical Information
- Screen Size
- 218.4 cm (86")
- Aspect Ratio
- 16:9
- Multi-touch Screen
- Yes
- Connectivity Technology
- Wired/Wireless
- Built-in Devices
- Built-in Devices
- Speaker
- Subwoofer
- Network & Communication
- Bluetooth
- Yes
- Near Field Communication
- Yes
- Interfaces/Ports
- HDMI
- Yes
- Number of USB 2.0 Ports
- 1
- Power Description
- Input Voltage
- 120 V AC
- 230 V AC
- Operating Power Consumption
- 135 W
- Physical Characteristics
- Product Color
- Black
- Platform Supported
- Windows
- Mac
- Linux
- Android
- ChromeOS
- Height
- 1255 mm
- Width
- 1993 mm
- Depth
- 121 mm
- Weight (Approximate)
- 69.85 kg
- Miscellaneous
- Additional Information
- Operating temperature 41-95°F (5-35°C)
- Storage temperature -4-140°F (-20-60°C)
- Humidity 5-80% relative humidity, non-condensing
- Bluetooth 5.2 dual mode
- Operating system: Android version 11
- Memory: 8 GB DDR
- Storage: 32 GB (up to 544 GB)
- Screen sharing: Yes
Inputs:
- OPS PC accessory slot (100 W devices): 1
- MicroSD slot with security cover: 1
- HDMI® 2.1 with HDCP 1.4 and HDCP 2.3 support: 3
- VGA video: 1
- Stereo 3.5 mm (variable): 1
- RS-232 (DB-9 connector): 1
- RJ45 (LAN IN): 1
- USB Type-C 4K @ 60Hz, Display Port 1.2, USB 2.0 (UFP) for touch and digital audio, USB 3.2 Gen 1 (DFP) for peripherals; 65 W power delivery: 2
- USB Type-C, SuperSpeed (5 Gbps); 15 W power delivery: 1
- USB 2.0 Type-A: 1
- USB 3.2 Gen 1 Type-A (1 × front and 1 × back are switched to an active input): 3
- USB 3.2 Gen 1 Type-B: 4
Outputs:
- HDMI 2.1 with HDCP 1.4 and HDCP 2.3 Support: 1
- Stereo 3.5 mm (variable): 1
- S/PDIF optical (fixed): 1
- RJ45 (Lan Out): 1
- Energy Star
- Yes
