- General Information
- Manufacturer
- StarTech.com
- Manufacturer Website Address
- http://www.startech.com/uk
- Brand Name
- StarTech.com
- Packaged Quantity
- 1
- Product Type
- Video Emulator

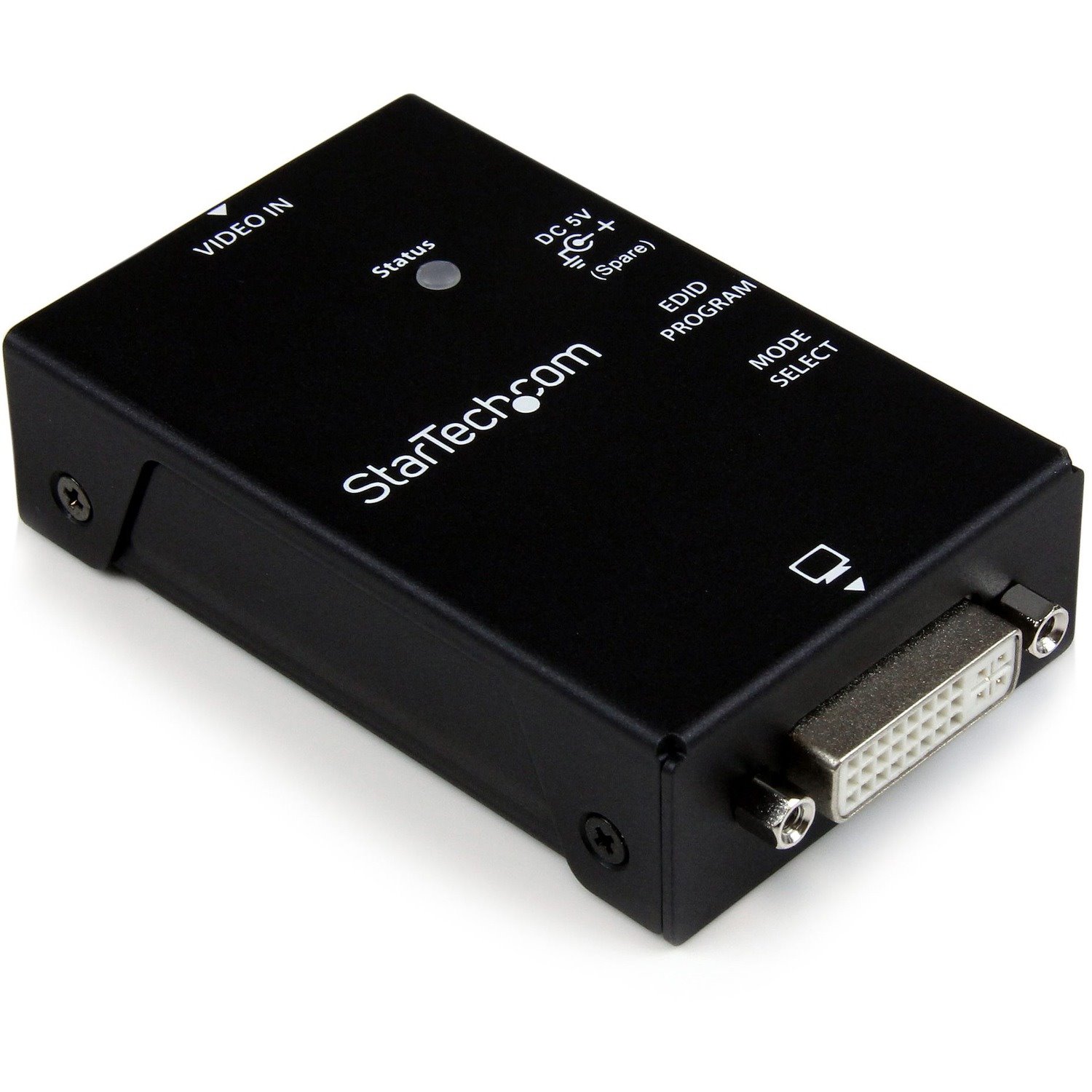

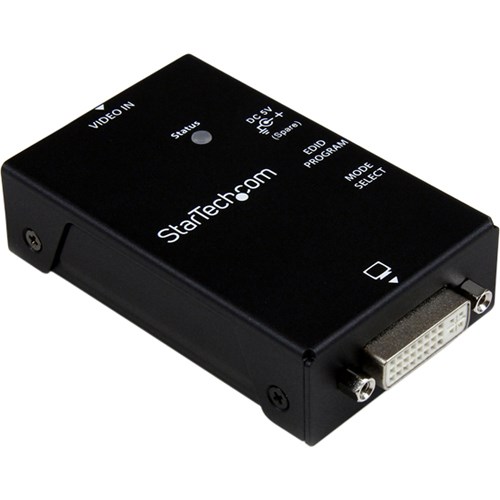

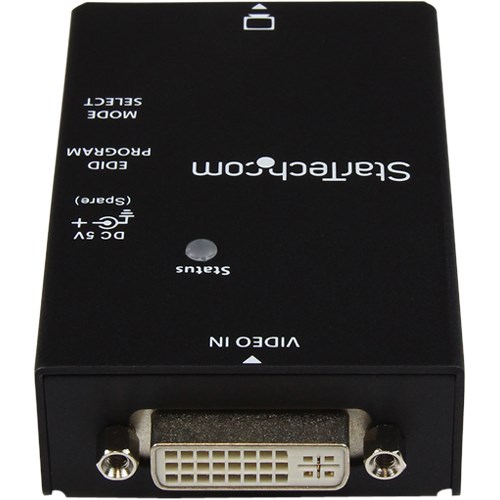

The VSEDIDDVI DVI EDID Emulator enables you to capture and retain Extended Display Identification Data from a monitor, which can then be connected to the video signal source (Video Extender, KVM Switch, etc.) to pass the EDID information and ensure the proper video settings are maintained.
EDID information contains important display settings such as maximum image size, color characteristics, factory pre-set timings, frequency range limits, etc., and since most video extender systems don't offer EDID communication between the source and remote display, the DVI EDID Emulator is a perfect workaround for ensuring the optimum signal is provided to the display to help prolong the life of your displays.
This product is TAA compliant and backed by a Startech.com 2-year warranty with free lifetime technical support.
- Warranty
- Limited Warranty
- 3 Year
- Technical Information
- Functions
- Video Emulation
- Maximum Resolution
- 2560 x 1600
- Platform Supported
- PC
- Digital Signal
- Yes
- Interfaces/Ports
- Audio Line In
- No
- Audio Line Out
- No
- DVI
- Yes
- Number of DVI Outputs
- 1
- Physical Characteristics
- Color Family
- Black
- Product Color
- Black
- Height
- 22.9 mm
- Width
- 50.8 mm
- Length
- 78.7 mm
- Weight (Approximate)
- 123 g
- Miscellaneous
- Additional Information
- EDID Copy feature saves time by making sure your display works the way you want it
- Simple rotary switch enables you to quickly emulate the EDID settings that you want
- Sturdy steel enclosure provides durability for harsh environments
- Certifications & Standards
- CE
- FCC
- TAA Compliant
- Yes
- Environmentally Friendly
- Yes
- Environmental Compliance
- Restriction of Hazardous Substances (RoHS)
